Preheating plates

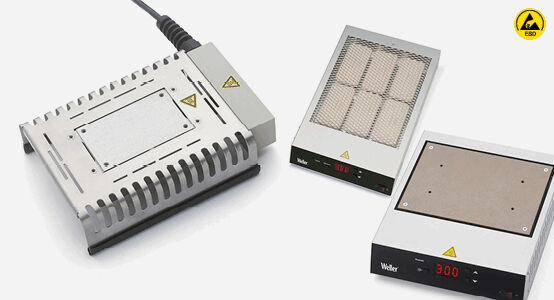

Preheating plates are used for the controlled and even heating of PCBs and components before the soldering process. They minimize the risk of thermal shocks and therefore help to protect temperature-sensitive components. Targeted preheating stabilizes the soldering process, which helps to improve soldering quality and reduce temperature-related process errors. Their use is particularly recommended for applications with high temperature stability requirements.





The image shows an electric heating element in rectangular shape. It has a metal surface with a grid. Below are buttons and a display for temperature indication.
Infrared preheating plate WHP 200
ESD / Power: 200 W / heated surface: 120 x 60 mm / Temperature range: 50 - 400 °C
WHP 200 infrared heating plate Weller
with Easy Fix PCB holder
heated surface 120 x 60 mm, 200 W / 230V
Temperature range 50 ° C – 400 ° C

Product No.: 533.716.99
910,25 EUR
excl. 19% tax
Show product
The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
WHP 1000 Preheating plate
ESD / Power: 1000 W / heated surface: 220 x 150 mm / Temperature range: 50 - 300 °C
WHP 1000 preheating plate Weller
heated area 220 x 150 mm, ESD-safe
Temperature range 50 ° C - 300 ° C
1000W / 230V

Product No.: 533.648.99
1.909,50 EUR
excl. 19% tax
Show product
The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
ESD / Power: 80 W / heated surface: 80 x 50 mm / Temperature range: 50 - 200 °C
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C

Product No.: 527.028.99
527,40 EUR
excl. 19% tax
Show product
The image shows a rectangular, silver-colored device with cooling fins and an attached cable connection. It has a smooth, flat surface in the middle and yellow warning symbols.
WXHP 120 Preheating plate 120 W
ESD / Power: 120 W / heated surface: 80 x 50 mm / Temperature range: 50 - 200 °C
Preheating plate WXHP 120
Temperature range 50 °C - 200 °C, 120 W, 24 V
Can be connected to WX 1, WX 2, WXD 2,
WXA 2, WXR 3

Product No.: 527.029.99
581,94 EUR
excl. 19% tax
Show product
The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
Preview: The image shows an electrical device with a rectangular casing. At the top is a grid, beneath which lie three uniform objects. On the front, there is a digital display.
Preview: The image displays a square heating device with a metal grid on top and a digital display. It features a triangular warning sign and controls at the bottom.
Infrared preheating plate for WHA 3000
ESD-protective
WHP 3000 Infrared heating plate 600W
ESD / Power: 600 W / heated surface: 120 x 190 mm / Temperature range: 50 - 400 °C
WHP 3000 Infrared heating plate 1200W
ESD / Power: 1200 W / heated surface: 190 x 245 mm / Temperature range: 50 - 400 °C

2 Products
Product No.: 533.386.99
from 1.553,45 EUR
excl. 19% tax
to the product family
1 to 5 (from a total of 5)
