Digital soldering bath FX 305

Name: Digital soldering bath FX 305
SKU: HA-FX305-20
Price: 710.00 EUR
Availability: InStock

ArticleNo: HA-FX305-20

dpvlink:

32060

Further product information

Availability: at short notice

at short notice

NEW

710,00 EUR
per PCE

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

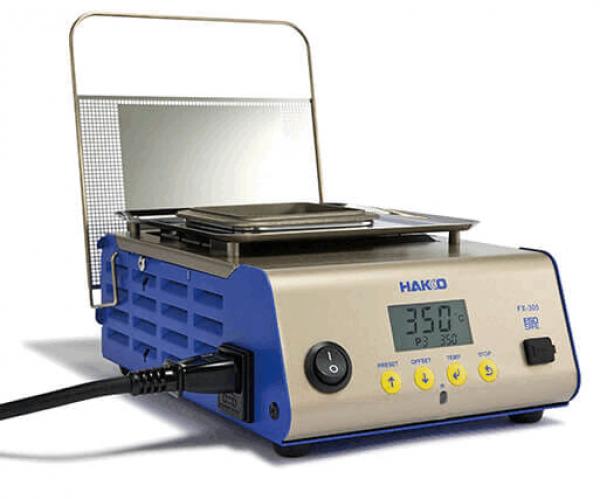

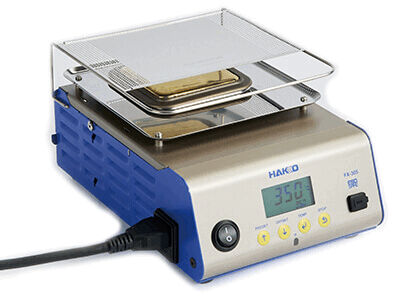

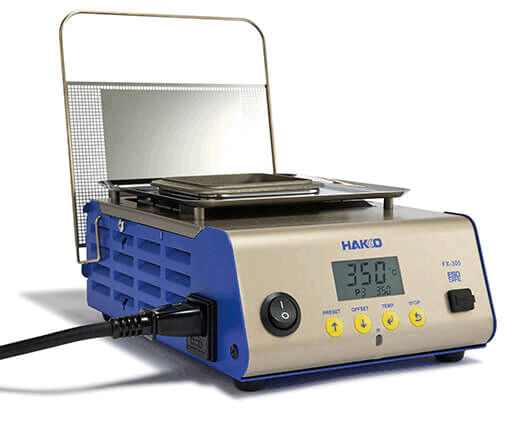

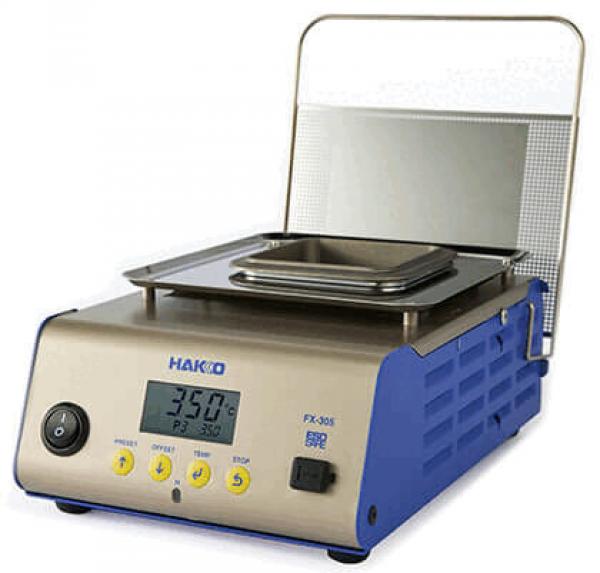

Digital soldering bath FX 305

The Digital FX 305 soldering bath is a high-quality, high-performance tool for professional soldering applications. It has a power output of 640 watts and operates on a mains voltage of 230 volts. The compact dimensions, with a width of 162 mm, a height of 136 mm, and a length of 245 mm, make it a practical helper in any workshop.

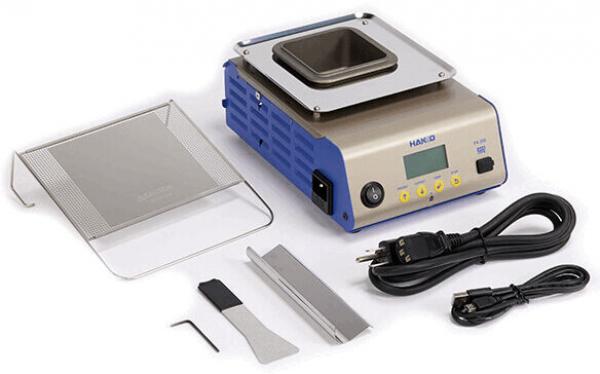

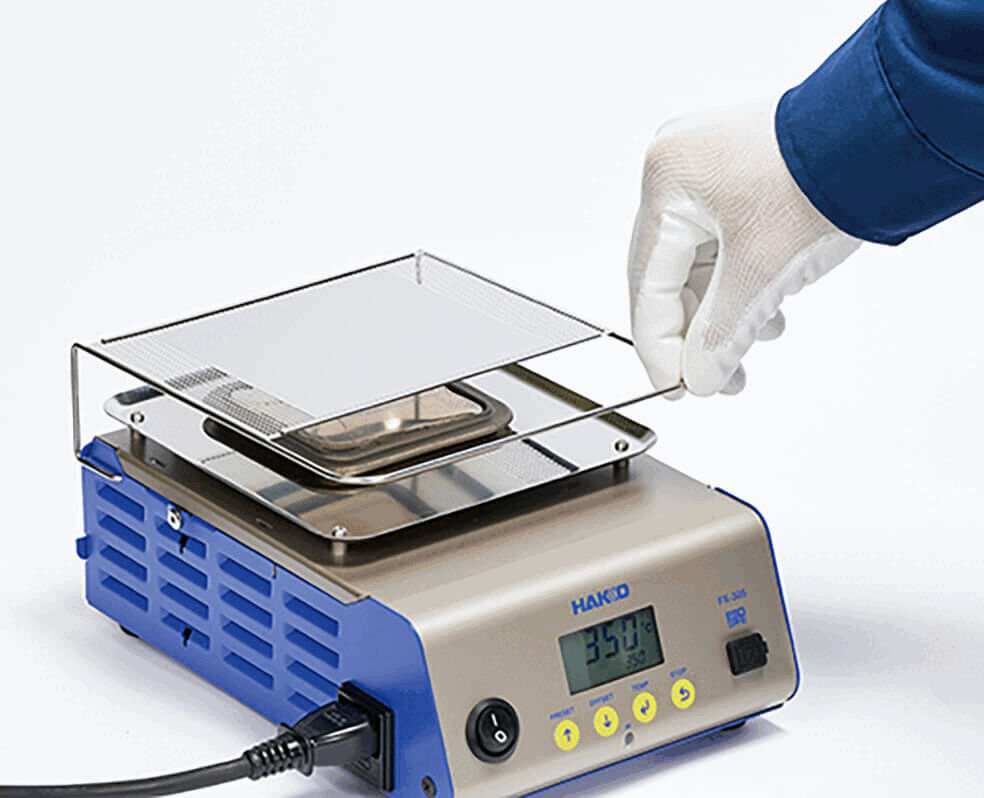

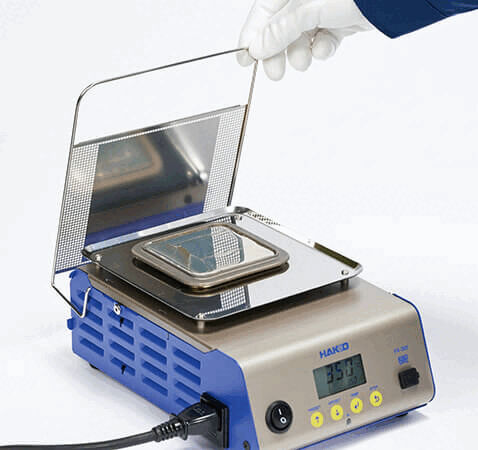

The temperature range of the device can be adjusted from 50 to 530 °C, allowing for flexible adaptation to various soldering tasks. Included in the delivery are the FX 305 Digital soldering bath, a replaceable A 5068 solder pot with special coating, a residual solder container, a spatula, and a solder pot cover. The solder pot measures 75 x 75 x 42.5 mm and weighs 1.9 kg, making it ideal for extensive soldering work.
This product sets new standards in terms of efficiency and user-friendliness, making it an excellent choice for technical purchasing in industry and crafts.

Details

Power Power: 640 W
Voltage Voltage: 230 V
Height Height: 136 mm
Length Length: 245 mm
Width Width: 162 mm
Temperature range Temperature range: 50 - 530 °C

Show accessories

Accessories

NEW

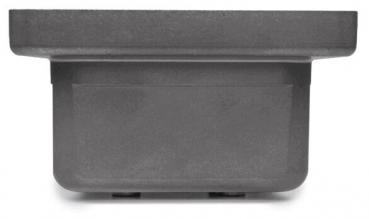

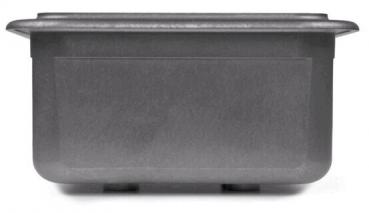

Interchangeable crucible small for soldering...

HAKKO crucible
Temperature range: 50 - 500°C
Dimensions 75 x 75 x 42.5 mm, capacity 1.9 kg
for HAKKO soldering bath FX 305

dpvlink

31952

106,00 EUR

Show product

NEW

Interchangeable crucible big for soldering...

HAKKO crucible
Temperature range: 50 - 450°C
Dimensions 100 x 100 x 53 mm, capacity 2.75 kg
for HAKKO soldering bath FX 305

dpvlink

31952

109,00 EUR

Show product

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Digital soldering bath FX 305

Making the “impossible” possible

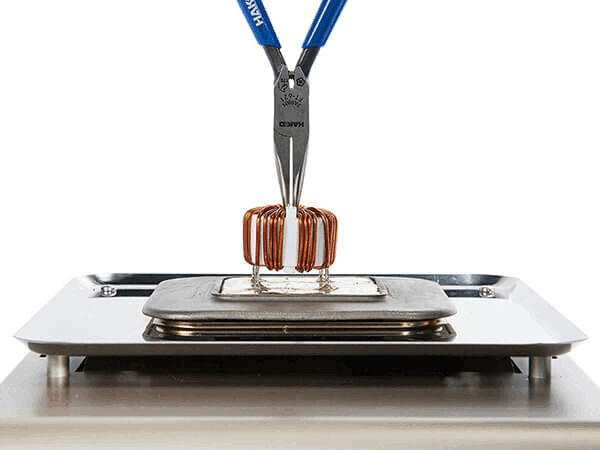

The FX-305 soldering bath stands for maximum flexibility and performance: thanks to interchangeable soldering pots, the soldering bath can be perfectly adapted to any application – from fine wire to solid cable bundles.

With temperatures of up to 530 °C and a 60% shorter heating time, it offers top performance with maximum efficiency.

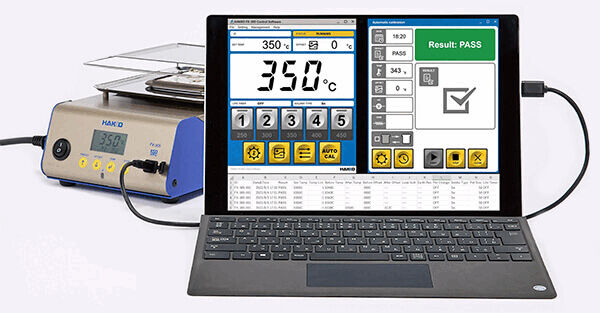

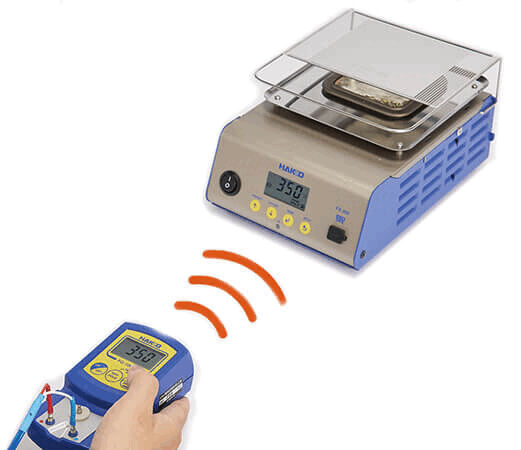

With digital process data acquisition and sensor monitoring, the FX-305 meets the latest traceability standards – and reliably masters all the challenges of everyday professional soldering.

Power

Significantly increased heating power—a high-performance heater enables a quick start and a maximum temperature of 530°C.


A high-performance heater is built in

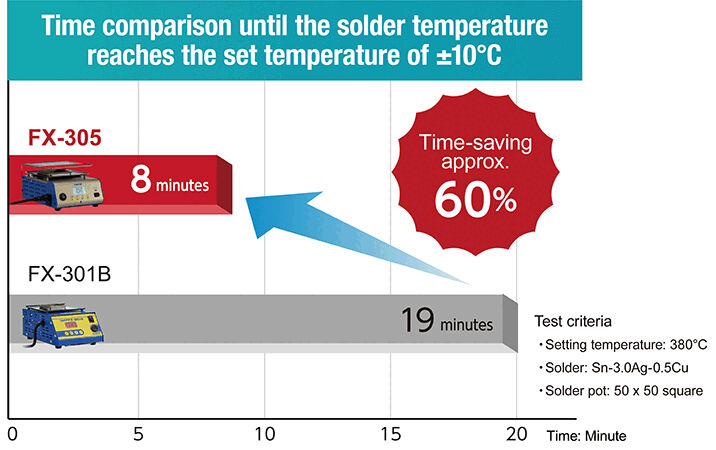

The time required for solder melting is reduced by almost 60% compared to the FX 301B solder bath. High performance prevents the temperature of the solder gel from dropping during continuous operation.


The maximum temperature is 530°C

The immersion time required to remove the enamel layer can be reduced by using high temperature settings. However, the 530°C setting is only possible with the 50x50 mm soldering pot.
