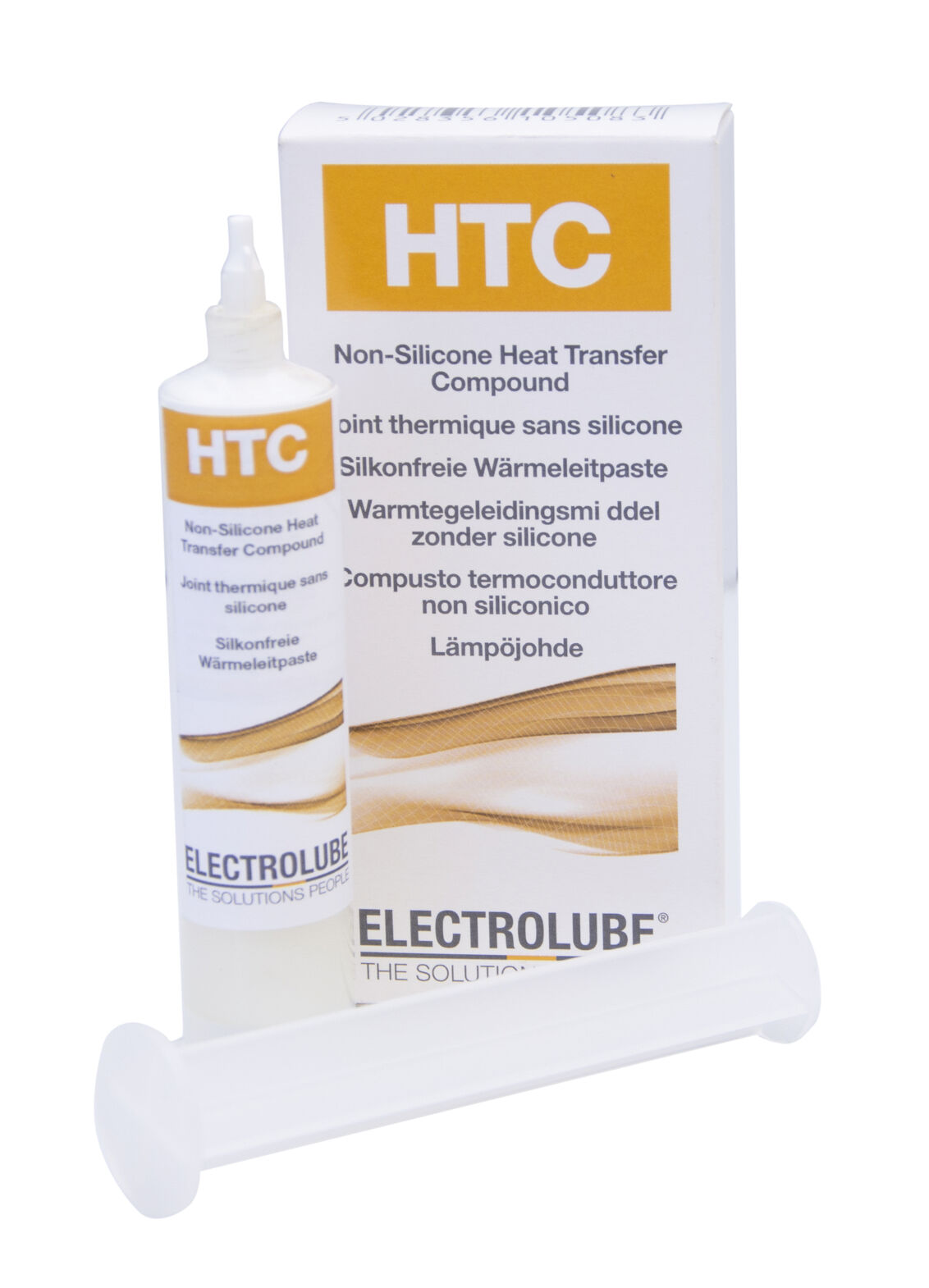

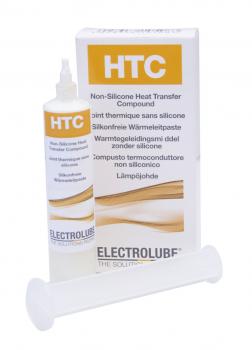

The image displays a tube of thermal paste and its packaging. The tube is white with yellow lettering that reads "HTC". Adjacent to it, the packaging also features prominent yellow text describing the product.

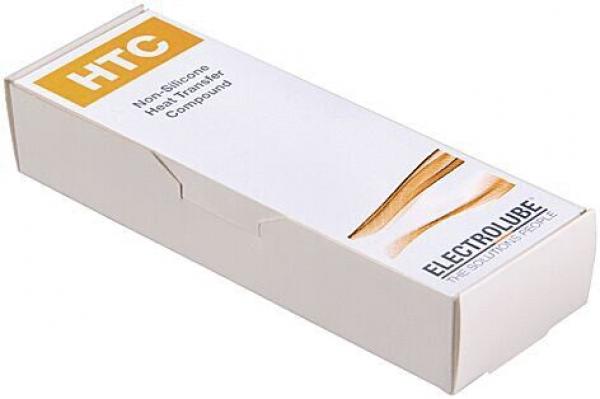

The image shows a simple, rectangular white packaging. On the top side in orange is "HTC" and below it, "Non-Silicone Heat Transfer Compound". Below that reads "ELECTROLUBE".

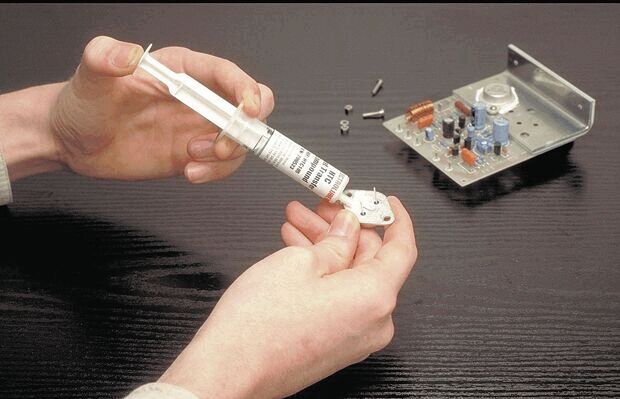

A person's hands hold a small plastic body while they align a syringe with a silvery substance on it. In the background, there is an electronic component with many small parts.
Preview: The image displays a tube of thermal paste and its packaging. The tube is white with yellow lettering that reads "HTC". Adjacent to it, the packaging also features prominent yellow text describing the product.
Preview: The image shows a simple, rectangular white packaging. On the top side in orange is "HTC" and below it, "Non-Silicone Heat Transfer Compound". Below that reads "ELECTROLUBE".
Preview: A person's hands hold a small plastic body while they align a syringe with a silvery substance on it. In the background, there is an electronic component with many small parts.
Silicone-free thermally conductive paste HTC35SL 35 ml
(Product No.: HTC35SL)
The image displays a tube of thermal paste and its packaging. The tube is white with yellow lettering that reads "HTC". Adjacent to it, the packaging also features prominent yellow text describing the product.
The image shows a simple, rectangular white packaging. On the top side in orange is "HTC" and below it, "Non-Silicone Heat Transfer Compound". Below that reads "ELECTROLUBE".
A person's hands hold a small plastic body while they align a syringe with a silvery substance on it. In the background, there is an electronic component with many small parts.
Mobile Preview: The image displays a tube of thermal paste and its packaging. The tube is white with yellow lettering that reads "HTC". Adjacent to it, the packaging also features prominent yellow text describing the product.
Mobile Preview: The image shows a simple, rectangular white packaging. On the top side in orange is "HTC" and below it, "Non-Silicone Heat Transfer Compound". Below that reads "ELECTROLUBE".
Mobile Preview: A person's hands hold a small plastic body while they align a syringe with a silvery substance on it. In the background, there is an electronic component with many small parts.
Notice / Inquire

Silicone-free thermally conductive paste HTC35SL 35 ml

dpvlink:
2788
Packaging type:
syringe
Content:
35 ml
PU:
1 piece
Properties:
Further product information

Delivery time! Delivery time!
18,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Silicone-free thermally conductive paste HTC35SL 35 ml

The silicone-free thermal paste HTC35SL from Electrolube is specifically designed for use in areas where an efficient and reliable thermal connection between electronic components is necessary. This high-quality paste is excellent for application on diodes, transistors, thyristors, heat sinks, silicon rectifiers, semiconductors, thermostats, power resistors, and coolers. It is characterized by its excellent anti-creep properties and a high thermal conductivity of 0.9 W/mK.
The paste is easy to use, economical, and suitable for a wide operating temperature range from -50 °C to +130 °C. Additionally, it exhibits low weight loss due to volatilization and is of low toxicity.
The shelf life is three years with proper storage. The HTC35SL is delivered in a 35 ml syringe and is only available in complete packaging units.
Packaging type
Packaging type
syringe
Content
Content
35 ml
PU
PU
1 piece
Shelf life
Shelf life
3 years , when stored properly
Pictograms
GHS09
Substances and mixtures that acutely or chronically endanger water bodies and thus the environment

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 583
Complete Catalog 2023 - 2024

Product Family

HTC / HTCP Silicone-free thermally conductive paste

Excellent anti-creep properties

Thermal conductivity: 2.50 W/m.K (HTCP) / 0.9 W/m.K (HTC)

Operating temperature range: -50 °C to +130 °C

Low weight loss due to volatilization

White coloring for easy identification of treated parts

Low toxicity

Economical and easy to use


Article image
Article description
ESD
Packaging type
Content
PU
Large container
Price
Compare
HTC02S - Silicone-free thermally conductive paste HTC02S 2 ml
HTC02S
Silicone-free thermally conductive paste HTC02S 2 ml
syringe
2 ml
10 piece

4,52 EUR
-26%
HTC10S - Silicone-free thermally conductive paste HTC10S 10 ml
HTC10S
Silicone-free thermally conductive paste HTC10S 10 ml
syringe
10 ml
1 piece

RRP 7,35 EUR
Only 5,44 EUR
HTC20S - Silicone-free thermally conductive paste HTC20S 20 ml
HTC20S
Silicone-free thermally conductive paste HTC20S 20 ml
syringe
20 ml
1 piece

10,76 EUR
HTCP20S - Silicone-free thermally conductive paste HTCP20S 20 ml
HTCP20S
Silicone-free thermally conductive paste HTCP20S 20 ml
syringe
20 ml
1 piece

25,80 EUR
HTC35SL - Silicone-free thermally conductive paste HTC35SL 35 ml
HTC35SL
Silicone-free thermally conductive paste HTC35SL 35 ml
syringe
35 ml
1 piece

18,35 EUR
HTC700G - Silicone-free thermally conductive paste HTC700G 700 g
HTC700G
Silicone-free thermally conductive paste HTC700G 700 g
cartridge

1 piece

67,45 EUR
HTC01K - Silicone-free thermally conductive paste HTC01K 1 kg
HTC01K
Silicone-free thermally conductive paste HTC01K 1 kg
container

4 piece
1 kg
79,25 EUR
