PCB boxes/L-profile holders/Plug-in boards

The product group includes various holding systems for upright storage and safe handling of PCBs - including L-stands, plug-in boards with a dimpled structure and standardized PCB holders. Depending on the version, the systems differ in design and fixing mechanism and cover different requirements in electrostatically protected areas (EPA).

All variants enable structured, mechanically gentle organization of electronic assemblies - for transport, interim storage or provision, for example. Manufactured from dissipative materials in accordance with DIN EN 61340-5-1, they help to dissipate electrostatic charges in a controlled manner and prevent ESD-related damage.

The image displays a rectangular, black foam pad with many parallel grooves. On the left side, there is a small green circuit board protruding from the foam.
PCB holder made of PE foam
ESD / Length : 355 mm / Width : 255 mm / Height : 25 mm / Groove number: 25 / Groove width: 3 mm / Groove depth: 12 mm
PCB holder made of PE foam
Dimensions: 355 x 255 x 25 mm, 2 corners sloped
slot width 3 mm, slot depth 12 mm
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 4550.25.0255.LP
8,65 EUR
excl. 19% tax
Show product
The image shows a rectangular, black plate with a grid pattern. On it is a green, thin piece with square fields, which is slightly tilted.
Preview: The image shows a rectangular, black plate with a grid pattern. On it is a green, thin piece with square fields, which is slightly tilted.
Preview: The image displays multiple green circuit boards, upright on a black, rubberized holder. The holder features a textured surface made up of small bumps.
Preview: The image shows a simple, U-shaped metal bracket. It has two open ends that are bent downwards and could be used for fastening or as a mount.
Plug-in boards (square knobs)
ESD-protective
Plug-in board (knobbed)
ESD / Length : 352 mm / Width : 252 mm / Height : 15 mm / PCB thickness: 1.7 mm / Knob length: 8 mm / Knob width: 8 mm / Knob height: 6 mm
Plug-in board (knobbed)
ESD / Length : 557 mm / Width : 357 mm / Height : 22 mm / PCB thickness: 2.5 mm / Knob length: 14 mm / Knob width: 14 mm / Knob height: 8 mm
Handle, stainless for plug-in board

3 Products
Product No.: 053210
from 9,28 EUR
excl. 19% tax
to the product family
The image displays a black, rubberized mat with many small, round bumps. On it lies a green circuit board, which stands out due to its rectangular shape and several patterns.
Plug-in board (knobbed)
ESD
ESD plug-in board (knobbed)
Dimensions: 357 x 257 x 14 mm, knobs round
Diameter: 16 x 6 mm, max. PCB thickness 1.6 mm
electrostatically volume conductive
++ Item no. 2535.000.992 ++

Product No.: 053211
7,20 EUR
excl. 19% tax
Show product
The image shows a black, rectangular object with a slanted back wall. The surface is ridged, giving it texture. It is often used as a stand or holder.
Preview: The image shows a black, rectangular holder with a slanted, green component. The holder has a textured surface and serves to support the component.
Preview: The image shows a black, rectangular object with a slanted back wall. The surface is ridged, giving it texture. It is often used as a stand or holder.
L-profile PCB holder
ESD-protective
L-profile holder size 1 / small
ESD / Length : 208 mm / Width : 272 mm / Height : 93 mm
L-profile holder size 2 / large
ESD / Length : 355 mm / Width : 268 mm / Height : 128 mm

2 Products
Product No.: 052.730
from 17,15 EUR
excl. 19% tax
to the product family
The image shows a green circuit board, designed with many small components, wires, and slots. It is tilted on a black, sturdy surface.
Preview: The image shows a green circuit board, designed with many small components, wires, and slots. It is tilted on a black, sturdy surface.
Preview: The image displays a green circuit board with numerous small components and connections, angled on a black, grooved holder.
PCB holder "tray type 760 and 761"
ESD-protective
PCB holder "tray type 760"
ESD / Length : 500 mm / Width : 175 mm / PCB thickness: 3.0 mm / Spacing: 18.75 mm
PCB holder "tray type 761"
ESD / Length : 582 mm / Width : 215 mm / PCB thickness: 3.2 mm / Spacing: 25 mm

2 Products
Product No.: 052.760
from 67,40 EUR
excl. 19% tax
to the product family

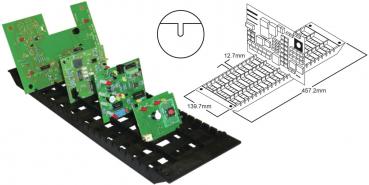

The image displays multiple circuit boards of various sizes on a black holder. Next to the boards, there is a technical drawing featuring dimensions and a cross-section.
PCB holder "tray type 751"
ESD
PCB holder "tray type 751"
Dimensions: 140 x 465 mm, 25 rows / grid 15.6 mm
Max. PCB thickness 3 mm, groove depth 7.5 mm
Temperature resistance up to 135 °C
electrostatically dissipative (DIN EN 61340-5-1)

Product No.: 052.751
84,50 EUR
excl. 19% tax
Show product
1 to 6 (from a total of 6)
