PCB holders cab

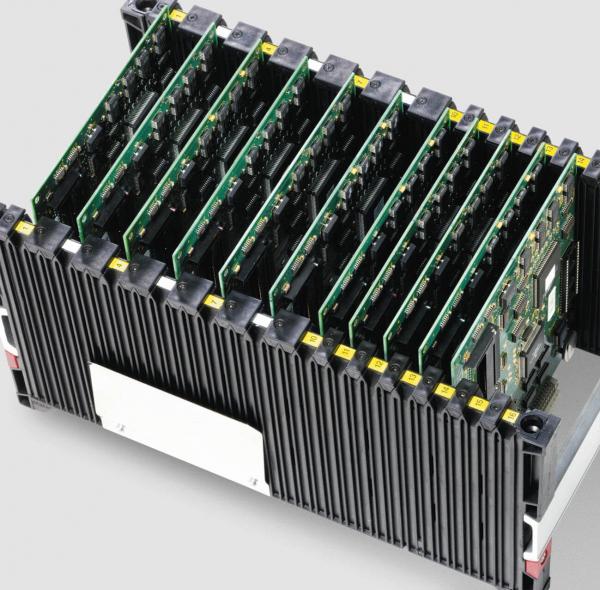

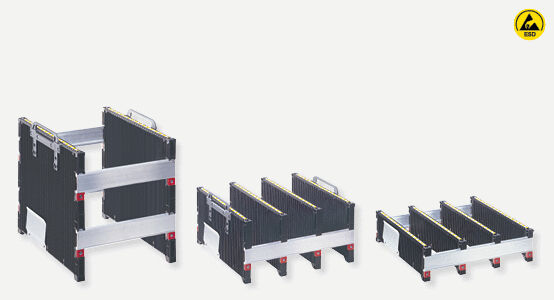

The electrostatically conductive PCB holders from Cab offer a well thought-out and flexible concept. These PCB holders are used in production, in the test bay and in the warehouse. They can be mounted both vertically and horizontally. The system is completely variable in width and can be fitted to suit all PCB sizes.

The PCB holders from Cab enable the safe storage and transportation of PCBs. In combination with Euro containers, the PCBs are also protected against physical damage, contamination and the effects of moisture.

Test the PCB holders now





  1. Handles
    They facilitate the transport and especially the removal of the PCB holders out of the transport boxes. For saving space in the height they are retractable.
  2. Clamp
    It can be mounted on the side of every PCB holder. The clamp serves to fix accompanying documents like parts lists and order forms.
  3. Bearing rail
    It serves to support heavy and large PCB and protects them from slipping down while being transported.
  4. Profile rail
    It is made of aluminium extruded profile and is available with every requested length.

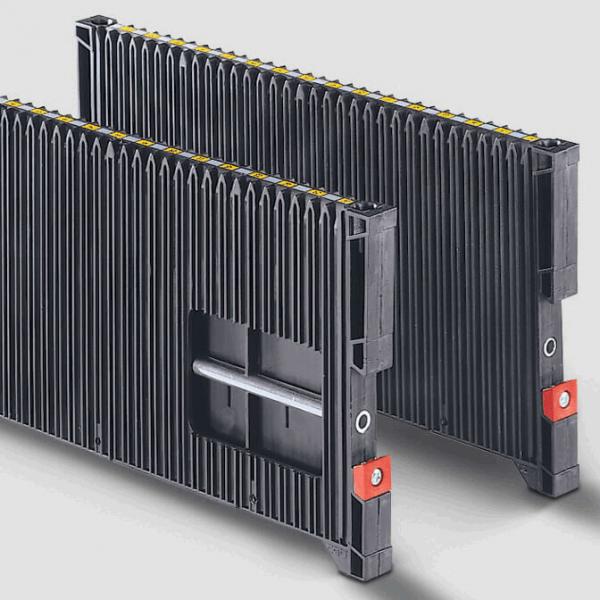

  5. Partitions
    The double-walled partitions are extremely stable and torsion-resistant due to the sandwich structure.
  6. Free space
    For preventing damages of protruding components the bearing edge lies 17 mm above the table surface.

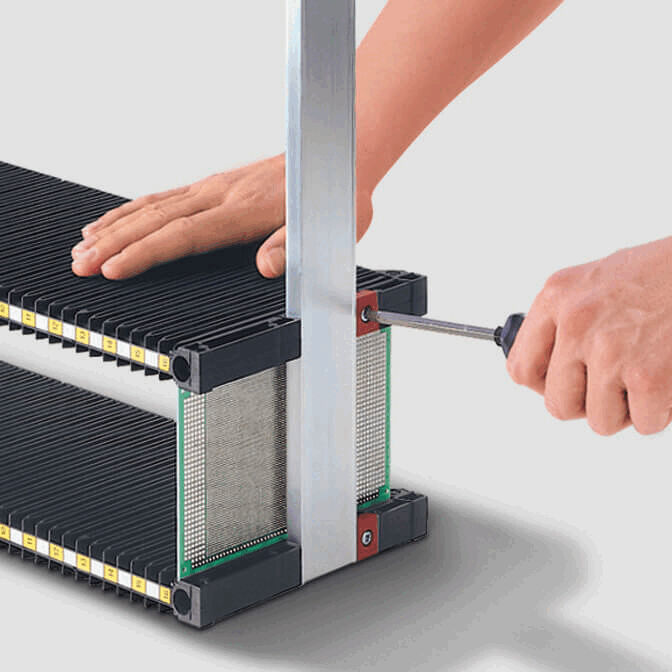

Quick and simple assembly

Transport container

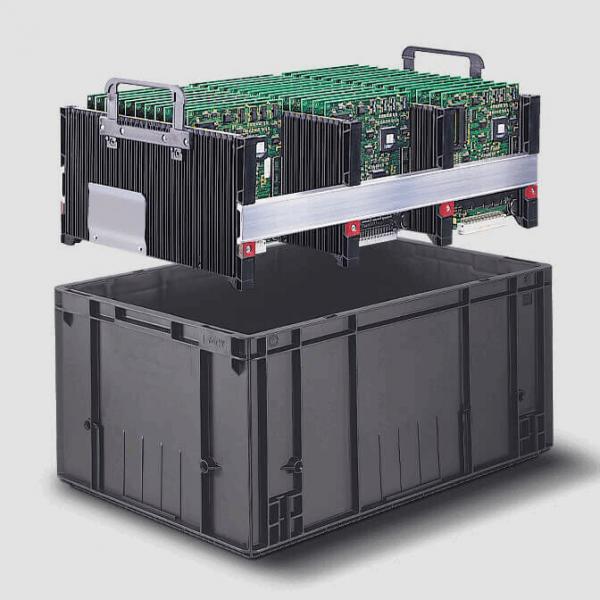

The PCB holder can be used for the transport in Euro containers 600 x 400 mm or 400 mm x 300 mm.

Stable and torsion-resistant

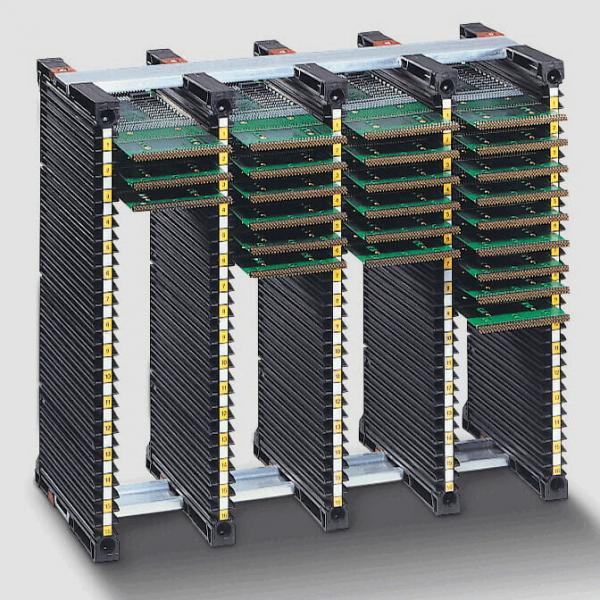

Standing vertically

Equipped PCBs must be stored horizontally before soldering. For this purpose, the PCBs be placed vertically.

Groove lock

Technical data partition wall 100/180/300:

Technical data:

100

180

300

Material

polypropylene

Color

black

Surface resistance

in accordance with DIN EN 61340-5-1 < 109

Groove width

2.8 mm

4 mm

3.5 mm

Groove depth

2 mm

2.5 mm

2.5 mm

Numbers

32

PCB distance

10 mm

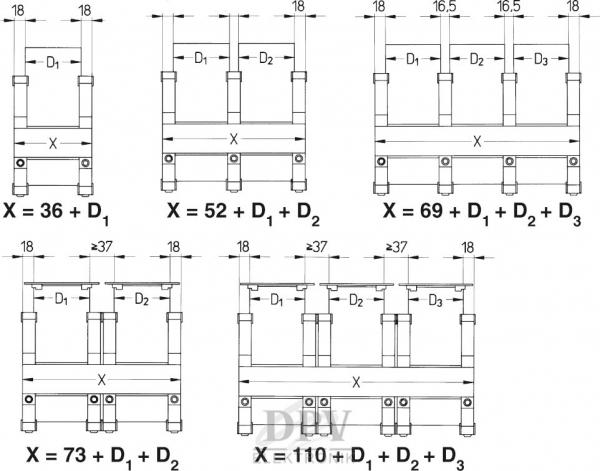

The length of the profile (dimension X) is calculated according to the indications below.
Dimension D = PCB width
Dimension X = length of profile rail

The image shows a rectangular, gray container with vertical grooves. There are red elements at the corners. The surface texture is uniform and sturdy.
Partition 180
ESD-protective
Partition 180, with holes for groove lock
ESD / Version: unstrengthened / Length : 359 mm / Height : 180 mm / Width : 21 mm / Groove width: 4.0 mm / Groove depth: 2.5 mm
Partition 180, with holes for groove lock
ESD / Version: strengthened / Length : 359 mm / Height : 180 mm / Width : 21 mm / Groove width: 4.0 mm / Groove depth: 2.5 mm

2 Products
Product No.: 8910060
from 26,00 EUR
excl. 19% tax
to the product family
The image shows a long, rectangular, black container. The surface is ribbed and has red reflectors at the ends. The container is sturdy and has an industrial aesthetic.
Partition 100
ESD-protective
Partition 100
ESD / Version: unstrengthened / Length : 359 mm / Height : 100 mm / Width : 20 mm / Groove width: 2.8 mm / Groove depth: 2.0 mm
Partition 100, reinforced
ESD / Version: strengthened / Length : 359 mm / Height : 100 mm / Width : 20 mm / Groove width: 2.8 mm / Groove depth: 2.0 mm
Partition 100, with holes for groove lock
ESD / Version: with holes for groove lock / Length : 359 mm / Height : 100 mm / Width : 20 mm / Groove width: 2.8 mm / Groove depth: 2.0 mm

3 Products
Product No.: 8910050
from 19,90 EUR
excl. 19% tax
to the product family
The image displays an elongated, rectangular piece of metal in silver color, equipped with a handle at one end. It appears smooth and has a clear, simple shape.
Profile rails
ESD-protective
Profile rail, length 252 mm
ESD / Length : 252 mm / Material: aluminum / Color: silver
Profile rail, length 547 mm
ESD / Length : 547 mm / Material: aluminum / Color: silver
Profile rail, length 1000 mm
ESD / Length : 1000 mm / Material: aluminum / Color: silver
Profile rail, length 2000 mm
ESD / Length : 2000 mm / Material: aluminum / Color: silver
Profile rail cutting
ESD / Material: aluminum / Color: silver

5 Products
Product No.: 8910547
from 3,70 EUR
excl. 19% tax
to the product family
The image shows a rectangular, black-gray structure with vertical grooves. At the corners, there are red elements visible that hold the entire object together.
Preview: The image displays a rectangular, black plastic plate with vertical grooves. At the corners, there are red fasteners that stabilize the structure. It appears sturdy and functional.
Preview: The image shows a rectangular, black-gray structure with vertical grooves. At the corners, there are red elements visible that hold the entire object together.
Partition 300
ESD-protective
Partition 300, with holes for groove lock
ESD / Version: with holes for groove lock / Length : 357 mm / Width : 303 mm / Height : 20 mm / Groove width: 3.5 mm / Groove depth: 2.5 mm
Partition 300
ESD / Version: unstrengthened / Length : 357 mm / Width : 303 mm / Height : 20 mm / Groove width: 3.5 mm / Groove depth: 2.5 mm

2 Products
Product No.: 8912049
from 30,50 EUR
excl. 19% tax
to the product family
The image displays a foldable, square suitcase or container with smooth, black walls and gray aluminum frames. It has two handle recesses and can be used for storage.
Preview: The image shows a shelf or a rack with several horizontal rails separated by vertical rods. The frame is made of aluminum, and the rods are black with a yellow edge.
Preview: The image shows a black storage box with multiple compartments divided by vertical dividers. The top edge has yellow markings, and the box stands stable on a flat surface.
Preview: The image displays a foldable, square suitcase or container with smooth, black walls and gray aluminum frames. It has two handle recesses and can be used for storage.
Test sets for cab PCB holder
ESD-protective
PCB Test set 100
PCB holder test set 180
PCB holder test set 300

3 Products
Product No.: 8910065
from 96,00 EUR
excl. 19% tax
to the product family
The image shows two black plastic handle strips arranged side by side. Next to them are four screws. The handles have a rectangular shape, ideal for assembly.
Carrying handles 100, 180 / 300
ESD-protective
Carrying handle for partition 100
ESD / Color: black
Carrying handle for partition 180 / 300
ESD / Color: black

2 Products
Product No.: 8910097
9,96 EUR
excl. 19% tax
to the product family
The image shows two black parts. On the left is a flat, trapezoidal block with a smooth surface. On the right is a screw with a conical head and a spiral shaft.
Preview: The image shows two black parts. On the left is a flat, trapezoidal block with a smooth surface. On the right is a screw with a conical head and a spiral shaft.
Preview: The image shows two black objects: on the left, a flat, wide spacer in a V-shape; on the right, a screw with a conical head and spiraling grooves.
Slot lock for partitions 100, 180, 300
ESD-protective
Groove lock 1, single (Pack = 100 pcs)
Groove lock 2, double (Pack = 100 pcs)

2 Products
Product No.: 8913916
from 52,50 EUR
excl. 19% tax
to the product family
The image displays a flat, rectangular metal piece with rounded corners. It has a shiny surface and two holes for mounting. Next to it are two silver screws.
Clamp with screws
Clamp

Product No.: 8910009
5,06 EUR
excl. 19% tax
Show product
The image displays a sturdy frame made of aluminum with two black brackets on the sides and two red elements. It is elongated and oriented horizontally.
Bearing rails 100, 180, 300
ESD-protective
Bearing rails for partition 100
Bearing rails for partition 180
Bearing rails for partition 300

3 Products
Product No.: 8912005
from 26,00 EUR
excl. 19% tax
to the product family
Positioning stripes 20 (1 sheet = 12 stripes)
Positioning stripes 20 (12 pieces)

Product No.: 8910013
2,79 EUR
excl. 19% tax
Show product
1 to 10 (from a total of 10)
