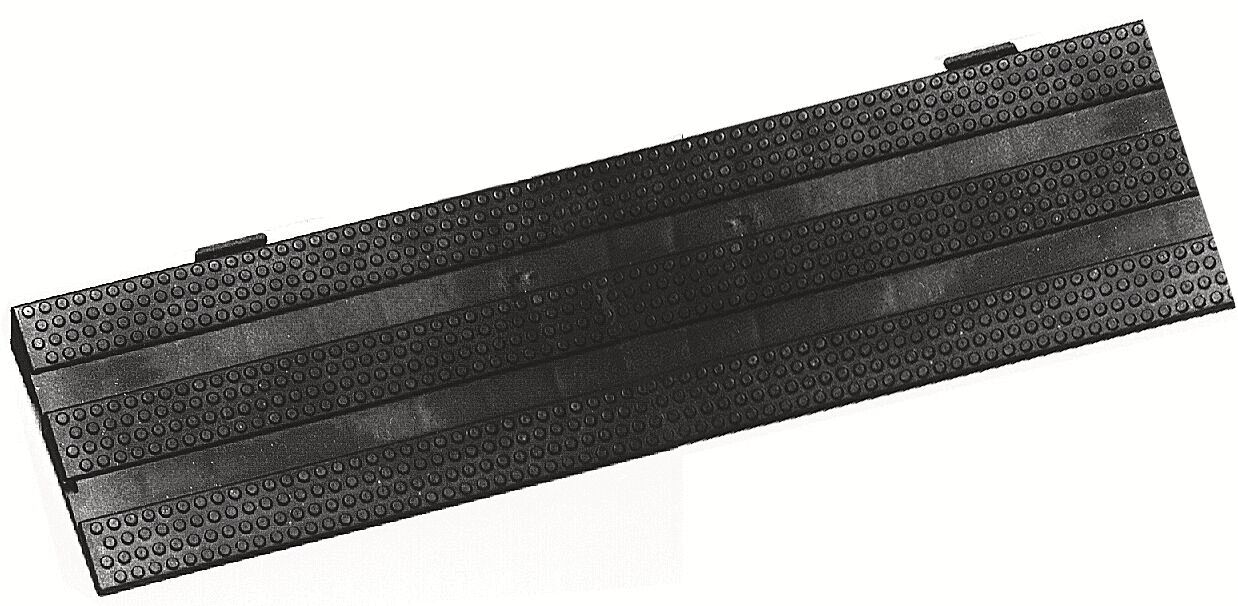

The image shows a long, black rubber mat with textured, rectangular elevations and grooves. It is uniformly flat and likely serves as a non-slip surface or for floor covering.
Final element
(Product No.: 022.605)
The image shows a long, black rubber mat with textured, rectangular elevations and grooves. It is uniformly flat and likely serves as a non-slip surface or for floor covering.

Final element

dpvlink:
3179
Length :
400 mm
Width :
120 mm
Color:
black
Properties:
Further product information

available available

Compare Compare
Notice / Inquire
Product Info

Final element

The end component, made of volume-conductive polypropylene, is specifically designed for use with the floor element 022.600. It measures 400 mm in length and 120 mm in width, and is available in black. This product complies with the ESD standard DIN EN 61340-5-1, making it ideal for use in electrostatically sensitive areas such as manufacturing and storage areas.

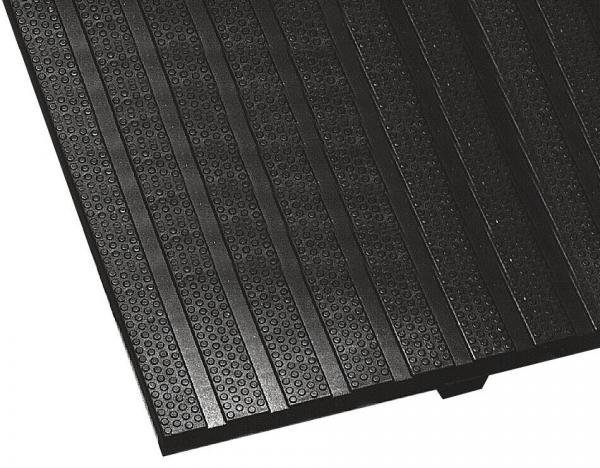

The electrostatically conductive floor elements offer a variety of design possibilities for work areas with their grid size of 800 x 400 mm. They are characterized by easy installation thanks to a special hook-in system that securely and immovably connects the elements. Furthermore, they ensure high load capacity and slip resistance.
The closed design of the floor elements underscores their practical applicability and durability in industrial environments.
Length
Length
400 mm
Width
Width
120 mm
Color
Color
black
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 159
Complete Catalog 2023 - 2024

Product Family

Floor elements

Electrostatically conductive floor elements for production and storage areas.

The spacing of 800 x 400 mm ensures optimal variation possibilites while laying out in working areas. All parts can be laid quickly and without slipping by a special interlocking system.

  • Material: Polypropylene (volume-conductive)
  • Easy installation
  • High load capacity, high surefootedness
  • Floor element closed version

In compliance with ESD standard DIN EN 61340-5-1



Article image
Article description
ESD
Length
Width
Thickness
Color
Price
Compare
022.600 - Floor element
022.600
Floor element
800 mm
400 mm
25 mm
black
-
022.605 - Final element
022.605
Final element
400 mm
120 mm

black
-
022.610 - Corner element
022.610
Corner element
120 mm
120 mm

black
-
