Vacuum-formed insert T-249 553 x 353 x 36 mm, 70 compartments ESD
Vacuum-formed insert T-249 553 x 353 x 36 mm, 70 compartments ESD

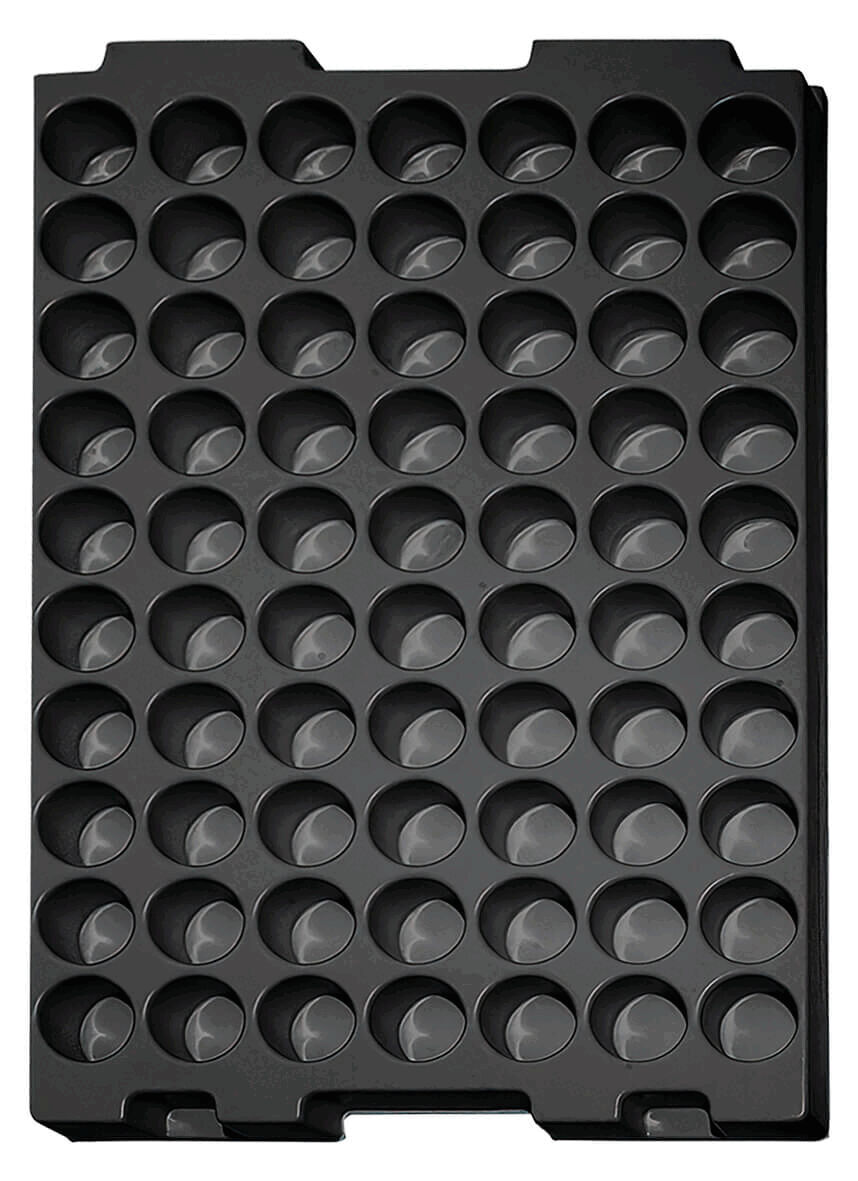

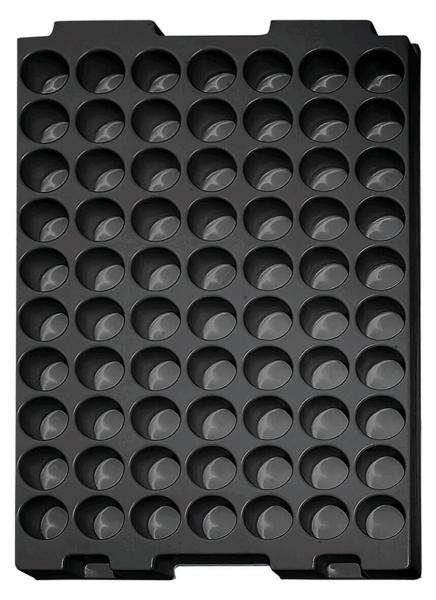

The deep-drawing insert T-249 from Licefa, with dimensions of 553 x 353 x 36 mm, is specifically designed for the secure storage and transport of sensitive electronic components. This insert features 70 compartments with a diameter of 42x32 mm each, made from electrically conductive material and complying with the standards of DIN EN 61340-5-1. The conductivity of the material ensures a surface resistance between 10^3 and 10^5 Ohm, providing protection against electrostatic discharges.The insert is also suitable for containers sized 600x400 mm and offers comfortable handling through reversible stacking and a practical handle recess. The minimum order quantity is 50 pieces. With these technical features, the deep-drawing insert T-249 is ideally suited for technical purchasers looking for high-quality solutions for ESD-safe storage.
Details
- Length Length
- 553 mm
- Width Width
- 353 mm
- Height Height
- 36 mm
- Conductivity Conductivity
- conductive
- Surface resistance Rs Surface resistance Rs
- 103 - 105 Ω
- Cavities Cavities
- 70
- Dimensions cavities Dimensions cavities
- 42x32 mm
- Suitable for containers Suitable for containers
- 600x400 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
