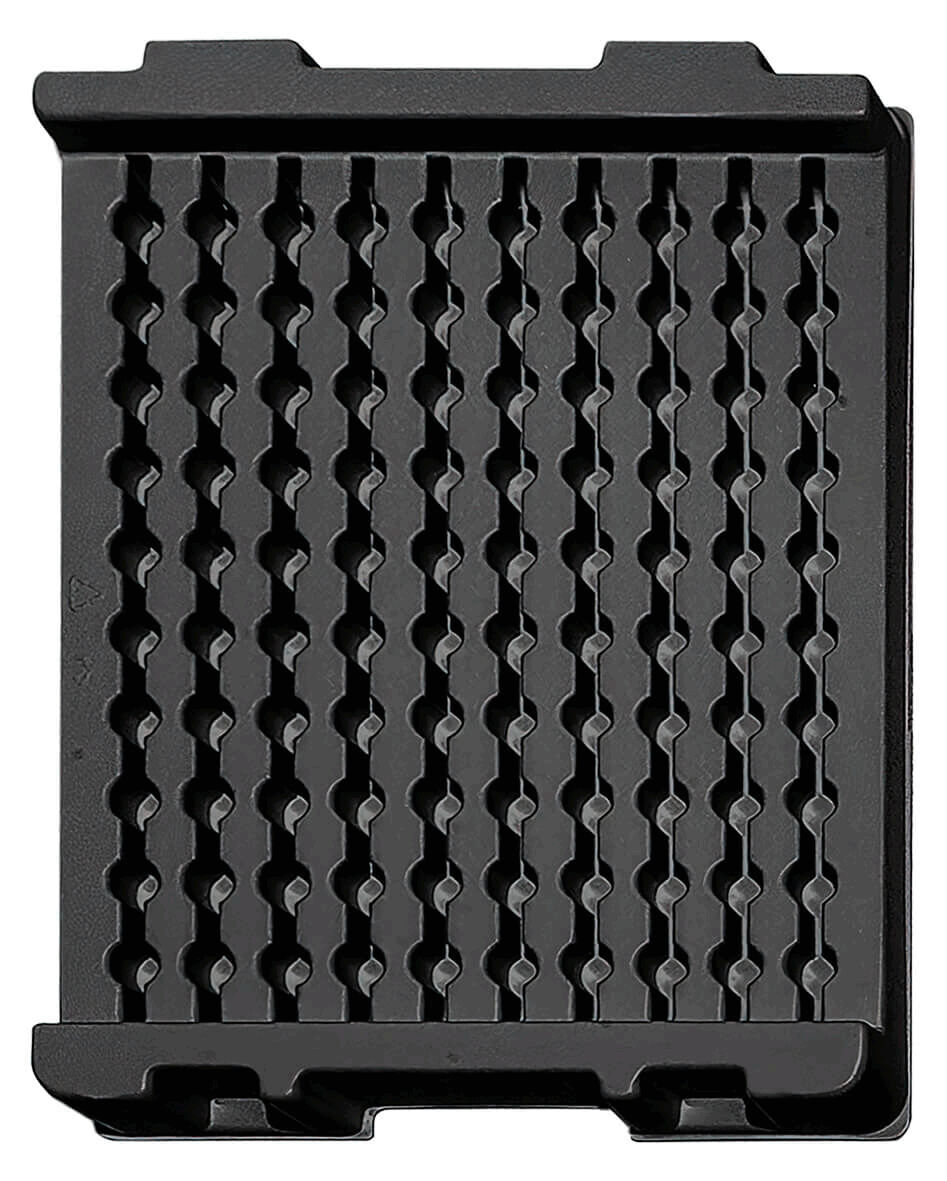

The image shows a rectangular, gray mat with a wavy, textured surface. Dimensions are provided on the sides: 242 mm and 330 mm. A measurement of 13.5 mm is also noted.
Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD
(Product No.: 032.T-278)
The image shows a rectangular, gray mat with a wavy, textured surface. Dimensions are provided on the sides: 242 mm and 330 mm. A measurement of 13.5 mm is also noted.

Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD

dpvlink:
18952
Length :
330 mm
Width :
242 mm
Height :
43 mm
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


Delivery time! Delivery time!

Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-278 330 x 242 x 43 mm, 100 compartments ESD

The Licefa ESD thermoformed insert T-278, measuring 330 x 242 x 43 mm, is designed for the safe storage and transportation of sensitive electronic components. It features 100 precisely crafted compartments, each with a diameter of 13.5 mm and a depth of 35 mm, providing optimal organization and protection. The insert is specifically developed for use in containers sized 400 x 300 mm and allows efficient space utilization through its reversible stacking.
An integrated handle recess facilitates handling. The conductivity of the insert meets the standards of DIN EN 61340-5-1, with a surface resistance between 10^3 and 10^5 Ohm, making it the ideal choice for ESD-sensitive environments. The minimum order quantity is 50 pieces, simplifying planning for larger projects or stock levels.
Length
Length
330 mm
Width
Width
242 mm
Height
Height
43 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
100
Dimensions cavities
Dimensions cavities
13.5x35 mm
Suitable for containers
Suitable for containers
400x300 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
