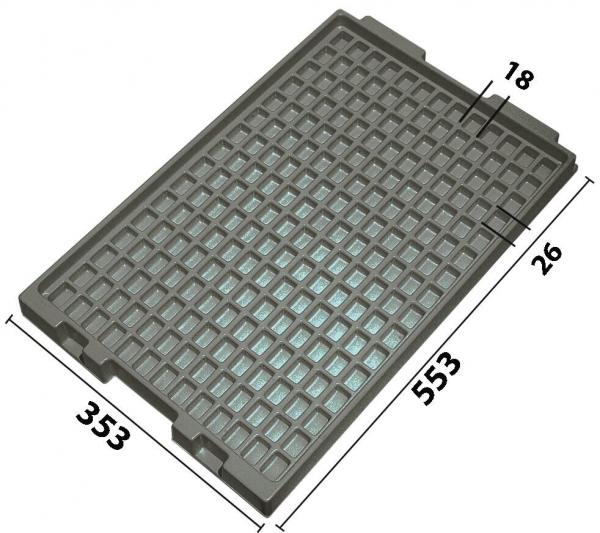

The image shows a rectangular gray plastic plate with a grid pattern. The plate measures: 553 mm long, 353 mm wide, and 18 mm thick. The corners are slightly rounded.
Vacuum-formed insert T-263 553 x 353 x 37 mm, 208 compartments
(Product No.: 032.T-263)

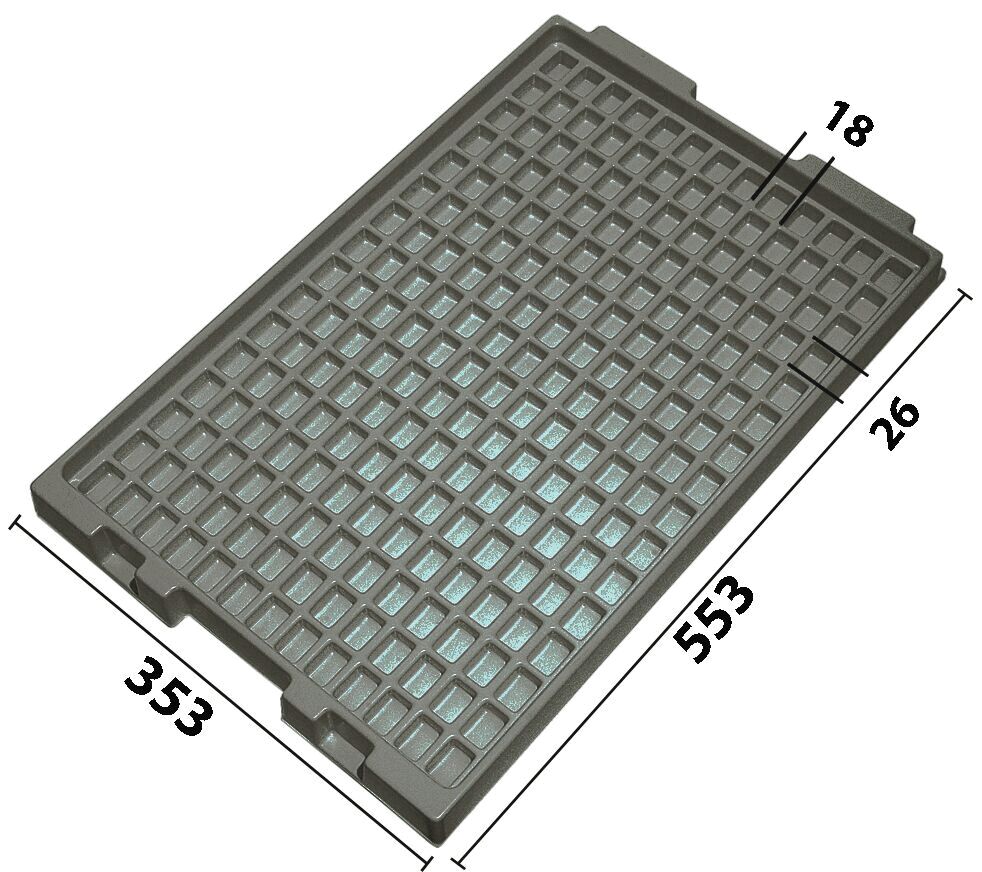

The image shows a rectangular gray plastic plate with a grid pattern. The plate measures: 553 mm long, 353 mm wide, and 18 mm thick. The corners are slightly rounded.
Notice / Inquire

Vacuum-formed insert T-263 553 x 353 x 37 mm, 208 compartments

dpvlink:
18936
Length :
553 mm
Width :
353 mm
Height :
37 mm
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


Minimum order:
10 PCE
Delivery time! Delivery time!
18,55 EUR

excl. 19% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum-formed insert T-263 553 x 353 x 37 mm, 208 compartments

The deep-drawing insert T-263 from Licefa is specially designed for the safe storage and transport of sensitive electronic components. This insert features 208 compartments with dimensions of 26x18x15 mm and is made from electrically conductive material that meets the standards of DIN EN 61340-5-1. With a length of 553 mm, a width of 353 mm, and a height of 37 mm, this insert fits perfectly into containers sized 600x400 mm.
The ESD deep-drawing insert not only provides protection through its conductivity, with a surface resistance between 10^3 and 10^5 Ω, but also offers practical handling through features such as reversible stacking and an integrated handle recess. These features facilitate storage and transport by improving the handling of the insert and its stackability.
The combination of functional design and technical specifications makes the deep-drawing insert T-263 a reliable choice for technical purchasers who value efficiency and safety.
Length
Length
553 mm
Width
Width
353 mm
Height
Height
37 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
208
Dimensions cavities
Dimensions cavities
26x18x15 mm
Suitable for containers
Suitable for containers
600x400 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 316
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-263

Article image
Article description
Length
Width
Height
Price
Compare
032.T-263 - Vacuum-formed insert T-263 553 x 353 x 37 mm, 208 compartments
032.T-263
Vacuum-formed insert T-263 553 x 353 x 37 mm, 208 compartments
553 mm
353 mm
37 mm
18,55 EUR
