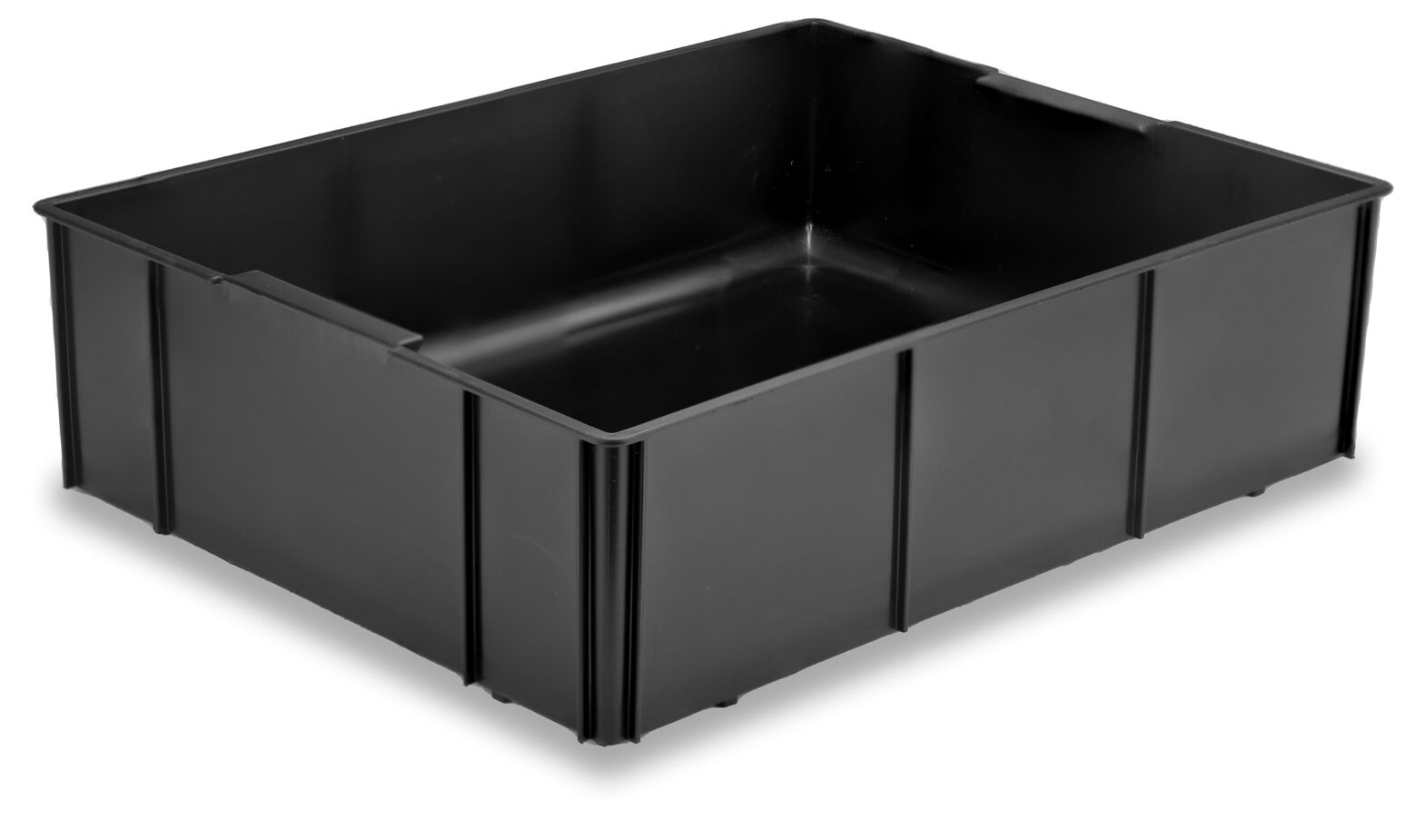

The image shows a rectangular, black plastic box without a lid. It has solid walls and a smooth, flat interior. The corners are slightly rounded.
Container ESD 1/2 size, transverse, for RAKO Euro container 600 x 400 mm
(Product No.: 051958.3)
The image shows a rectangular, black plastic box without a lid. It has solid walls and a smooth, flat interior. The corners are slightly rounded.
Notice / Inquire

Container ESD 1/2 size, transverse, for RAKO Euro container 600 x 400 mm

dpvlink:
871
Length :
355 mm
Width :
277 mm
Height :
99 mm
Material:
polypropylene
Conductivity:
volume conductive
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


chevron-down
available available
11,15 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Container ESD 1/2 size, transverse, for RAKO Euro container 600 x 400 mm

The UTZ ESD container in the 1/2 cross size is specifically designed for RAKO Euro containers with dimensions of 600 x 400 mm and offers an effective solution for protecting electronic components from electrostatic discharge. This insert container, with dimensions of 355 x 277 x 99 mm, is made from electrically conductive polypropylene and complies with the ESD standard DIN EN 61340-5-1 as well as the IEC standard, underscoring its reliability.
The surface of the container has a resistance of 10^4 to 10^11 Ohms, ensuring the safety of the stored electronic components. The black color facilitates visual inspection for contaminants. Additionally, the robust material not only protects the contents from electrostatic damage but also from mechanical damage, contamination, and moisture. Ideal for use in environments where protection against electrostatic discharges is critical, this container provides a reliable storage and transport solution.
Length
Length
355 mm
Width
Width
277 mm
Height
Height
99 mm
Material
Material
polypropylene
Conductivity
Conductivity
volume conductive
Color
Color
black
Surface resistance Rs
Surface resistance Rs
104 - 1011 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 303
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Insert for Euro containers RAKO 600x400 mm

RAKO insert for Euro containers with basic dimensions 600 x 400 mm, electrostatically volume conductive, black

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Length
Width
Height
Material
Conductivity
Price
Compare
051954.3 - Container ESD 1/16 size for RAKO Euro container 600 x 400 mm
051954.3
Container ESD 1/16 size for RAKO Euro container 600 x 400 mm
139 mm
89 mm
99 mm
polypropylene
volume conductive
4,68 EUR
051955.3 - Container ESD 1/8 size for RAKO Euro container 600 x 400 mm
051955.3
Container ESD 1/8 size for RAKO Euro container 600 x 400 mm
177 mm
139 mm
99 mm
polypropylene
volume conductive
5,38 EUR
051956.3 - Container ESD 1/4 size for RAKO Euro container 600 x 400 mm
051956.3
Container ESD 1/4 size for RAKO Euro container 600 x 400 mm
277 mm
177 mm
99 mm
polypropylene
volume conductive
6,69 EUR
051957 - Container ESD 1/4 size, longitudinal, for RAKO Euro container 600 x 400 mm
051957
Container ESD 1/4 size, longitudinal, for RAKO Euro container 600 x 400 mm
555 mm
89 mm
99 mm
polypropylene
volume conductive
8,15 EUR
051958.3 - Container ESD 1/2 size, transverse, for RAKO Euro container 600 x 400 mm
051958.3
Container ESD 1/2 size, transverse, for RAKO Euro container 600 x 400 mm
355 mm
277 mm
99 mm
polypropylene
volume conductive
11,15 EUR
051959 - Container ESD 1/2 size, longitudinal, for RAKO Euro container 600 x 400 mm
051959
Container ESD 1/2 size, longitudinal, for RAKO Euro container 600 x 400 mm
555 mm
177 mm
99 mm
polypropylene
volume conductive
11,90 EUR
