PP Partition 553 mm / height 50 mm / grid 20 mm with external supports
PP Partition 553 mm / height 50 mm / grid 20 mm with external supports

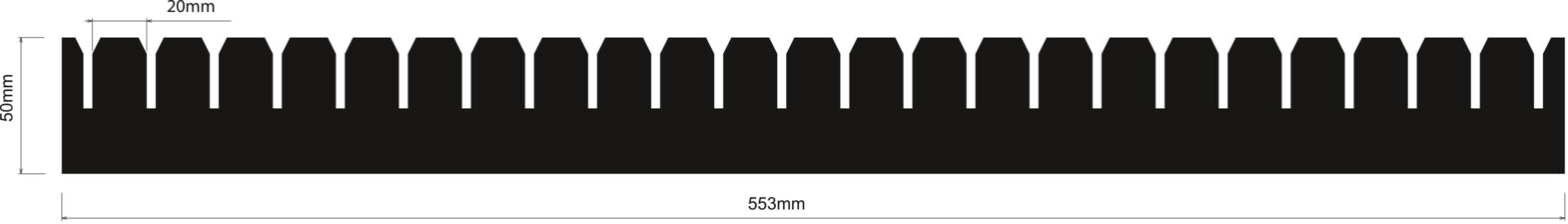

The PP honeycomb panel from EPAstore, manufactured by DPV, is an effective solution for protecting your electronic components from electrostatic discharge. With a length of 553 mm, a height of 50 mm, and a thickness of 3 mm, this honeycomb panel fits perfectly into Euro containers of size 400 x 300 mm. It features 23 subdivisions and 24 slots, allowing for flexible usage. The outer web measures approximately 7 mm, facilitating the handling and removal of components.The material is made of extruded polypropylene in a hollow chamber structure, which not only provides high abrasion resistance but also impresses with its low weight. The honeycomb panel is electrostatically conductive in volume and meets the ESD standard DIN EN 61340-5-1, making it ideal for applications where electrostatic discharges must be avoided.
The honeycomb panel is available in black and can be customized on request in specific heights between 30 and 600 mm, with optional grip cutouts for even easier handling.
Details
- Compartments Compartments
- 23
- Slots Slots
- 24
- External support External support
- yes
- Color Color
- black
- Height Height
- 50 mm
- Length Length
- 553 mm
- Thickness Thickness
- 3 mm
- Conductivity Conductivity
- volume conductive
- Material Material
- polypropylene
- Grid spacing Grid spacing
- 20 mm
- Material structure Material structure
- cavity material
- Suitable for containers Suitable for containers
- 400x300 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Material PP
High abrasion resistance, low weight thickness 3.0 mm | 600 g/m²,
thickness 3.5 mm | 800 g/m², volume conductive.
Typical surface resistance: R = 10^4 –10^6 Ohm.
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
