PP Partition length 353 mm / height 50 mm / grid 317 mm
(Product No.: 050.240.050.317.AS)
Notice / Inquire

PP Partition length 353 mm / height 50 mm / grid 317 mm

dpvlink:
26566
Manufacturer:
Properties:
Further product information

Delivery time! Delivery time!
0,90 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

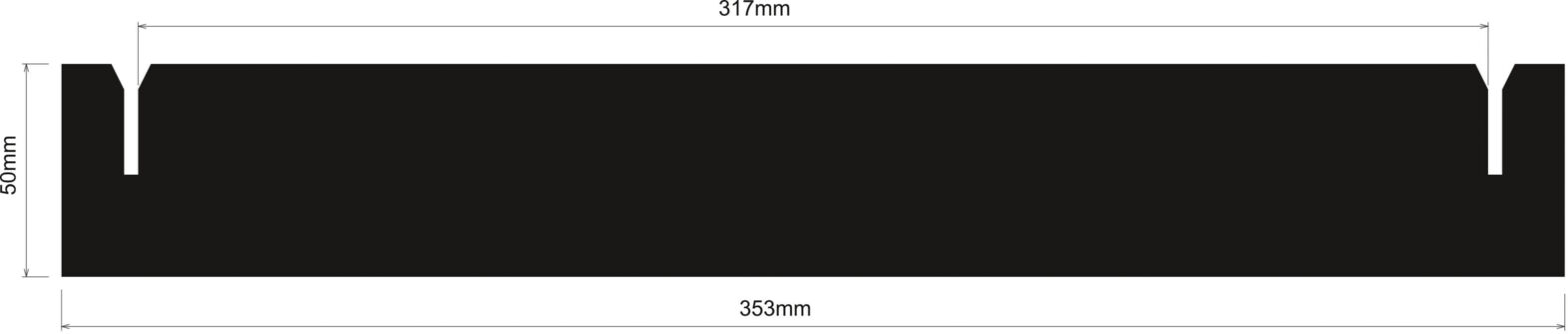

PP Partition length 353 mm / height 50 mm / grid 317 mm

The PP honeycomb partition from EPAstore, manufactured by DPV, is an optimal solution for protecting your electronic components in Euro containers sized 400 x 300 mm. This partition has a length of 353 mm, a height of 50 mm, and a thickness of 3 mm, making it robust and durable. It is made from extruded polypropylene, a material known for its high abrasion resistance and low weight. The partition is also volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for applications where electrostatic discharges must be avoided.
The partition features a subdivision with two slots on a grid size of 317 mm and is equipped with an outer ridge of about 15 mm. This product is available in black and offers additional stability through its hollow chamber construction. Handle cutouts can be customized upon request to facilitate the removal of components. Ideal for technical purchasers who want to equip their workplaces to be ESD compliant.
Color
Color
black
Height
Height
50 mm
Length
Length
353 mm
Thickness
Thickness
3 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
<10^6 Ω
Material
Material
polypropylene
Compartments
Compartments
1
External support
External support
yes
Grid spacing
Grid spacing
317 mm
Material structure
Material structure
cavity material
Slots
Slots
2
Suitable for containers
Suitable for containers
400x300 mm
Weight per unit area [g/m²]
Weight per unit area [g/m²]
600
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Material PP
High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Catalogues

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions

Product Family

Standard PP partitions, height 50 mm

for Euro containers 400 x 300 mm
PP partition 353 x 50 x 3 mm


Article image
Article description
ESD
Color
Height
Length
Thickness
Conductivity
Surface resistance Rs
Material
Compartments
External support
Grid spacing
Material structure
Slots
Suitable for containers
Weight per unit area [g/m²]
Price
Compare
050.240.050.10.AS - PP Partition length 353 mm / height 50 mm / grid 10 mm
050.240.050.10.AS
PP Partition length 353 mm / height 50 mm / grid 10 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
25
yes
10 mm
cavity material
26
400x300 mm
600
1,46 EUR
050.240.050.105.AS - PP Partition length 353 mm / height 50 mm / grid 105 mm
050.240.050.105.AS
PP Partition length 353 mm / height 50 mm / grid 105 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
3
yes
105 mm
cavity material
4
400x300 mm
600
0,94 EUR
050.240.050.15.AS - PP Partition length 353 mm / height 50 mm / grid 15 mm
050.240.050.15.AS
PP Partition length 353 mm / height 50 mm / grid 15 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
18
yes
15 mm
cavity material
19
400x300 mm
600
1,27 EUR
050.240.050.159.AS - PP Partition length 353 mm / height 50 mm / grid 159 mm
050.240.050.159.AS
PP Partition length 353 mm / height 50 mm / grid 159 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
2
yes
159 mm
cavity material
3
400x300 mm
600
0,92 EUR
050.240.050.20 - PP Partition length 353 mm / height 50 mm / grid 20 mm
050.240.050.20
PP Partition length 353 mm / height 50 mm / grid 20 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
15
no
20 mm
cavity material
14
400x300 mm
600
1,12 EUR
050.240.050.20.AS - PP Partition length 353 mm / height 50 mm / grid 20 mm with external support
050.240.050.20.AS
PP Partition length 353 mm / height 50 mm / grid 20 mm with external support
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
14
yes
20 mm
cavity material
15
400x300 mm
600
1,13 EUR
050.240.050.317.AS - PP Partition length 353 mm / height 50 mm / grid 317 mm
050.240.050.317.AS
PP Partition length 353 mm / height 50 mm / grid 317 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
1
yes
317 mm
cavity material
2
400x300 mm
600
0,90 EUR
050.240.050.32 - PP Partition length 353 mm / height 50 mm / grid 32 mm
050.240.050.32
PP Partition length 353 mm / height 50 mm / grid 32 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
10
no
32 mm
cavity material
9
400x300 mm
600
1,12 EUR
050.240.050.41 - PP Partition length 353 mm / height 50 mm / grid 41 mm
050.240.050.41
PP Partition length 353 mm / height 50 mm / grid 41 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
8
no
41 mm
cavity material
7
400x300 mm
600
1,00 EUR
050.240.050.55 - PP Partition length 353 mm / height 50 mm / grid 55 mm
050.240.050.55
PP Partition length 353 mm / height 50 mm / grid 55 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
6
no
55 mm
cavity material
5
400x300 mm
600
0,96 EUR
050.240.050.67 - PP Partition length 353 mm / height 50 mm / grid 67 mm
050.240.050.67
PP Partition length 353 mm / height 50 mm / grid 67 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
5
no
67 mm
cavity material
4
400x300 mm
600
0,94 EUR
050.240.050.78 - PP Partition length 353 mm / height 50 mm / grid 78 mm
050.240.050.78
PP Partition length 353 mm / height 50 mm / grid 78 mm
black
50 mm
353 mm
3 mm
volume conductive
<10^6 Ω
polypropylene
4
yes
78 mm
cavity material
5
400x300 mm
600
0,96 EUR
