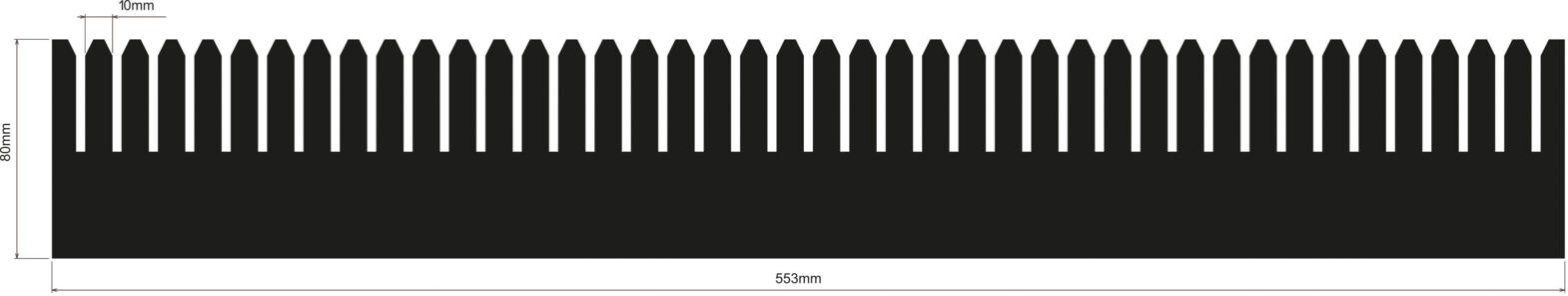

The image shows a long, black fence with pointed, wavy tops. The fence is uniform and extends horizontally. Measurements are provided at the top and bottom.
PP Partition length 553 mm / height 80 mm / grid 10 mm ESD
(Product No.: 050.241.080.10.AS)
The image shows a long, black fence with pointed, wavy tops. The fence is uniform and extends horizontally. Measurements are provided at the top and bottom.
Notice / Inquire

PP Partition length 553 mm / height 80 mm / grid 10 mm ESD

dpvlink:
14855
Manufacturer:
Grid spacing:
10 mm
Compartments:
40
Slots:
41
External support:
yes
Properties:
Note:
Other heights from 30-600 mm with cut-outs customizable
Find out more about EPAstore®
Further product information



Minimum order:
10 PCE
chevron-down
Delivery time! Delivery time!
 Configurable
2,47 EUR
per PCE

excl. 19% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

PP Partition length 553 mm / height 80 mm / grid 10 mm ESD

The PP honeycomb panel from EPAstore, manufactured by DPV, is specifically designed for the protection and organized transport of ESD-sensitive components. This product, made of extruded polypropylene with a honeycomb profile, measures 553 mm in length and 80 mm in height, with a material thickness of 3 mm and a grid of 10 mm. The honeycomb panel is available in black and offers effective protection against electrostatic discharge through its volume conductivity according to DIN EN 61340-5-1.
Thanks to the robust material, the honeycomb panel is characterized by high abrasion resistance and low weight. It is ideal for use with Euro containers measuring 600 x 400 mm. The panel provides 41 slots with an external web of about 11 mm, which simplifies the removal of components. Additionally, customer-specific modifications such as viewing and gripping cutouts can be made to further enhance functionality.
Discover the possibilities of individual customization and optimize your storage and transport processes with this innovative solution.
Grid spacing
Grid spacing
10 mm
Compartments
Compartments
40
Slots
Slots
41
External support
External support
yes
Color
Color
black
Height
Height
80 mm
Length
Length
553 mm
Thickness
Thickness
3 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
<10^6 Ω
Material
Material
polypropylene
Material structure
Material structure
cavity material
Suitable for containers
Suitable for containers
600x400 mm
Other heights from 30-600 mm with cut-outs customizable
Find out more about EPAstore®
Pictograms
Material PP
High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Catalogues

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions
Configurators:
Parting inserts
Configurators:
Printing interlayers / Parting inserts

Product Family

Standard PP partitions, length 553 mm / height 80 mm

These extruded polypropylene partitions with a cavity profile protect your components and assemblies from uncontrolled electrostatic discharge during storage and transportation. They enable the organized and layered transport and storage of electronic components. In combination with interlayers and Euro containers, they are ideal for transporting ESD-sensitive components. Discover now.

Extruded polypropylene with a cavity profile impresses with its high abrasion resistance and low weight. The material is electrostatically conductive and complies with the ESD standard DIN EN 61340-5-1.

The partitions can be fitted with any number of viewing cut-outs and recessed grips to make it easier to remove the stored components. In addition, the partition walls can be customized and printed to suit any application.

PP partition 553 x 80 x 3 mm, for Euro containers 600 x 400 mm (thickness 3.5 mm on request)



Configure now




Article image
Article description
ESD
Grid spacing
Compartments
Slots
External support
Price
Compare
 Configurable
050.241.080.10.AS - PP Partition length 553 mm / height 80 mm / grid 10 mm ESD
050.241.080.10.AS
PP Partition length 553 mm / height 80 mm / grid 10 mm ESD
10 mm
40
41
yes
2,47 EUR
 Configurable
050.241.080.20 - PP Partition length 553 mm / height 80 mm / grid 20 mm ESD
050.241.080.20
PP Partition length 553 mm / height 80 mm / grid 20 mm ESD
20 mm
24
23
no
1,65 EUR
 Configurable
050.241.080.20.AS - PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support
050.241.080.20.AS
PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support
20 mm
23
24
yes
1,69 EUR
 Configurable
050.241.080.23.A - PP Partition length 553 mm / height 80 mm / grid 23 mm ESD
050.241.080.23.A
PP Partition length 553 mm / height 80 mm / grid 23 mm ESD
23 mm
20
21
yes
1,63 EUR
 Configurable
050.241.080.34 - PP Partition length 553 mm / height 80 mm / grid 34 mm ESD
050.241.080.34
PP Partition length 553 mm / height 80 mm / grid 34 mm ESD
34 mm
15
14
no
1,61 EUR
 Configurable
050.241.080.43 - PP Partition length 553 mm / height 80 mm / grid 43 mm ESD
050.241.080.43
PP Partition length 553 mm / height 80 mm / grid 43 mm ESD
43 mm
12
11
no
1,53 EUR
 Configurable
050.241.080.52 - PP Partition length 553 mm / height 80 mm / grid 52 mm ESD
050.241.080.52
PP Partition length 553 mm / height 80 mm / grid 52 mm ESD
52 mm
10
9
no
1,47 EUR
 Configurable
050.241.080.66 - PP Partition length 553 mm / height 80 mm / grid 66 mm ESD
050.241.080.66
PP Partition length 553 mm / height 80 mm / grid 66 mm ESD
66 mm
8
7
no
1,40 EUR
 Configurable
050.241.080.76 - PP Partition length 553 mm / height 80 mm / grid 76 mm ESD
050.241.080.76
PP Partition length 553 mm / height 80 mm / grid 76 mm ESD
76 mm
7
6
no
1,37 EUR
 Configurable
050.241.080.84 - PP Partition length 553 mm / height 80 mm / grid 84 mm ESD
050.241.080.84
PP Partition length 553 mm / height 80 mm / grid 84 mm ESD
84 mm
6
7
yes
1,40 EUR
 Configurable
050.241.080.101 - PP Partition length 553 mm / height 80 mm / grid 101 mm ESD
050.241.080.101
PP Partition length 553 mm / height 80 mm / grid 101 mm ESD
101 mm
5
6
yes
1,31 EUR
 Configurable
050.241.080.127 - PP Partition length 553 mm / height 80 mm / grid 127 mm ESD
050.241.080.127
PP Partition length 553 mm / height 80 mm / grid 127 mm ESD
127 mm
4
5
yes
1,33 EUR
 Configurable
050.241.080.170 - PP Partition length 553 mm / height 80 mm / grid 170 mm ESD
050.241.080.170
PP Partition length 553 mm / height 80 mm / grid 170 mm ESD
170 mm
3
4
yes
1,29 EUR
 Configurable
050.241.080.257 - PP Partition length 553 mm / height 80 mm / grid 257 mm ESD
050.241.080.257
PP Partition length 553 mm / height 80 mm / grid 257 mm ESD
257 mm
2
3
yes
1,26 EUR
