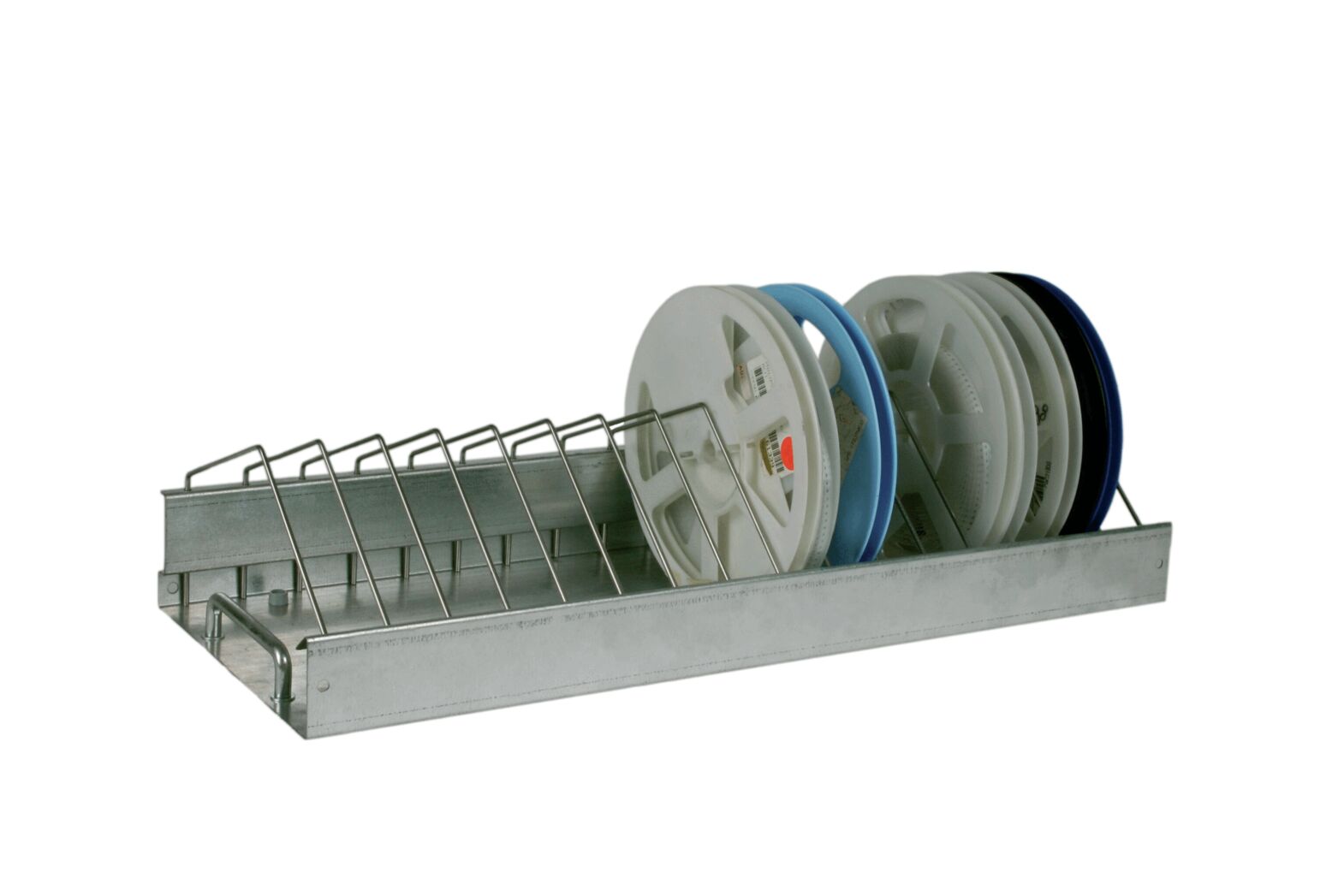

The image shows a metal dish rack with multiple compartments. It contains round, flat plates in various colors, which are arranged at an angle.
Reel rack 540 ESD
(Product No.: 090.005)
The image shows a metal dish rack with multiple compartments. It contains round, flat plates in various colors, which are arranged at an angle.
Notice / Inquire

Reel rack 540 ESD

dpvlink:
5750
Manufacturer:
Length :
540 mm
Width :
284 mm
Height :
175 mm
Reel diameter:
180-380 mm
Reels:
32
Properties:
Find out more about EPAstore®
Further product information

Delivery time! Delivery time!
55,90 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Reel rack 540 ESD

The 540 ESD trolley rack from EPAstore, manufactured by DPV, offers an efficient and safe storage solution for up to 32 SMD reels with diameters ranging from 180 to 380 mm. This sturdy construction made of galvanized steel and stainless steel plug-in brackets measures 540 mm in length, 284 mm in width, and 175 mm in height. The variable plug-in stainless steel brackets, along with optional features such as carrying handles and labeling rails, enhance the flexibility and user-friendliness of the rack.
The product complies with ESD standard DIN EN 61340-5-1, making it particularly suitable for use in ESD-sensitive environments commonly found in electronics manufacturing. The trolley rack is ideal for use in transport carts and multi-tier carts, as well as in storage shelving, offering a customizable and stable storage solution with its 32 mm hole grid.
Length
Length
540 mm
Width
Width
284 mm
Height
Height
175 mm
Reel diameter
Reel diameter
180-380 mm
Reels
Reels
32
Find out more about EPAstore®
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a metallic holding device with several angled metal bars. There is a rounded edge at the bottom and a small round elevation in the center.
ESD Carrying handle for SMD reel rack
ESD-protective
Handle for SMD reel rack 090.001 + 090.005
(2 handles are needed per reel rack)
dpvlink
7043

3,80 EUR
Show product
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
ESD / Length : 40 mm / Width : 25 mm / PU: 50 piece
Magnet labeling strips, white 40 x 25 mm
PU = 50 pieces
dpvlink
7043

19,80 EUR
Show product
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
ESD / Length : 540 mm / Width : 40 mm
Magnet labeling strips, 40 x 540 mm
Width 40 mm, length 540 mm
suitable for reel racks 090.001 + 090.005
dpvlink
7043

4,30 EUR
Show product
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
ESD / Length : 960 mm / Width : 40 mm
Magnet labeling strips, white
width 40 mm, length 960 mm
suitable for reel rack 090.010
dpvlink
7043

6,90 EUR
Show product
Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

SMD Reel rack with movable wire dividers

The reel holder for SMD reels is a practical solution for the safe storage of SMD reels and is particularly suitable for use in transport/storage trolleys or storage racks.

Compatibility: Suitable for SMD reels with a diameter of 180 to 380 mm

Material: Sturdy, galvanized metal construction for a long service life

Flexibility: Stainless steel bracket, variably pluggable, 32 mm spacing

Optional functions: Carrying handles and labeling rails for additional functionality

ESD protection: In compliance with ESD standard DIN EN 61340-5-1 for safe protection of sensitive components


Article image
Article description
ESD
Color
Material
Length
Width
Height
Reel diameter
Reels
Price
Compare
090.015 - Reel rack configurable with movable wire dividers
090.015
Reel rack configurable with movable wire dividers
grey
steel / steel





-
090.002 - Reel rack 988 ESD
090.002
Reel rack 988 ESD


988 mm
195 mm
110 mm
180 mm
32
76,80 EUR
090.001 - Reel rack 540 ESD
090.001
Reel rack 540 ESD


540 mm
195 mm
110 mm
180 mm
32
49,85 EUR
090.005 - Reel rack 540 ESD
090.005
Reel rack 540 ESD


540 mm
284 mm
175 mm
180-380 mm
32
55,90 EUR
090.010 - Reel rack 988 ESD
090.010
Reel rack 988 ESD


988 mm
284 mm
175 mm
180-380 mm
60
79,85 EUR
