Air bubble film two-layered 300 mm x 100 m

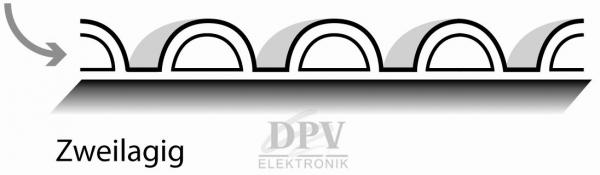

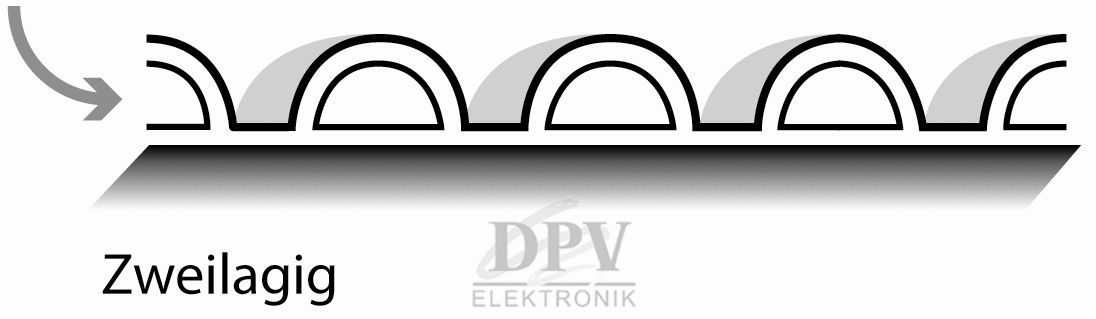

The two-layer bubble wrap from EPApack offers an effective protection solution for sensitive products. With a width of 300 mm and a roll length of 100 m, it meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-sensitive environments. This pink film is made from recyclable polyethylene, contains 5% recycled material, and is amine-free. The film is also printed with the recycling symbol LDPE 4 and has a thickness of 0.08 mm. The bubbles of the film have a diameter of 10 mm and a height of 4 mm, which ensures additional protection. It is dissipative and conductive with a surface resistance between 10^10 and 10^11 Ohm and a maximum discharge time of 2 seconds. The durability is 3 years with proper storage, protected from UV radiation and at an ambient temperature of 10 to 25 °C and a humidity over 20%. The inside of the film is smooth and it is also sealable, offering versatile application possibilities.
Note on ESD measurement:
To obtain a reliable measurement result, the resistance measurement should be conducted without trapped air. Without cushioning, the necessary contact area of the electrodes on the material is provided, which delivers a precise measurement result. Measurements with air gaps can lead to deviating values.
Details
- Width Width
- 300 mm
- Roll length Roll length
- 100 m
- Thickness Thickness
- 0.08 mm
- m²/roll m²/roll
- 30 m²
- Color Color
- rose
- Knob diameter Knob diameter
- 10 mm
- Knob height Knob height
- 4 mm
- Conductivity Conductivity
- dissipative
- Static decay time max. Static decay time max.
- 2 s
- Surface resistance Rs Surface resistance Rs
- 1010 - 1011 Ω
- Material Material
- polyethylene
- recyclable recyclable
- yes
- Recycling rate material Recycling rate material
- yes / 5 %
- ESD ESD
- yes
- heat-sealable heat-sealable
- yes
- Layers Layers
- 2
- Ambient temperature (storage conditions) Ambient temperature (storage conditions)
- 10 - 25 °C
- Humidity (storage conditions) Humidity (storage conditions)
- >20 %
- Shelf life (from production date) Shelf life (from production date)
- 3 years , when stored properly
- Storage conditions Storage conditions
- protect from UV rays
