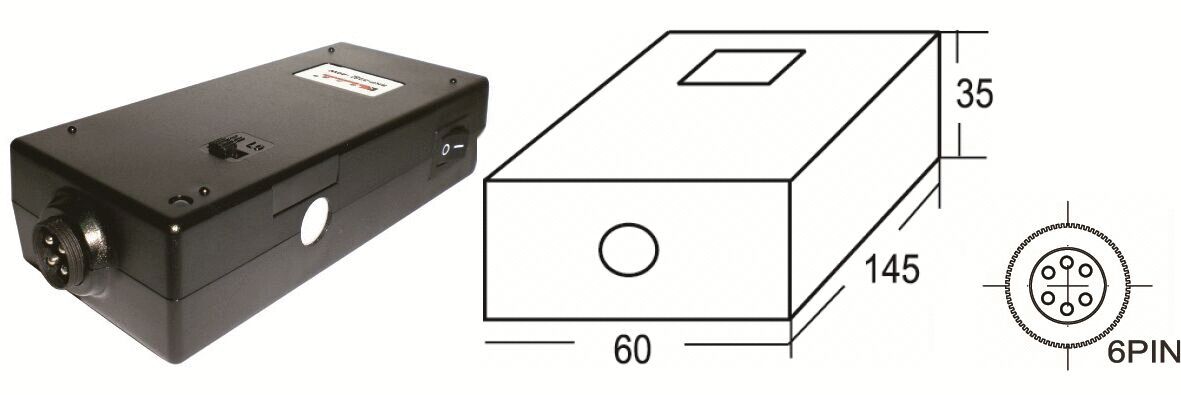

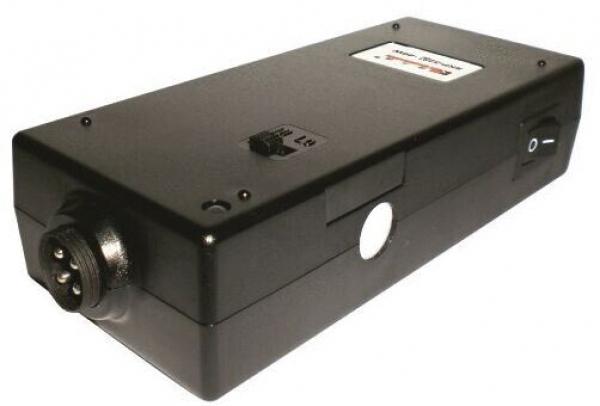

The image shows a long, black casing with various knobs and connectors. It has a smooth surface and appears sturdy, possibly an electrical device.
The image displays an elongated, black device with rounded contours. It features a lateral connection port and a top surface with a small rectangular indentation. Next to it, there is a technical sketch of the device.

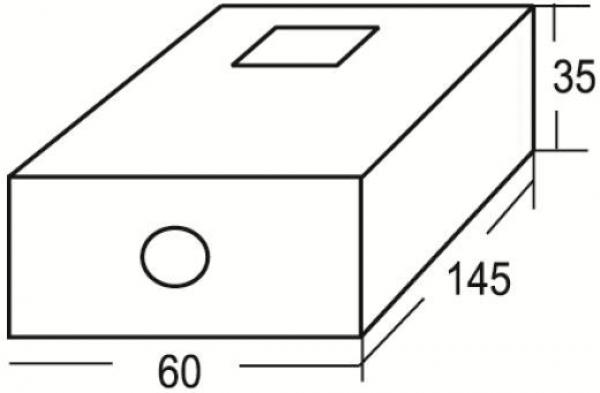

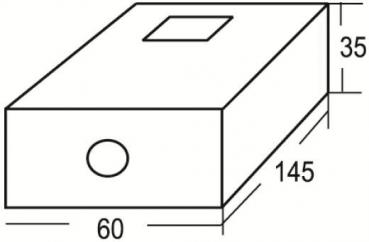

The image shows a rectangular box with dimensions of 145 mm in length, 60 mm in width, and 35 mm in height. There is a small square cutout on the top and a round one on the front.

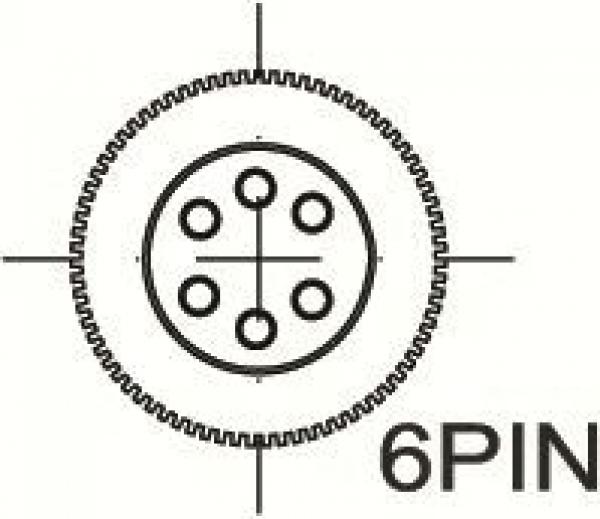

The image displays a circular representation with six points evenly distributed. A horizontal and vertical line intersect in the center. Below it reads "6PIN".
Preview: The image shows a long, black casing with various knobs and connectors. It has a smooth surface and appears sturdy, possibly an electrical device.
Preview: The image displays an elongated, black device with rounded contours. It features a lateral connection port and a top surface with a small rectangular indentation. Next to it, there is a technical sketch of the device.
Preview: The image shows a rectangular box with dimensions of 145 mm in length, 60 mm in width, and 35 mm in height. There is a small square cutout on the top and a round one on the front.
Preview: The image displays a circular representation with six points evenly distributed. A horizontal and vertical line intersect in the center. Below it reads "6PIN".
Controller SKP-32BC-60W for SKD-BN200 / BN500
(Product No.: SKP-32BC-60W)
The image shows a long, black casing with various knobs and connectors. It has a smooth surface and appears sturdy, possibly an electrical device.
The image displays an elongated, black device with rounded contours. It features a lateral connection port and a top surface with a small rectangular indentation. Next to it, there is a technical sketch of the device.
The image shows a rectangular box with dimensions of 145 mm in length, 60 mm in width, and 35 mm in height. There is a small square cutout on the top and a round one on the front.
The image displays a circular representation with six points evenly distributed. A horizontal and vertical line intersect in the center. Below it reads "6PIN".
Mobile Preview: The image shows a long, black casing with various knobs and connectors. It has a smooth surface and appears sturdy, possibly an electrical device.
Mobile Preview: The image displays an elongated, black device with rounded contours. It features a lateral connection port and a top surface with a small rectangular indentation. Next to it, there is a technical sketch of the device.
Mobile Preview: The image shows a rectangular box with dimensions of 145 mm in length, 60 mm in width, and 35 mm in height. There is a small square cutout on the top and a round one on the front.
Mobile Preview: The image displays a circular representation with six points evenly distributed. A horizontal and vertical line intersect in the center. Below it reads "6PIN".
Notice / Inquire

Controller SKP-32BC-60W for SKD-BN200 / BN500

dpvlink:
20329
Input voltage:
100 - 240 V/AC
Output voltage DC:
24/32 V/DC
Properties:
Further product information

available available
135,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Controller SKP-32BC-60W for SKD-BN200 / BN500

The power supply SKP-32BC-60W, manufactured by Kilews, is specifically designed for the SKD-BN200, SKD-BE200, SKD-BN500, and SKD-BE500 series, providing reliable power with an input voltage of 100-240V AC and an output voltage of 24/32V DC. The compact design, measuring 213 x 131 x 65 mm and weighing 250 g, allows for easy integration into existing systems.
The power supply features a power switch with on/off indicator as well as two speed ranges (HI/LO), which can be adjusted via a switch. The indicator light signals the operating status: Green indicates normal operation, Red warns of an overload. With a power of 60W and a 2.0 m long cable, it offers a flexible and robust solution for your requirements. Please note that this power supply is not suitable for high-speed electric screwdrivers of the BN500LF/PF types.
Input voltage
Input voltage
100 - 240 V/AC
Output voltage DC
Output voltage DC
24/32 V/DC
Cable length
Cable length
2.0 m
Power
Power
60 W
Height
Height
35 mm
Length
Length
145 mm
Width
Width
60 mm
Connection
Connection
6-Pin
Weight
Weight
250 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 443
Complete Catalog 2023 - 2024

Product Family

Power supply units Kilews

Kilews power supply units for series:

  • BN200
  • BN500
  • BN800
  • BK900
  • RBK
  • B100
  • BN500LF
  • BN500PF

Article image
Article description
ESD
Input voltage
Output voltage DC
Price
Compare
SKP-12HL - Controller SKP-12HL for SKD-B 100
SKP-12HL
Controller SKP-12HL for SKD-B 100
100 - 240 V/AC
12/12 V/DC
117,00 EUR
SKP-32BC-60W - Controller SKP-32BC-60W for SKD-BN200 / BN500
SKP-32BC-60W
Controller SKP-32BC-60W for SKD-BN200 / BN500
100 - 240 V/AC
24/32 V/DC
135,00 EUR
SKP-BE32HLN - Controller SKP-BE32HLN for SKD-BN500LF / BN500PF
SKP-BE32HLN
Controller SKP-BE32HLN for SKD-BN500LF / BN500PF
100 - 240 V/AC
32/24 V/DC
180,00 EUR
SKP-40B-HLN - Controller SKP-40B-HLN for SKD-BN800
SKP-40B-HLN
Controller SKP-40B-HLN for SKD-BN800
100 - 240 V/AC
32/40 V/DC
445,00 EUR
SKP-40B-HL-800 - Controller SKP-40B-HL-800 for SKD-BK900 / RBK
SKP-40B-HL-800
Controller SKP-40B-HL-800 for SKD-BK900 / RBK
100 - 240 V/AC
32/40 V/DC
556,00 EUR
