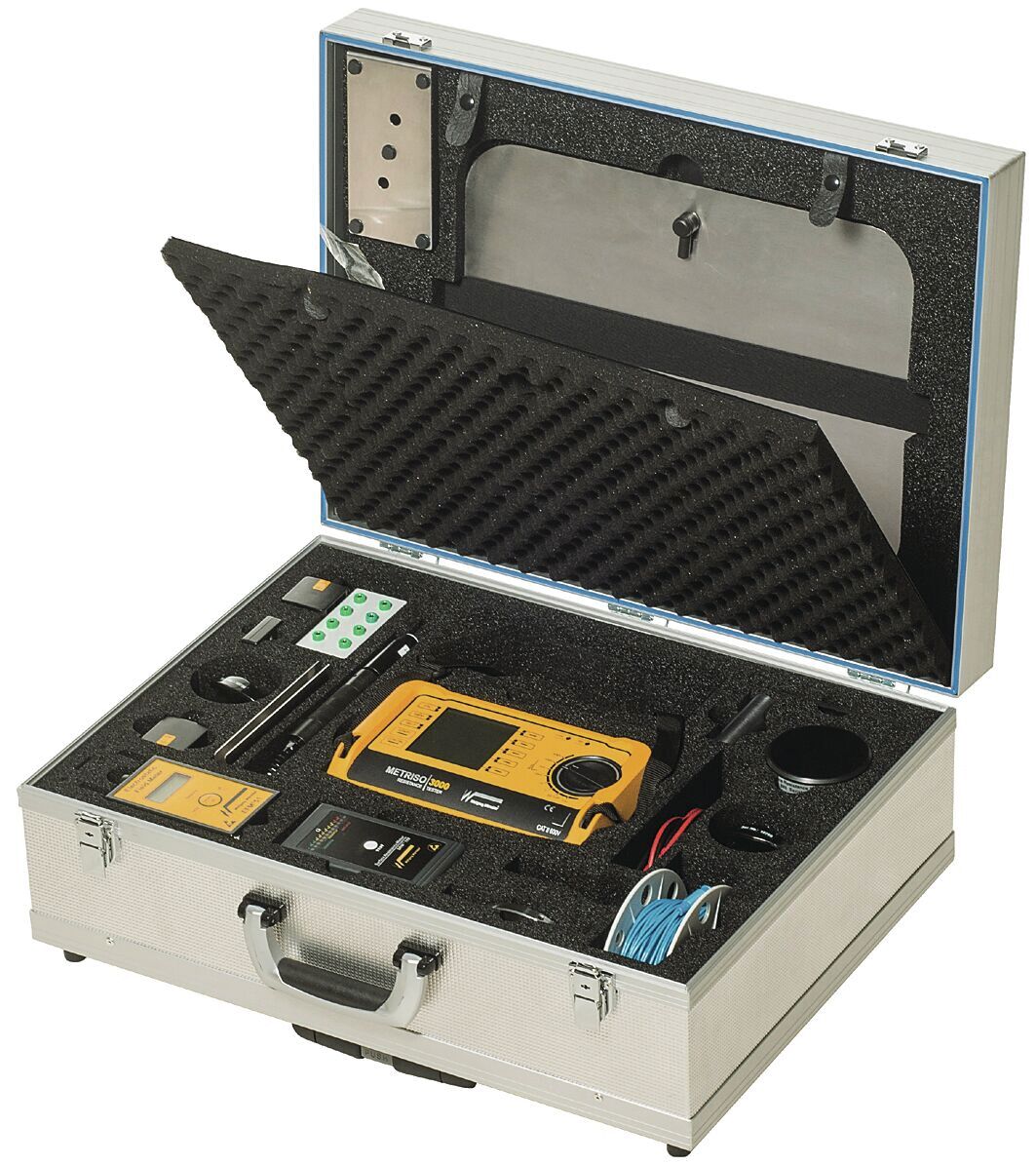

ESD Audit case Metriso 3000 with walking test kit and electrode type 850
(Product No.: 7110.600.Set.WT)

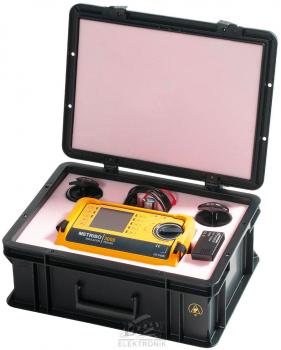

The image shows an opened metal case lined with foam inside. It contains a yellow device, as well as several tools and cables, neatly arranged.
The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.

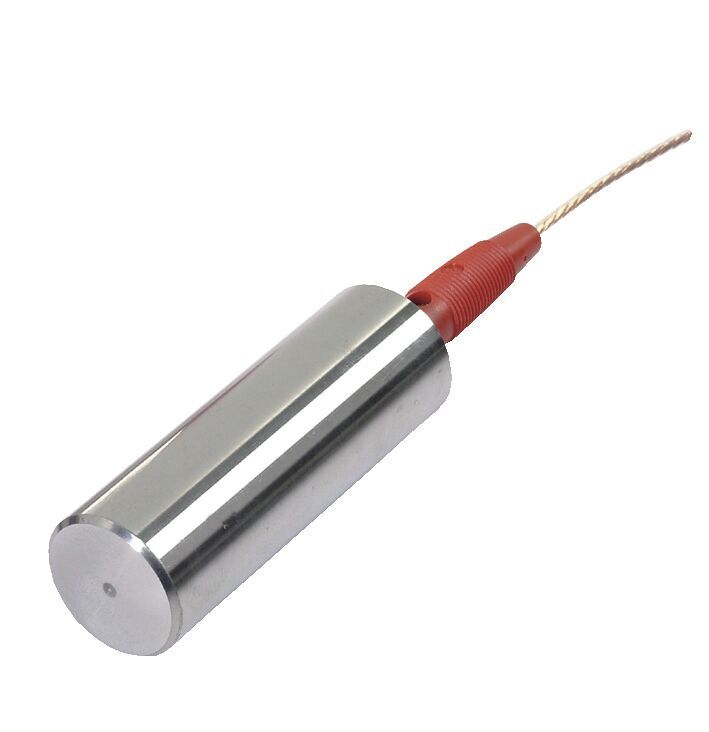

The image shows a cylindrical metal object with a smooth, shiny surface. At the top is a small, round area, and a red cable leads out.

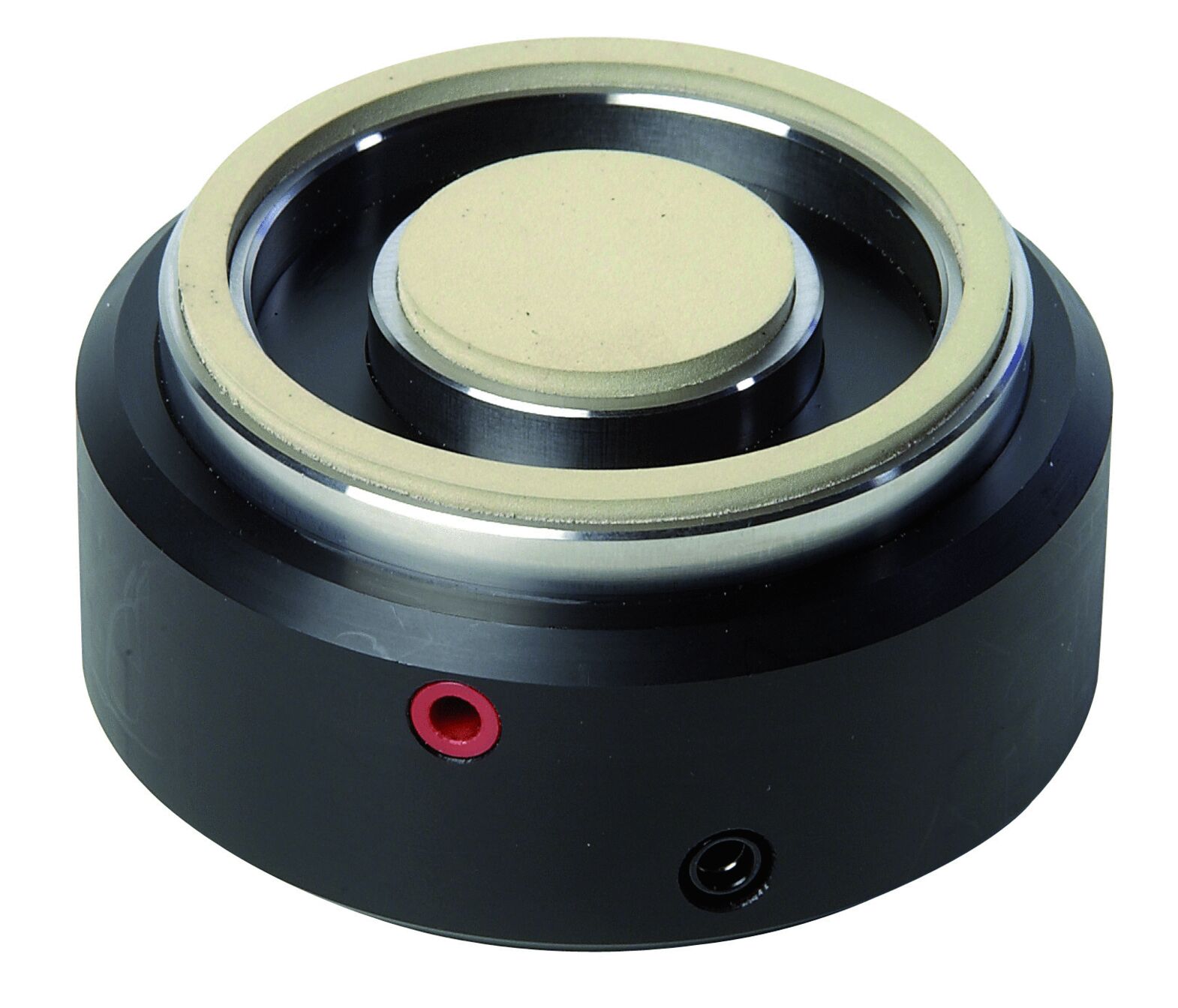

The image shows a round, black component with a central, flat element made of lightweight material. It has a red and a black connector on the side. This component could be part of a speaker or similar device.
The image displays a black surface resistance meter with a large white button in the center and two sockets at the bottom. Colored scales for resistance values are shown at the top.
The image shows an electrostatic measuring device, consisting of a large, stable base unit with a display and a handheld sensor. Both are designed in yellow and black.
The image displays a rectangular, rounded metal plate with a matte finish. At the top center, there is a small hole, likely for hanging. The surface is smooth and monochromatic.
The image shows two black, cylindrical measuring devices with a flat bottom and a rounded top. On the surface are white inscriptions about the model and technical specifications.
The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
The image shows a control unit with a rectangular white base and seven yellow buttons. A round yellow part with a power button is attached by a cable.
The picture shows a silver suitcase with a telescopic handle, standing on wheels. On the front, the inscription "ESD-AUDIT-KIT" is visible.
Mobile Preview: The image shows an opened metal case lined with foam inside. It contains a yellow device, as well as several tools and cables, neatly arranged.
Mobile Preview: The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.
Mobile Preview: The image shows a cylindrical metal object with a smooth, shiny surface. At the top is a small, round area, and a red cable leads out.
Mobile Preview: The image shows a round, black component with a central, flat element made of lightweight material. It has a red and a black connector on the side. This component could be part of a speaker or similar device.
Mobile Preview: The image displays a black surface resistance meter with a large white button in the center and two sockets at the bottom. Colored scales for resistance values are shown at the top.
Mobile Preview: The image shows an electrostatic measuring device, consisting of a large, stable base unit with a display and a handheld sensor. Both are designed in yellow and black.
Mobile Preview: The image displays a rectangular, rounded metal plate with a matte finish. At the top center, there is a small hole, likely for hanging. The surface is smooth and monochromatic.
Mobile Preview: The image shows two black, cylindrical measuring devices with a flat bottom and a rounded top. On the surface are white inscriptions about the model and technical specifications.
Mobile Preview: The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
Mobile Preview: The image shows a control unit with a rectangular white base and seven yellow buttons. A round yellow part with a power button is attached by a cable.
Mobile Preview: The picture shows a silver suitcase with a telescopic handle, standing on wheels. On the front, the inscription "ESD-AUDIT-KIT" is visible.
Notice / Inquire

ESD Audit case Metriso 3000 with walking test kit and electrode type 850

dpvlink:
17719
Further product information

Delivery time! Delivery time!
5.523,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Audit case Metriso 3000 with walking test kit and electrode type 850

The ESD Audit Kit Metriso 3000, equipped with a Walking Test Set and the 850 Electrode, is designed for comprehensive measurement and control of dissipation values in ESD protection zones. This audit set enables resistance measurement of flooring systems according to DIN EN 61340-4-1 and DIN EN 61340-4-5, as well as resistance testing of ESD chairs, workstations, and other facilities according to DIN EN 61340-2-3. Additionally, it allows for the measurement of electrostatic fields, checking temperature and relative humidity, and testing the effectiveness of ionization devices.
The case includes the Metriso 3000 with measuring leads, an Electrofield Meter EFM51 with Walking Test measuring head, a Charged-Plate Set with charge plate and high-voltage generator, as well as various electrodes and measuring devices. All devices come with a factory calibration certificate and are delivered with a detailed instruction manual.
The dimensions of the case are 575 x 490 x 250 mm, with a weight of 18 kg. The case is made of aluminum, lockable, rollable, and equipped with conductive foam, ensuring the safe storage of the components. The recommended calibration interval is 24 months.



Scope of Delivery:

7100.1000.G*

Metriso 3000 with measuring leads

7100.3000.TF*

Temperature/Humidity Sensor

7110.600

ESD Audit Case
(External dimensions: 575 x 490 x 250 mm, Empty weight 7 kg)

7220.450

Hand Electrode Model 450

7220.840*

Two-Point Electrode Model 840 (Mini-Probe)

7220.880*

Ring Electrode Model 880

7100.SRM110*

SRM110 Surface Resistance Tester

7100.EFM51.WT*

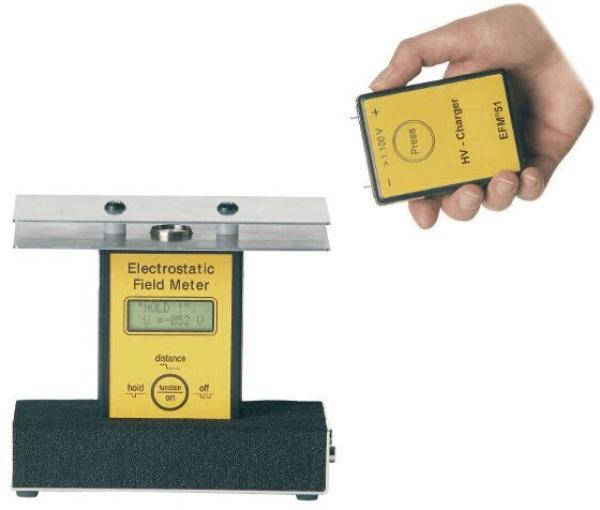

Electrofield Meter EFM51 with Walking Test measuring head and base

7100.WT5000.ML

Measuring lead for Walking Test

7100.EFM51.CPS

Charged-Plate Set with charge plate and high-voltage generator ±1200V

2200.110.Y

Grounding Block

7110.E8.Y

8-way Grounding Distributor Schuko blind plug

7100.2000.TR50

Cable Reel 50 m

7100.PGT100.102

Metal Plate 400 x 300 x 2 mm

7220.10.10

BA Adapter 10 mm

7220.880.6

Insulating Plastic Plate 120 x 160 x 6 mm

7220.880.9

Counter Electrode Stainless Steel Dm. 120 mm

7220.880.L

Guard Cable, blue, 1.5 m

7220.850 (2x)

Electrode Model 850

* Devices with factory calibration certificate



Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Height
Height
250 mm
Length
Length
575 mm
Width
Width
490 mm
Weight
Weight
18 kg
Show accessories
Accessories

Accessories

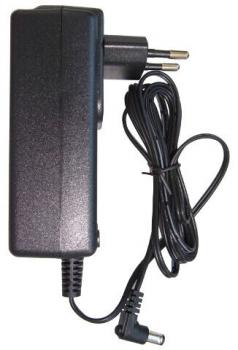

The image shows a black power adapter with two socket pins on one side and a cable leading to a round plug. The cable is coiled and moves sideways.
Wide-range charger for rechargeable battery...
Wide-range charger for battery pack Metriso 3000
EU, US, UK
Input: 100 - 240 VAC / output: 16.5 VDC
(operation only with rechargeable battery)
dpvlink
19753

116,90 EUR
Show product

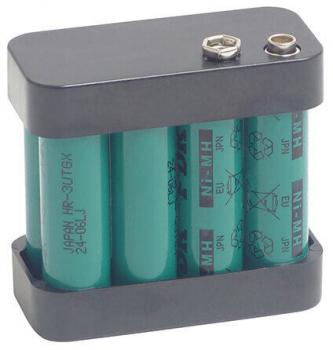

The image shows a rechargeable battery holder made of black plastic with three green cells. The cells are printed with information, and there are connectors on the top.
Rechargeable battery pack for Metriso 3000...
Rechargeable battery pack for Metriso 3000
2600mAh
dpvlink
19753

103,60 EUR
Show product

Spares

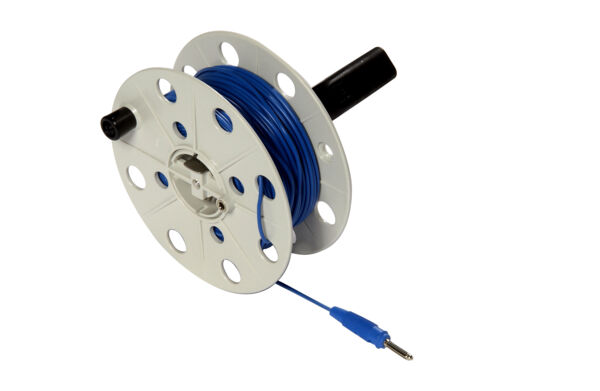

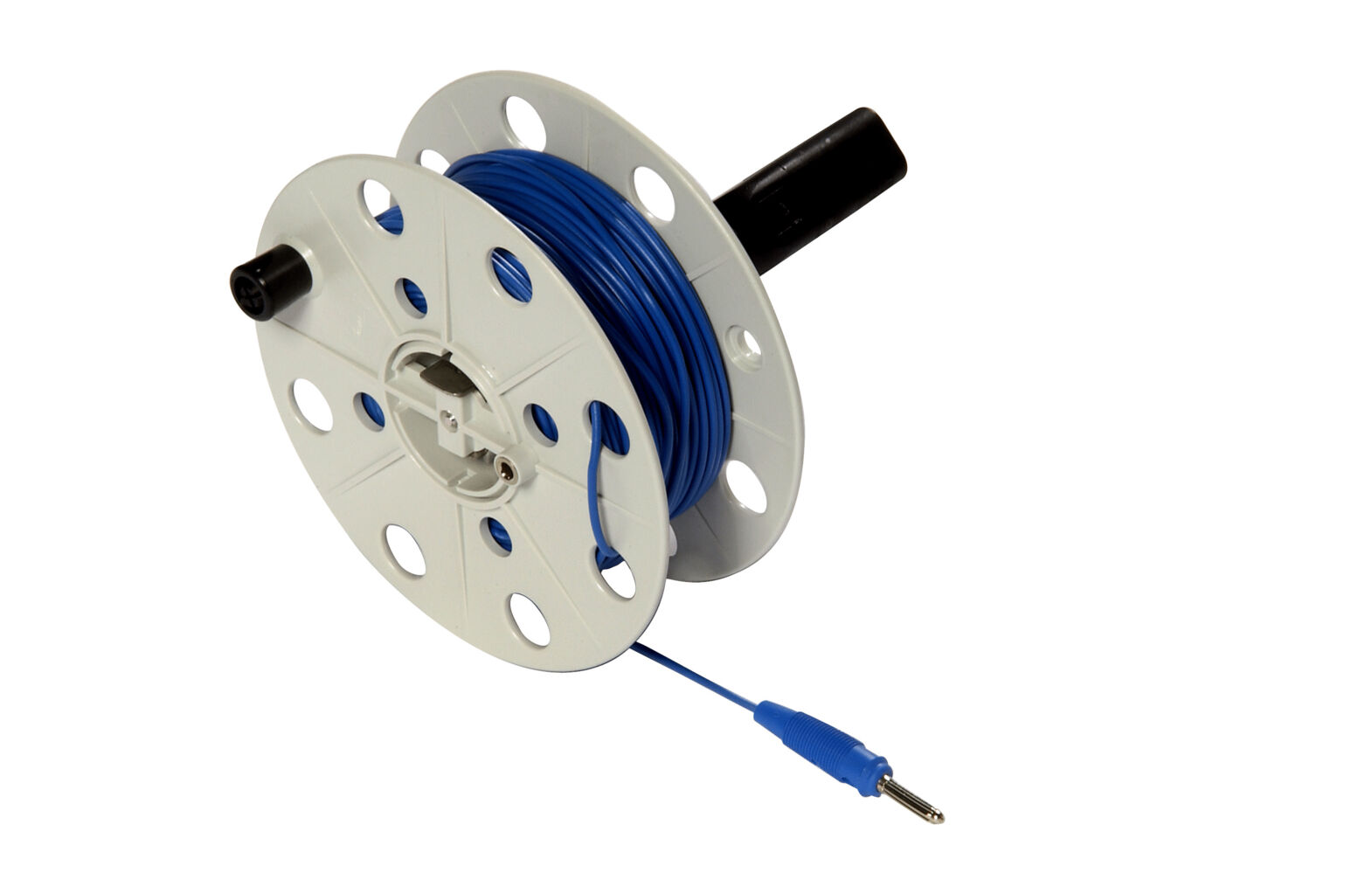

The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
Cable reel 50 m (for METRISO® 2000, 3000...
Cable drum 50 m with unwinder for ground
measurement
dpvlink
19753

127,80 EUR
Show product

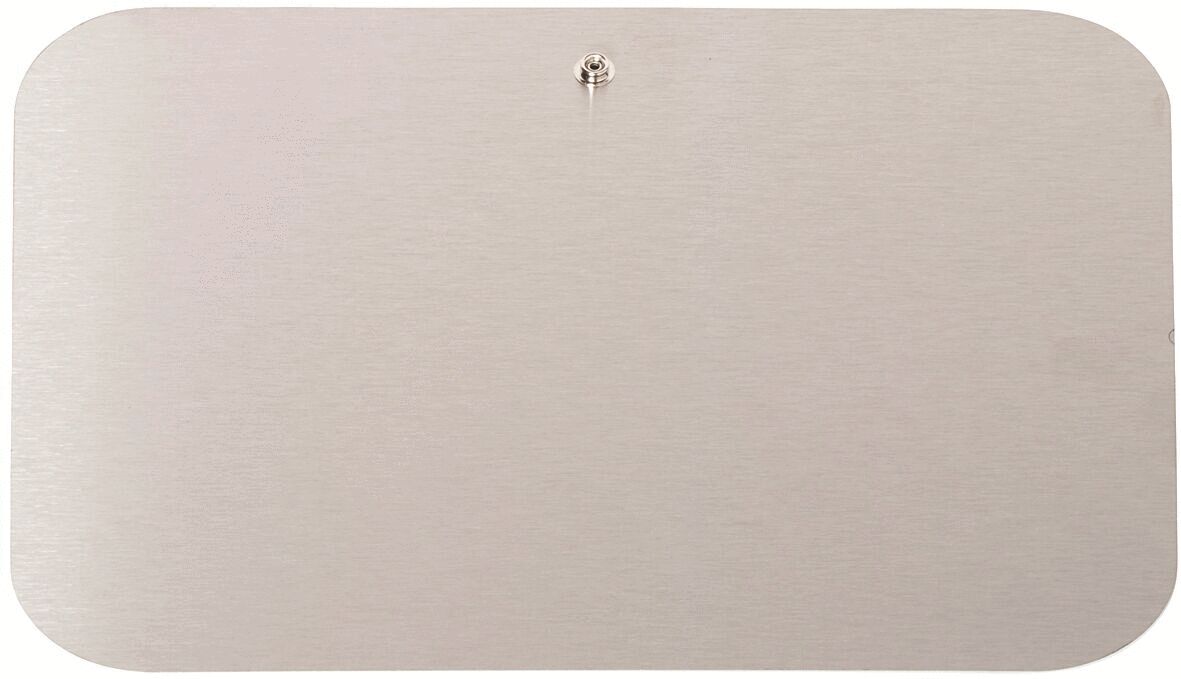

The image displays a rectangular, rounded metal plate with a matte finish. At the top center, there is a small hole, likely for hanging. The surface is smooth and monochromatic.
Metal plate
Metal plate 400 x 300 x 2 mm, stainless steel
Incl. 1 x 10 mm snap connection
dpvlink
17671

63,45 EUR
Show product

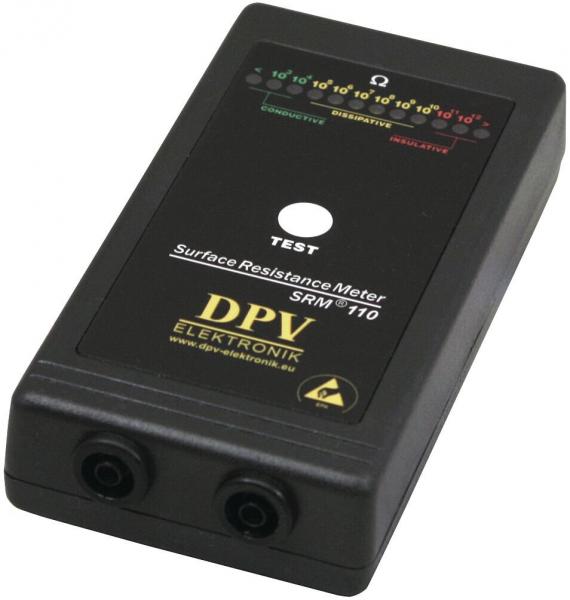

The image displays a black surface resistance meter with a large white button in the center and two sockets at the bottom. Colored scales for resistance values are shown at the top.
SRM 110 Surface resistance tester
SRM 110 - surface resistance meter
incl. storage bag, grounding wire,
9V battery and factory calibration certificate

Serial no.:
dpvlink
4662

268,00 EUR
Show product

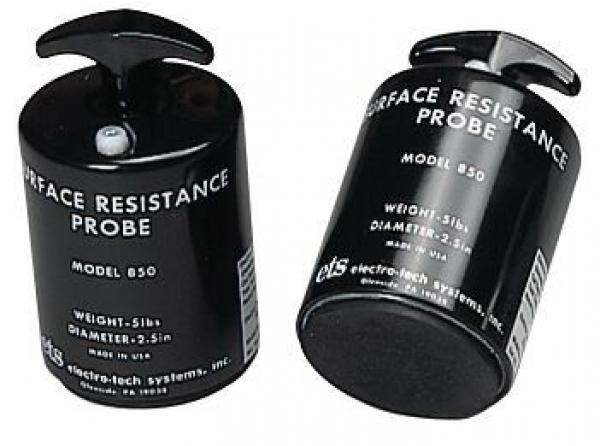

Measuring electrode ETS type 850
Measuring electrode model 850 ets
Diameter 63.5 mm / 2.27 kg
(DIN IEC 61340-5-1 and 61340-2-3)
dpvlink
4699

151,30 EUR
Show product

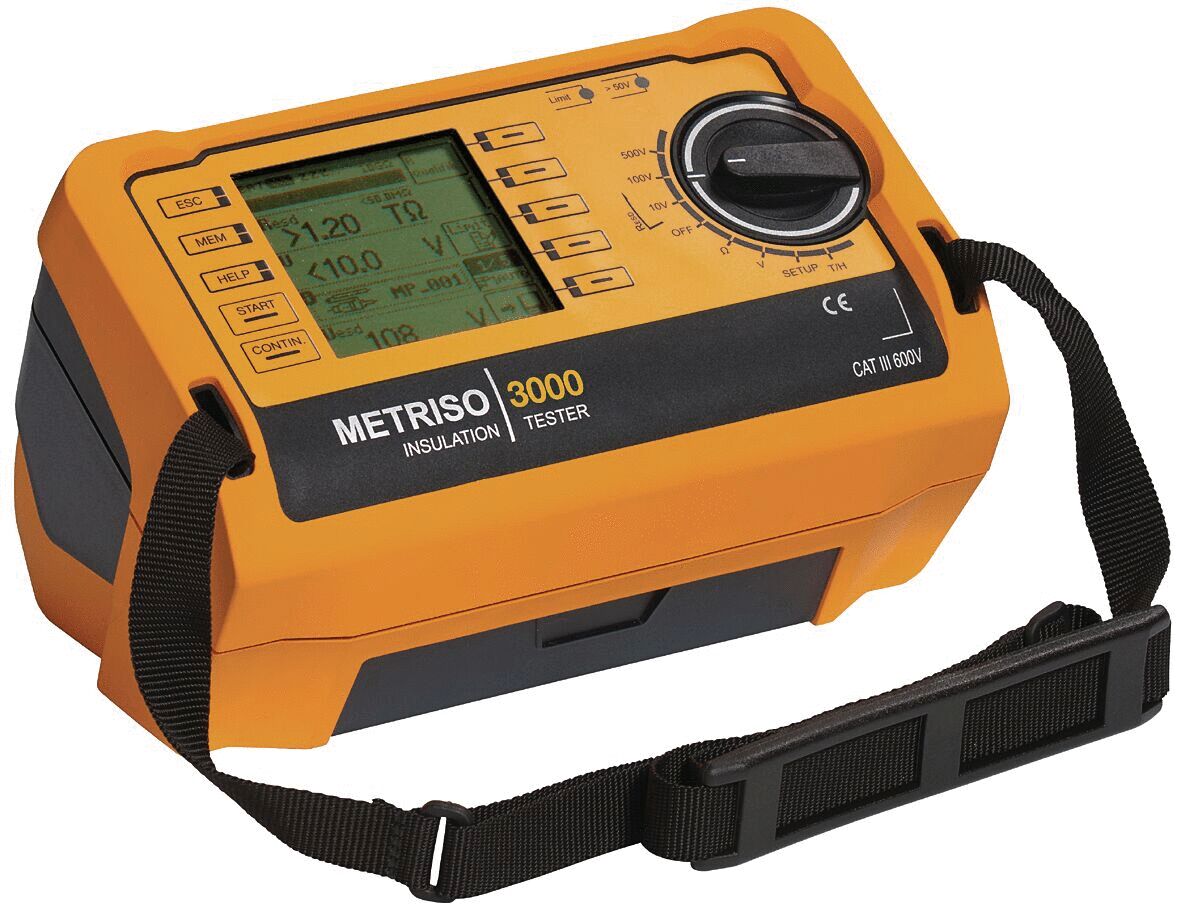

The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.
METRISO® 3000 measuring device single
Metriso 3000 meter with measuring lines
Menu language German/English
(without accessories)

Scope of delivery:
high resistance meter Metriso 3000, measuringl lines, user manual, calibration certificate

serial number:
dpvlink
16556

1.736,00 EUR
Show product

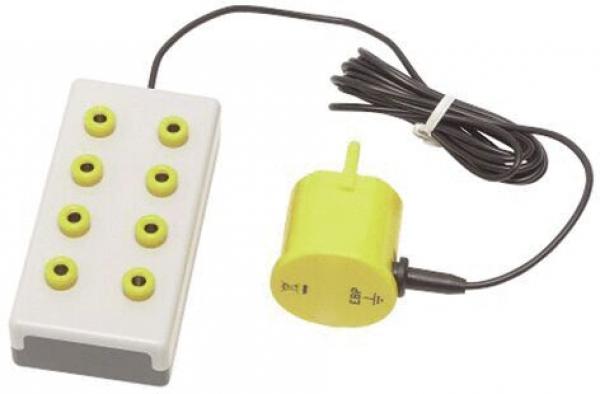

The image shows a control unit with a rectangular white base and seven yellow buttons. A round yellow part with a power button is attached by a cable.
8-fold grounding distributor
8-fold grounding distributor with Schuko
dummy plug
dpvlink
26190

81,76 EUR
Show product

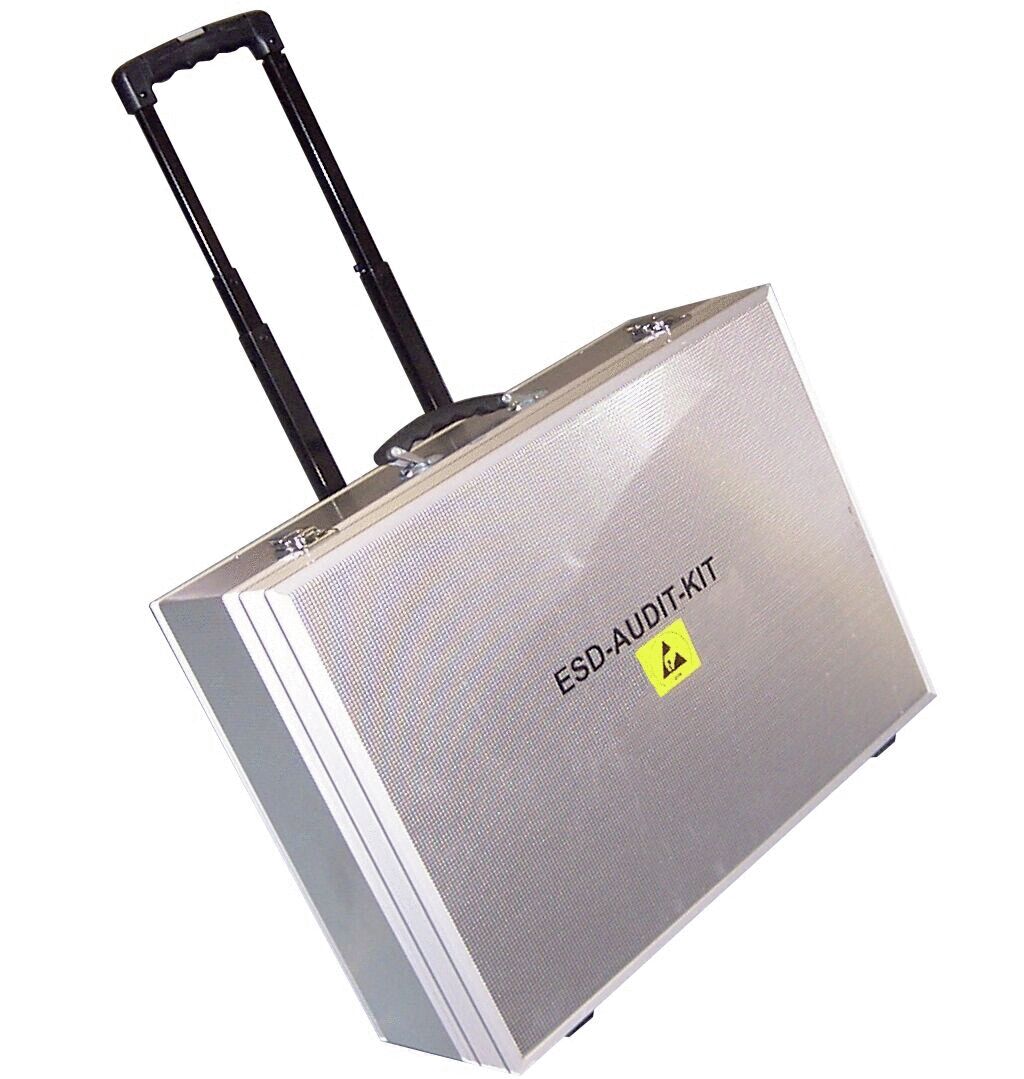

The picture shows a silver suitcase with a telescopic handle, standing on wheels. On the front, the inscription "ESD-AUDIT-KIT" is visible.
Audit case ESD empty for Metriso
ESD audit case empty
(Version for Metriso 3000/B530)
dpvlink
19753

Price on request
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 205
Complete Catalog 2023 - 2024

Product Family

ESD Audit case Metriso 3000 with walking test set and electrode

Audit set for the measuring and controle of dissipation values in ESD protective areas (EPAs). The audit cases contain the Metriso 3000 measuring device and extensive accessories. They differ in the electrodes they contain: with electrode 850 or with electrode 870.

Application:

  • Testing flooring systems acc. to IEC 61340-4-1 and to IEC 61340-4-5 (Walking test)
  • Testing chairs, workstations, shelves, transport cars and automated handling equipment acc. IEC 61340-2-3
  • Testing packaging materials acc. to IEC 61340-2-3
  • Testing electrostatic fields
  • Testing the point-to-point resistance of garments acc. to IEC 61340-4-9
  • Evaluating temperature and relative humidity
  • Evaluating Ionizers acc. to IEC 61340-4-7
  • Walking test to verify the personal charge in an EPA in accordance with DIN EN 61340-4-5


All devices are delivered including factory calibration certificate and user manual.

Technical data Metriso 3000:

Measuring voltage/measuring current:

Ohm range:
high impedance range:

1mA ≤ I ≤ 1.3 mA
DC 10, 100 and 500 V

Measuring range:

Low impedance range:

High impedance range:

0 to 10 kΩ
1 kΩ to 1.2 TΩ

Operation mode:

battery operation



Measuring voltage/measuring current:

ohm range

1mA














Article image
Article description
ESD
Recommended calibration interval
Height
Length
Width
Weight
Price
Compare
7110.600.Set.WT - ESD Audit case Metriso 3000 with walking test kit and electrode type 850
7110.600.Set.WT
ESD Audit case Metriso 3000 with walking test kit and electrode type 850
24 months bzw. according to test equipment list
250 mm
575 mm
490 mm
18 kg
5.523,00 EUR
7110.600.Set.WT.870 - ESD Audic case Metriso 3000 with walking test kit and electrode 870
7110.600.Set.WT.870
ESD Audic case Metriso 3000 with walking test kit and electrode 870
24 months bzw. according to test equipment list
250 mm
575 mm
490 mm
18 kg
5.483,00 EUR
Show Compare List (0)

This product is compatible with (for example):

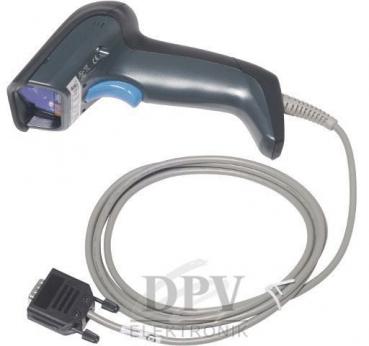

The image shows a black hand scanner with blue accents. It has a long cable connection that leads to a rectangular plug. Ideal for scanning barcodes.
