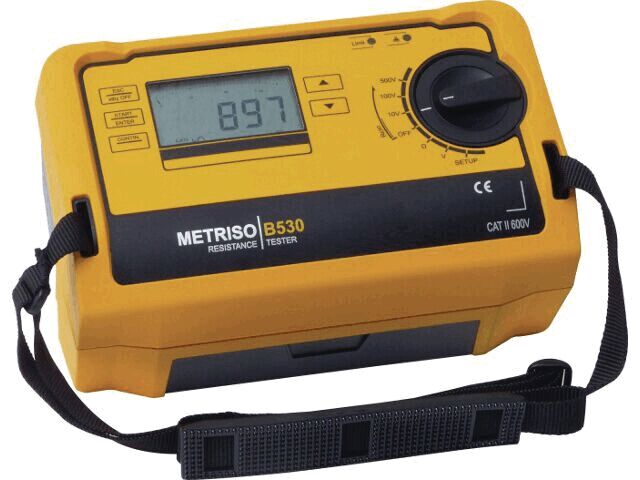

The image displays a compact, rectangular measuring device in bright yellow with a digital display and a large rotary knob. There are several buttons and a carrying strap on the side.
Metriso B530 Basic meter single
(Product No.: 7100.B530.G)
The image displays a compact, rectangular measuring device in bright yellow with a digital display and a large rotary knob. There are several buttons and a carrying strap on the side.
Notice / Inquire

Metriso B530 Basic meter single

dpvlink:
19507
Version:
single device
Recommended calibration interval:
24 months bzw. according to test equipment list
Further product information

at short notice at short notice
890,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Metriso B530 Basic meter single

The METRISO® B530 Basic is a highly precise digital megohmmeter, specifically designed for measuring point-to-point resistances and grounding resistances. It is ideally suited for checking system resistances, shoes, or ground systems. The measurement voltage of the device varies in the ohm range between 1 mA and 1.3 mA and in the megohm range between 10 V, 100 V, and 500 V. The measurement range extends in the low ohm range from 0 to 10 kOhm and in the high ohm range from 1 kOhm to 1.2 TOhm. The device is designed for battery operation, allowing for flexible use.
The dimensions of the METRISO® B530 Basic are kept compact with a width of 225 mm, a height of 130 mm, and a length of 140 mm. The package includes the measuring device itself, the measuring leads, and a factory calibration certificate. The recommended calibration interval is 24 months or according to the inspection equipment list, to always ensure precise measurement results. This measuring device represents a reliable solution for technical professionals who need to perform accurate resistance measurements.

Included:

  • Digital megohmmeter Metriso B530 and measuring leads
  • Factory calibration certificate
  • Recommended calibration interval every 2 years
Version
Version
single device
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Height
Height
130 mm
Length
Length
140 mm
Width
Width
225 mm
Show accessories
Accessories

Accessories

The image displays a device resembling a measuring instrument with a yellow surface. In the center, there is a rotatable knob with various resistance values ranging from 200 to 1 GΩ.
Verification Unit for Metriso and SRM
Verification Unit -
Resistance meter
Can be used for Metriso 3000/Metriso B530
SRM200 and SRM110
Serial no.
dpvlink
26192

270,45 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 206
Complete Catalog 2023 - 2024

Product Family

Metriso® B530 Basic measuring device

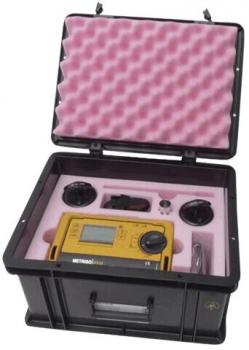

The METRISO® B530 Basic is a precise digital measuring device for determining point-to-point resistances and leakage resistances in ESD-protected areas. It is particularly suitable for testing system resistances, shoes and grounding systems. The Metriso B530 is available as a stand-alone device and as a measuring kit with an 870 or 850 electrode.

  • Suitable for measuring point-to-point resistances and bleeder resistances as well as the human/shoe/ground system resistance
  • Measured value display digital or analog, as bar graph or pointer
  • Low-ohm measuring range for checking grounding measures
  • Measuring kit:
    • Visual signaling of the voltage measurement range with LED (red and green)
    • External voltage detection with red LED
    • Electrodes 850 or 870 and hand electrode 45



Technical data:

Measuring voltage/

measuring current:

Ohm range:
high impedance range:

1mA ≤ I ≤ 1.3 mA
DC 10, 100 and 500 V

Measuring range:

Low impedance range:

High impedance rangeh:

0 to 9.99 kΩ
1 kΩ to 199 GΩ

Operation mode:

battery operation



Measuring voltage/measuring current:

ohm range

1mA

Weight

1.4 kg (single device)














Article image
Article description
ESD
Version
Recommended calibration interval
Price
Compare
7100.B530.G - Metriso B530 Basic meter single
7100.B530.G
Metriso B530 Basic meter single
single device
24 months bzw. according to test equipment list
890,00 EUR
7100.B530.MK - Metriso B530 Basic test kit, complete with measuring electrodes type 870
7100.B530.MK
Metriso B530 Basic test kit, complete with measuring electrodes type 870
complete kit, with measuring electrodes type 870
24 months bzw. according to test equipment list
1.239,35 EUR
7100.B530.MK.850 - Metriso B530 Basic test kit, complete with measurement electrodes type 850
7100.B530.MK.850
Metriso B530 Basic test kit, complete with measurement electrodes type 850
complete kit, with measuring electrodes type 850
24 months bzw. according to test equipment list
1.318,10 EUR
