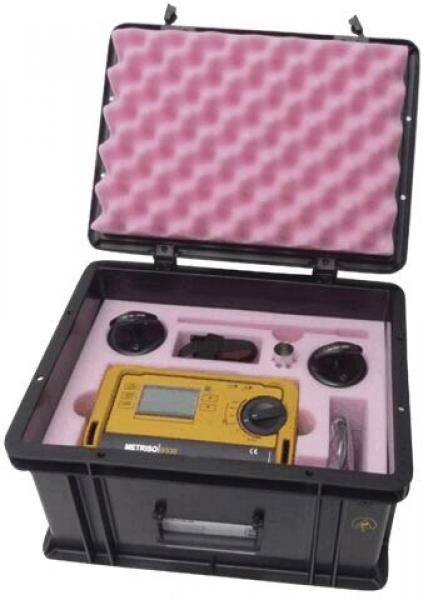

The image shows an open, black suitcase with a foam-padded interior. Inside, there is a yellow device with a display, buttons, and additional accessories.
Metriso B530 Basic test kit, complete with measurement electrodes type 850
(Product No.: 7100.B530.MK.850)
The image shows an open, black suitcase with a foam-padded interior. Inside, there is a yellow device with a display, buttons, and additional accessories.
Notice / Inquire

Metriso B530 Basic test kit, complete with measurement electrodes type 850

dpvlink:
19507
Version:
complete kit, with measuring electrodes type 850
Recommended calibration interval:
24 months bzw. according to test equipment list
Further product information

available available
1.318,10 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Metriso B530 Basic test kit, complete with measurement electrodes type 850

The Metriso B530 Basic Measurement Kit is a comprehensive set specifically designed for measuring point-to-point resistances as well as grounding resistances. It is ideally suited for checking system resistances, shoes, or flooring systems. The kit includes a digital megohmmeter, two measurement electrodes Model 850, a hand electrode Model 45, measuring leads, a multilingual instruction manual, a factory calibration certificate, and a conductive carrying case.
Technically, the device offers a measuring voltage in the low resistance range from 0 to 10 kOhm and in the high resistance range from 1 kOhm to 1.2 TOhm, with a DC voltage of 10 V, 100 V, and 500 V. The current strength in the resistance range is between 1 mA and 1.3 mA. The measurement kit is designed for battery operation and has a recommended calibration period of 24 months.
The dimensions of the device are 225 mm in width, 130 mm in height, and 140 mm in length, with a weight of 9 kg. This robust and precise measurement kit is a reliable choice for technical professionals in various industrial sectors.

Included:

  • digital megohmmeter Metriso B530 Basic
  • 2 measurement electrodes Model 850
  • 1 hand electrode Model 45, measuring leads
  • Instruction manual (German, English, French)
  • Factory calibration certificate
  • conductive carrying case
  • recommended calibration interval every 2 years
Version
Version
complete kit, with measuring electrodes type 850
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Height
Height
130 mm
Length
Length
140 mm
Width
Width
225 mm
Weight
Weight
9 kg
Show accessories
Accessories

Spares

The image shows two black, cylindrical measuring devices with a flat bottom and a rounded top. On the surface are white inscriptions about the model and technical specifications.
Measuring electrode ETS type 850
Measuring electrode model 850 ets
Diameter 63.5 mm / 2.27 kg
(DIN IEC 61340-5-1 and 61340-2-3)
dpvlink
4699

151,30 EUR
Show product
The image displays a compact, rectangular measuring device in bright yellow with a digital display and a large rotary knob. There are several buttons and a carrying strap on the side.
Metriso B530 Basic meter single
Metriso B530 basic meter with cables
consisting of:
-digital high resistance meter Metriso B530 +
connecting cables
-Calibration certificate
(without accessories)

Serial No.:
dpvlink
19507

890,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 206
Complete Catalog 2023 - 2024

Product Family

Metriso® B530 Basic measuring device

The METRISO® B530 Basic is a precise digital measuring device for determining point-to-point resistances and leakage resistances in ESD-protected areas. It is particularly suitable for testing system resistances, shoes and grounding systems. The Metriso B530 is available as a stand-alone device and as a measuring kit with an 870 or 850 electrode.

  • Suitable for measuring point-to-point resistances and bleeder resistances as well as the human/shoe/ground system resistance
  • Measured value display digital or analog, as bar graph or pointer
  • Low-ohm measuring range for checking grounding measures
  • Measuring kit:
    • Visual signaling of the voltage measurement range with LED (red and green)
    • External voltage detection with red LED
    • Electrodes 850 or 870 and hand electrode 45



Technical data:

Measuring voltage:

10 V, 100 V, 500 V DC

Resistance range:

1 kΩ to 199GΩ (high-impedance range)

1 Ω to 10 kΩ (low-impedance range)

Electrodes (measuring kit):

2x model 850 or 2x 870

1x hand electrode model 45

Operating mode:

battery operation

Dimensions (WxHxD):

225 x 130 x 140 mm

Weight:

1.4 kg (single device)

9 kg (complete kit)




Article image
Article description
ESD
Version
Recommended calibration interval
Price
Compare
7100.B530.G - Metriso B530 Basic meter single
7100.B530.G
Metriso B530 Basic meter single
single device
24 months bzw. according to test equipment list
890,00 EUR
7100.B530.MK - Metriso B530 Basic test kit, complete with measuring electrodes type 870
7100.B530.MK
Metriso B530 Basic test kit, complete with measuring electrodes type 870
complete kit, with measuring electrodes type 870
24 months bzw. according to test equipment list
1.239,35 EUR
7100.B530.MK.850 - Metriso B530 Basic test kit, complete with measurement electrodes type 850
7100.B530.MK.850
Metriso B530 Basic test kit, complete with measurement electrodes type 850
complete kit, with measuring electrodes type 850
24 months bzw. according to test equipment list
1.318,10 EUR
