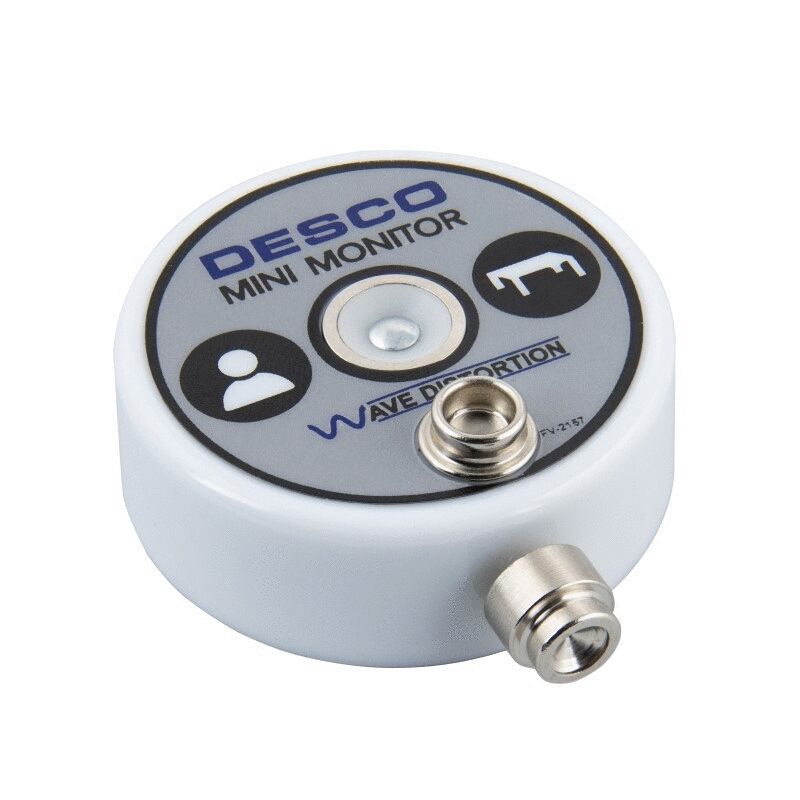

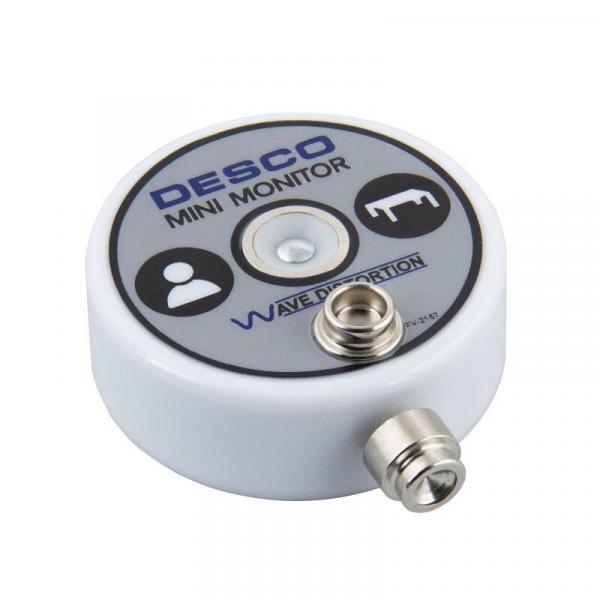

The image shows a round, white mini-monitor with a smooth top. On the top are symbols and the text "DESCO MINI MONITOR" as well as a connection on the side.

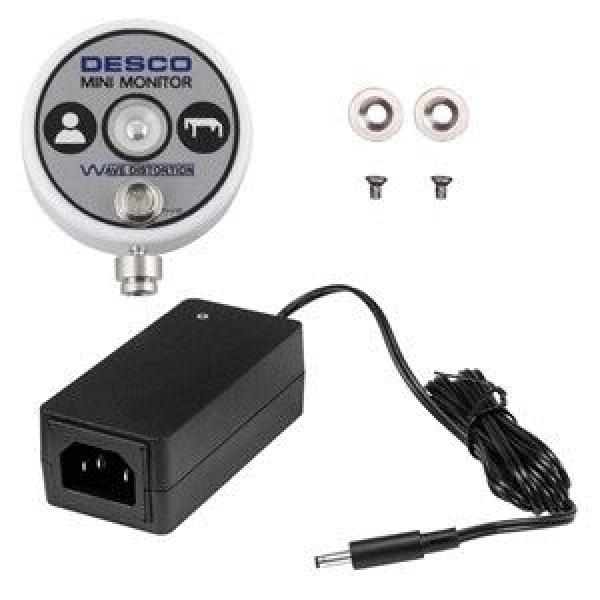

The image displays a round device with a black casing and a small monitor in the center. Next to it, there are two metal rings and screws, as well as a black power supply with cable depicted.
Preview: The image shows a round, white mini-monitor with a smooth top. On the top are symbols and the text "DESCO MINI MONITOR" as well as a connection on the side.
Preview: The image displays a round device with a black casing and a small monitor in the center. Next to it, there are two metal rings and screws, as well as a black power supply with cable depicted.
Mini Monitor surveillance monitor with 10mm snap
(Product No.: 7111.19343)
The image shows a round, white mini-monitor with a smooth top. On the top are symbols and the text "DESCO MINI MONITOR" as well as a connection on the side.
The image displays a round device with a black casing and a small monitor in the center. Next to it, there are two metal rings and screws, as well as a black power supply with cable depicted.
Mobile Preview: The image shows a round, white mini-monitor with a smooth top. On the top are symbols and the text "DESCO MINI MONITOR" as well as a connection on the side.
Mobile Preview: The image displays a round device with a black casing and a small monitor in the center. Next to it, there are two metal rings and screws, as well as a black power supply with cable depicted.
Notice / Inquire

Mini Monitor surveillance monitor with 10mm snap

dpvlink:
30286
Ø:
63 mm
Height :
21 mm
Version:
with 10 mm snap
Test voltage:
9 V
Further product information

Delivery time! Delivery time!
239,00 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Mini Monitor surveillance monitor with 10mm snap

The Desco Mini Monitor is an advanced surveillance monitor for ESD-protected workplaces, specifically designed for indoor use. This device offers continuous monitoring of the path-to-ground integrity for both the operator and the ESD work surface. Equipped with innovative Wave Distortion Technology, the monitor enables stable and continuous monitoring of the grounding connection and the 1-Megohm resistance of the operator's wristband.
The Mini Monitor is distinguished by its optical and acoustic alarm functions, which are activated within less than 50 milliseconds if a disruption in the grounding connection occurs. The illuminated housing displays the status through different colors: Green for correct grounding, Red for connection errors, and Blue in standby mode.
In addition, the device includes an AC/DC power adapter, supports an input voltage of 100–240 VAC, and provides an output voltage of 9 VDC. The operating temperature ranges from 10 to 35 °C, and the maximum relative humidity is 80% up to a temperature of 30 °C, thereafter decreasing to 50%.
The dimensions of the monitor are 63 mm in diameter and 21 mm in height, with a light weight of only 44 g. The Mini Monitor is exclusively suitable for use at altitudes below 2,000 m and offers impedance testing for the operator from 500 kΩ to 10 MΩ.
Ø
Ø
63 mm
Height
Height
21 mm
Version
Version
with 10 mm snap
Test voltage
Test voltage
9 V
Voltage
Voltage
100 - 240 V
Humidity
Humidity
80 %
Operating temperature
Operating temperature
10 - 35 °C
Weight
Weight
44 g
Show accessories
Accessories

Accessories

The image shows a handy measuring device with a silver casing. It has a round dial in the center and two cables with plugs in different colors sticking out.
Control unit type 98221 for surveillance...
Verification unit type 98221 for
surveillance monitor ES-19.652
dpvlink
30292

891,00 EUR
Show product

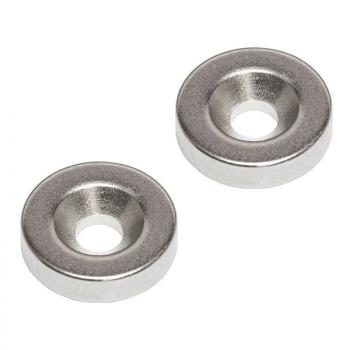

The image shows two flat, round metal discs with a central hole. The surfaces are shiny and reflect light, and the edge is slightly raised.
Ring magnets for Mini Monitor
Ring magnets for Mini Monitor 7111.19342/19343
dpvlink
30292

13,00 EUR
Show product
Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

Mini moitors

The Desco Mini Monitor is a continuous monitor for a single workstation. It continuously monitors the path-to-ground integrity of an operator and an ESD work surface. The illuminated housing makes the status of the operator and work surface clearly visible to the operator and supervisor.

The mini monitor is designed with Wave Distortion Technology to provide stable, continuous monitoring of the operator's wrist grounding and 1-megohm resistance. Audible and visual alarms are activated (in less than 50 milliseconds) if the operator unintentionally disconnects from the monitor or if the wrist strap connection points are interrupted. The Mini Monitor also monitors that the path between the work surface and ground is less than 10 megohms. All Mini Monitors are calibrated to NIST standards. (When connected to a grounded outlet, the device is automatically grounded and therefore ESD-safe.)

The mini monitors are available with a 4mm or a 10mm snap.



  • Continuous single workstation monitor: continuously monitors the path-to-ground integrity of an operator and an ESD work surface
  • Illuminated housing: makes the status of the operator and work surface clearly visible to the operator and supervisor
  • Enhanced continuous visual and audible alarms: illuminates green to indicate proper grounding; illuminates red and emits an audible alarm when disconnected or fails; illuminates blue to indicate standby mode
  • Park Delay Timer and ParkSnap™: indicates the 8-second delay to disconnect the operator's wrist cable and park without triggering a false alarm
  • Mat Monitor Switch: deactivates the work surface monitoring circuit when the device is used in areas where there is no ESD work surface
  • Audible alarm setting: adjusts the volume of the audible alarm from loud to louder
  • Wave Distortion Technology: enables stable, continuous monitoring (as opposed to pulsed or intermittent signals) of the wrist strap ground path and the presence of the 1 megohm safety resistance
  • Threaded grounding and work surface attachment: grounding and monitoring of the work surface without additional cable
  • Single-wire impedance design: meets ANSI/ESD S20. 20 in accordance with ESD TR1.0-01-0
  • 1.2 volt test voltage for the operator: reduces the risk of electrical overstress (EOS) when handling sensitive components
  • Alarm response time <50 milliseconds: identifies failures and interruptions that are overlooked by inferior technologies
  • Available with 4 mm or 10 mm snap
