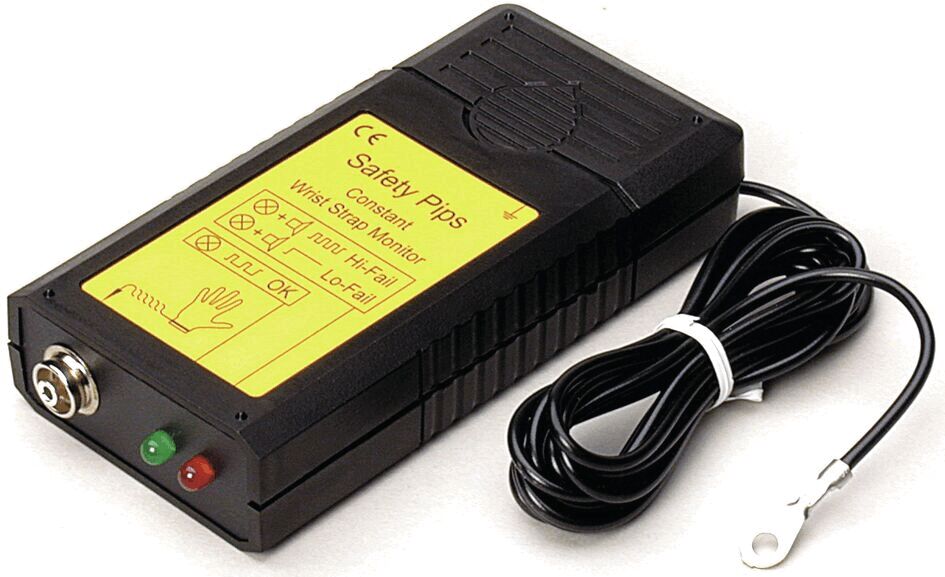

The image shows a black security device with yellow labeling. It has a connection on the front, two colored LEDs (red and green), and a cable leading out from the side.
Tester Safety Pips with warning signal
(Product No.: 7100.181)
The image shows a black security device with yellow labeling. It has a connection on the front, two colored LEDs (red and green), and a cable leading out from the side.
Notice / Inquire

Tester Safety Pips with warning signal

dpvlink:
4649
Width :
60 mm
Height :
26 mm
Length :
125 mm
Recommended calibration interval:
24 months bzw. according to test equipment list
Voltage:
9 V
Further product information

available available
105,75 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Tester Safety Pips with warning signal

The Safety Pips testing device is distinguished by its functionality for the continuous monitoring of joint band systems. It is specifically designed to signal interruptions in grounding through acoustic and optical warning signals. The device is designed to operate with 9V batteries and is compatible with standard spiral cables with a 10 mm diameter push button.
The technical specifications include an operating voltage of 9 V, a battery life of more than one year with daily usage of up to 8 hours, and a capacitive impedance measurement. The measurement range is between 1 MOhm and (100 pF + 2 MOhm), with the good range defined as HI-Fail over 5 MOhm and LO-Fail under 400 kOhm. The test voltage varies from less than 0.01 volts in DC to 4.00 volts in AC.
The device has a compact shape with dimensions of 125 x 60 x 26 mm and a weight of approximately 140 g including the battery. The casing is made of black, conductive ABS, except for the type plate. It can be operated in an environment of 10°C to 40°C and a relative humidity of 20% to 80%. The recommended calibration interval is 24 months or as per the testing equipment list.
Width
Width
60 mm
Height
Height
26 mm
Length
Length
125 mm
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Voltage
Voltage
9 V
Test voltage
Test voltage
0.01 - 4.00 V
Humidity
Humidity
20 - 80 %
Weight
Weight
140 g
Show accessories
Accessories

Accessories

The image displays a black device with yellow lettering. It features a round dial in the center and two connectors. Next to the device, there is a small, black pen with two metallic tips.
Calibration unit for Safety Pips
Calibration unit for Safety Pips
dpvlink
30292

155,60 EUR
Show product
The image displays a rectangular, flat metal bracket. It has cut-out openings and features a silver, shiny surface. The edges are sharp and clearly defined.
Bracket for Safety Pips
Holder for Safety Pips
dpvlink
30292

17,55 EUR
Show product
The image shows a security device with a black casing and a yellow label. It has a cable connection to a control box with three buttons that light up green.
Additional module for Safety Pips
Additional module with bicolored LEDs
Safety Pips K with signal contact
connecting cable 2 m
dpvlink
30292

63,85 EUR
Show product
The image displays a calibration certificate featuring the logo of DPV Electronics, surrounded by two documents. In the corner, there is a black device with a yellow sticker and a cable.
Calibration for Safety Pips
Calibration for Safety Pips incl. certificate
dpvlink
26315

54,65 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 203
Complete Catalog 2023 - 2024

Product Family

Safety Pips

The Safety Pips is available in three versions: Safety Pips standard version with battery operation, Safety Pips K with warning signal (power supply unit) and Safety Pips with 10 mm snap and grounding plug

  • Handy test device for permanent monitoring of wrist strap systems.
  • Monitoring of the connecting cable from the device to the wrist strap and contact between the wrist strap and the skin
  • Indication of an interruption in earthing via a warning signal (visual and acoustic or via potential-free relay contact)
  • Power supply with battery or power supply unit (depending on version)
  • Measurement type: capacitive measurement of impedance
  • Dimensions 125 x 60 x 26 mm

Technical data (Safety Pips standard and with grounding plug)

Threshold wriststrap test

Display

OK

1 MOhm - 2 MOhm + 100 pF (+/- 10%)

green

HI Fail

< 5 MOhm

red (flashing)

LO Fail

< 400 kOhm

red (permanently)

Prüfstrom bei 1 MOhm

DC < 0.1 µA; AC < 1.0 µA

Technical data (Safety Pips with signal contact)

Threshold wriststrap test

Display

Signal contact

OK

1 MOhm - 2 MOhm + 100 pF (+/- 10%)

green

closed

HI Fail

< 5 MOhm

red (flashing)

open

LO Fail

< 400 kOhm

red (permanently)

open

Test current at 1 MOhm

DC < 0.1 µA; AC < 1.0 µA

Time delay

Switch on: 1 second

Switch off: 5 seconds

Contact load

max. 60 V, 0.2 A


Article image
Article description
ESD
Width
Height
Length
Recommended calibration interval
Voltage
Version
Price
Compare
7100.181 - Tester Safety Pips with warning signal
7100.181
Tester Safety Pips with warning signal
60 mm
26 mm
125 mm
24 months bzw. according to test equipment list
9 V

105,75 EUR
7100.181.EB - Tester Safety Pips with warning signal incl. grounding plug
7100.181.EB
Tester Safety Pips with warning signal incl. grounding plug
60 mm
26 mm
125 mm
24 months bzw. according to test equipment list
230 V
incl. grounding plug
120,65 EUR
7100.181.K - Tester Safety Pips with signal contact
7100.181.K
Tester Safety Pips with signal contact
60 mm
26 mm
125 mm
24 months bzw. according to test equipment list
230 V
with signal contact
152,65 EUR
