The image displays a red heat press. The upper part is foldable, featuring a black surface. On the underside, rollers and a conspicuous rail are visible.
PCSA 1 ESD assembly frame
(Product No.: 690.101.ESD)
The image displays a red heat press. The upper part is foldable, featuring a black surface. On the underside, rollers and a conspicuous rail are visible.
Notice / Inquire

PCSA 1 ESD assembly frame

dpvlink:
3036
Properties:
Further product information

available available
289,65 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

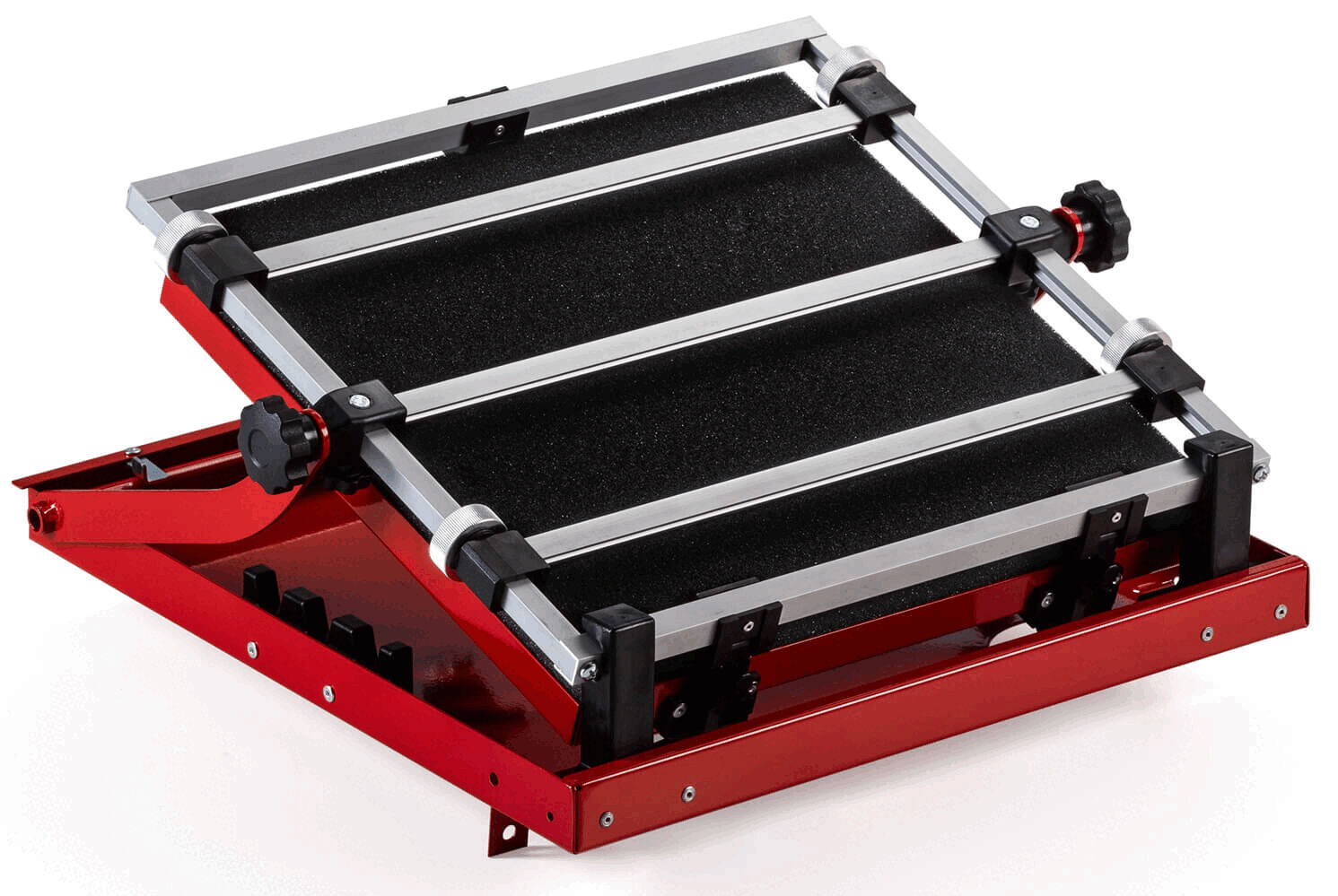

PCSA 1 ESD assembly frame

The PCSA 1 ESD assembly frame is specifically designed for mass production, to facilitate the placement and soldering of printed circuits. This assembly frame accommodates a maximum PCB size of 270 x 220 mm. The circuit boards are securely placed between two adjustable guide rails and fixed with braking knurled nuts. A special feature is the removable middle bar, which allows for flexible use of the workspace.

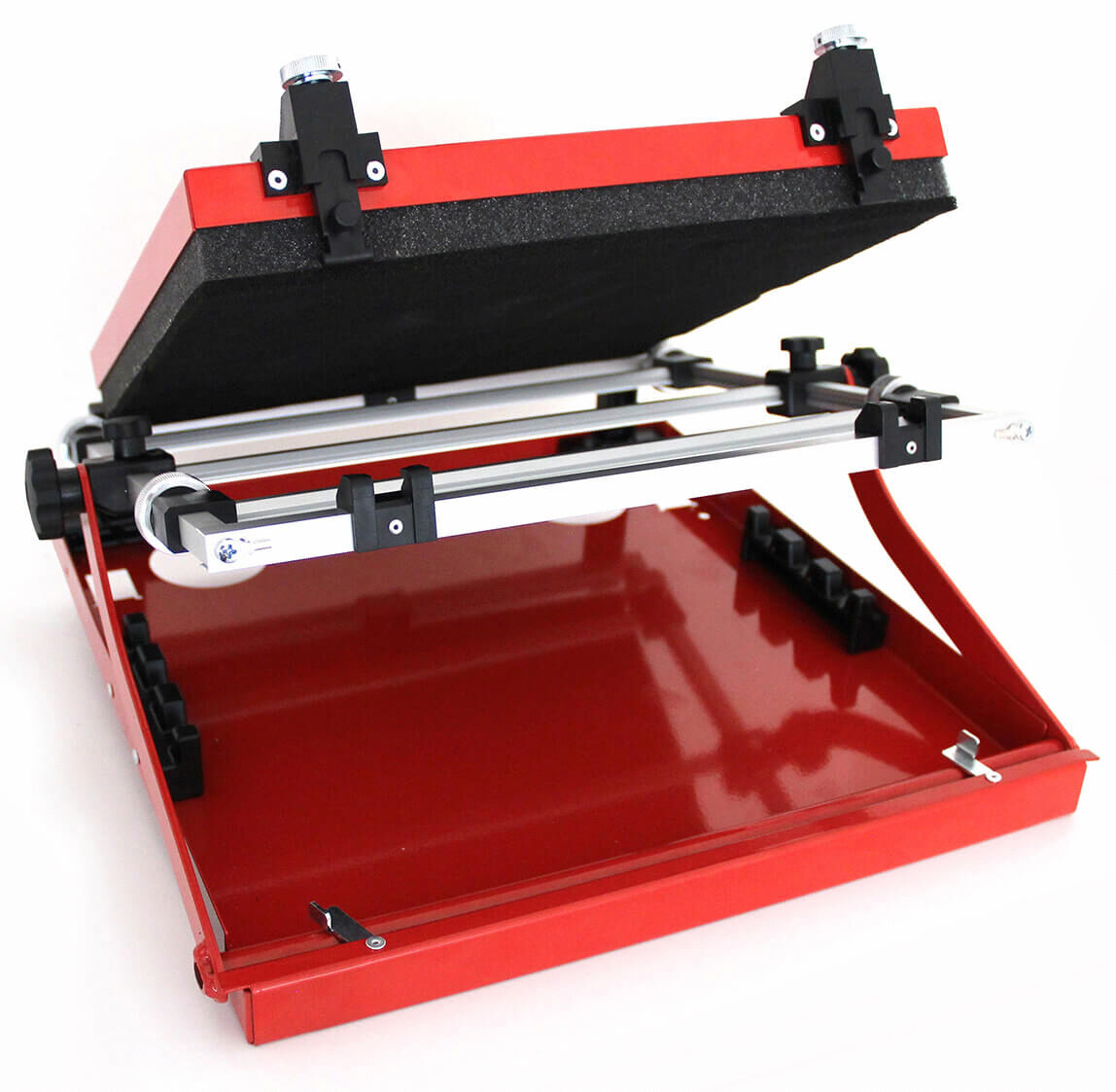

After assembly, a cover plate with ESD foam insert protects the components and keeps them in place with an adjustable distance to the frame. The lid of the frame closes by spring force and allows for easy restoration of the working position by swinging up and rotating the holder.
The assembly frame meets the ESD standard DIN EN 61340-5-1 and ensures safe fixation of the components during soldering and cutting. Additionally, the frame can be easily removed and transported to the next workstation, making it an ideal tool for efficient manufacturing processes.
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
Additional rail for PCSA 1, complete
Additional rail BS-PCSA-1 ( for PCSA-1)
incl. 2 x BS lateral retaining screw
locking device
dpvlink
3047

22,40 EUR
Show product
The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
Additional rail for PCSA 2, complete
Additional rail BS-PCSA-2 ( for PCSA-2)
incl. 2 x BS lateral retaining screw
locking device
dpvlink
3047

29,00 EUR
Show product
The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
Additional rail for PCSA 4, complete
Additional rail for PCSA 4
incl. 2 x BS lateral retaining screw
locking device
dpvlink
3047

29,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 531
Complete Catalog 2023 - 2024

Product Family

PCSA assembly frames

The assembly frames facilitate the equipping and soldering of PCBs, especially for series production.

The PCB are placed and held between the guide rails by locking knurled nuts. The central rail is removable allowing an optimal use of the working surface.

After the assembly the components are pressed by the cover plate with ESD foam insert. The distance of the pressure plate to the frame is adjustable, the lid is closed by springs. The PCBs are moved back into the working position by the raising and turning of the holder.

During the soldering and cutting, the components are held safely. The holding frame can be simply removed and transported to the next workstation.

The assembly frames are equipped with 1 central bar and 2 adjustable guide rails

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Price
Compare
690.104.ESD - PCSA 4 ESD assembly frame
690.104.ESD
PCSA 4 ESD assembly frame
353,50 EUR
690.101.ESD - PCSA 1 ESD assembly frame
690.101.ESD
PCSA 1 ESD assembly frame
289,65 EUR
690.102.ESD - PCSA 2 ESD assembly frame
690.102.ESD
PCSA 2 ESD assembly frame
321,85 EUR
Show Compare List (0)

Customers who bought this product also bought the following products:

The image shows a gray work glove with a tightly woven structure. On the palm, it reads "LE0 200" along with additional information. The glove appears flexible and comfortable.
ESD glove LEO 200
Gloves ESD, LEO 200, textile light grey "EPAglove"
available sizes: XS, S, M, L, XL, XXL
+++ not washable +++
dissipative (DIN EN 61340-5-1)
dpvlink
8343

1,30 EUR
Show product
The image shows a slim, vertical bottle with a round, white cap. It has a light blue color and a simple logo in black that incorporates a kind of arrow.
Preview: I.C. hand moisturizing lotion "BLUE" ESD 235 ml
Preview: The image shows five bottles of hand lotion in various sizes. The containers are white and light blue, some featuring pump tops. All are labeled
I.C. hand moisturizing lotion "BLUE" ESD...
I. c. hand moisturizing lotion ESD "BLUE"
235 ml (8 oz) / tube ICL-8-ESD
dispenser bottle dissipative
++ improves contacting of wrist straps ++
dpvlink
7555

15,80 EUR
Show product
The container is rectangular, made of black plastic, with vertical grooves on the sides. It has an open top and a sturdy, flat base. Ideal for storing items.
ESD Storage box
ESD storage box 225 x 150 x 125 mm /
outside (DxWxH), electrically conductive
(DIN EN 61340-5-1)
dpvlink
23271

5,40 EUR
Show product

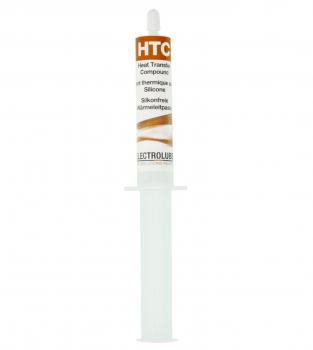

The image shows a syringe with a white and orange packaging. The imprint includes the text "HTC" and describes the product as thermal paste for electronics.
