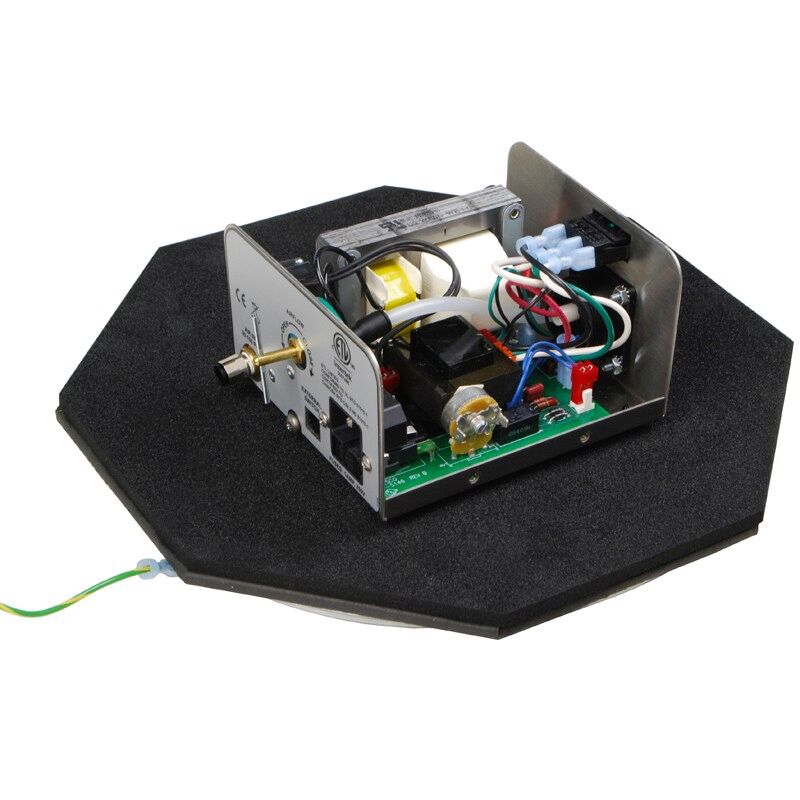

The image shows an electronic device on a hexagonal base. It consists of a casing with various cables and components, including a green circuit board and several connectors.
Preview: The image shows a flat, hexagonal plate in black. The surface is smooth, and the edges are even and clearly defined. The plate appears stable and solid.
Preview: The image shows an electronic device on a hexagonal base. It consists of a casing with various cables and components, including a green circuit board and several connectors.
ESD turntable
(Product No.: 5805.47200)
The image shows a flat, hexagonal plate in black. The surface is smooth, and the edges are even and clearly defined. The plate appears stable and solid.
The image shows an electronic device on a hexagonal base. It consists of a casing with various cables and components, including a green circuit board and several connectors.
Mobile Preview: The image shows a flat, hexagonal plate in black. The surface is smooth, and the edges are even and clearly defined. The plate appears stable and solid.
Mobile Preview: The image shows an electronic device on a hexagonal base. It consists of a casing with various cables and components, including a green circuit board and several connectors.
Notice / Inquire

ESD turntable

dpvlink:
18699
Ø:
318 mm
Thickness :
25 mm
Load capacity :
23 kg
Material:
steel / polyethylene
Properties:
Further product information

Delivery time! Delivery time!
113,25 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD turntable

The ESD turntable is distinguished by its high-quality materials and technical specifications, making it ideal for use in ESD-sensitive environments. The top material is made from a 6 mm thick, conductive, cross-linked polyethylene foam in black, while the bottom is made from galvanized steel. This construction not only ensures high durability but also reliable conductivity that meets the ESD standard DIN EN 61340-5-1.
The plate has a diameter of 318 mm and a thickness of 25 mm, allowing for a very low profile. Despite this low height, the turntable can support a maximum load of up to 23 kg. These features make it an excellent choice for technical applications where both space economy and ESD protection are required.
Ø
Ø
318 mm
Thickness
Thickness
25 mm
Load capacity
Load capacity
23 kg
Material
Material
steel / polyethylene
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 531
Complete Catalog 2023 - 2024

Product Family

ESD turntables octagon

Upper material: conductive, cross-linked PE foam (6 mm), black

Base: galvanized steel turntable

Profile height: very low  (25 mm)

Load capacity max. 23 kg

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
ESD
Ø
Thickness
Load capacity
Material
Price
Compare
5805.47200 - ESD turntable
5805.47200
ESD turntable
318 mm
25 mm
23 kg
steel / polyethylene
113,25 EUR
5805.47201 - ESD turntable
5805.47201
ESD turntable
394 mm
25 mm
23 kg
steel / polyethylene
120,10 EUR
