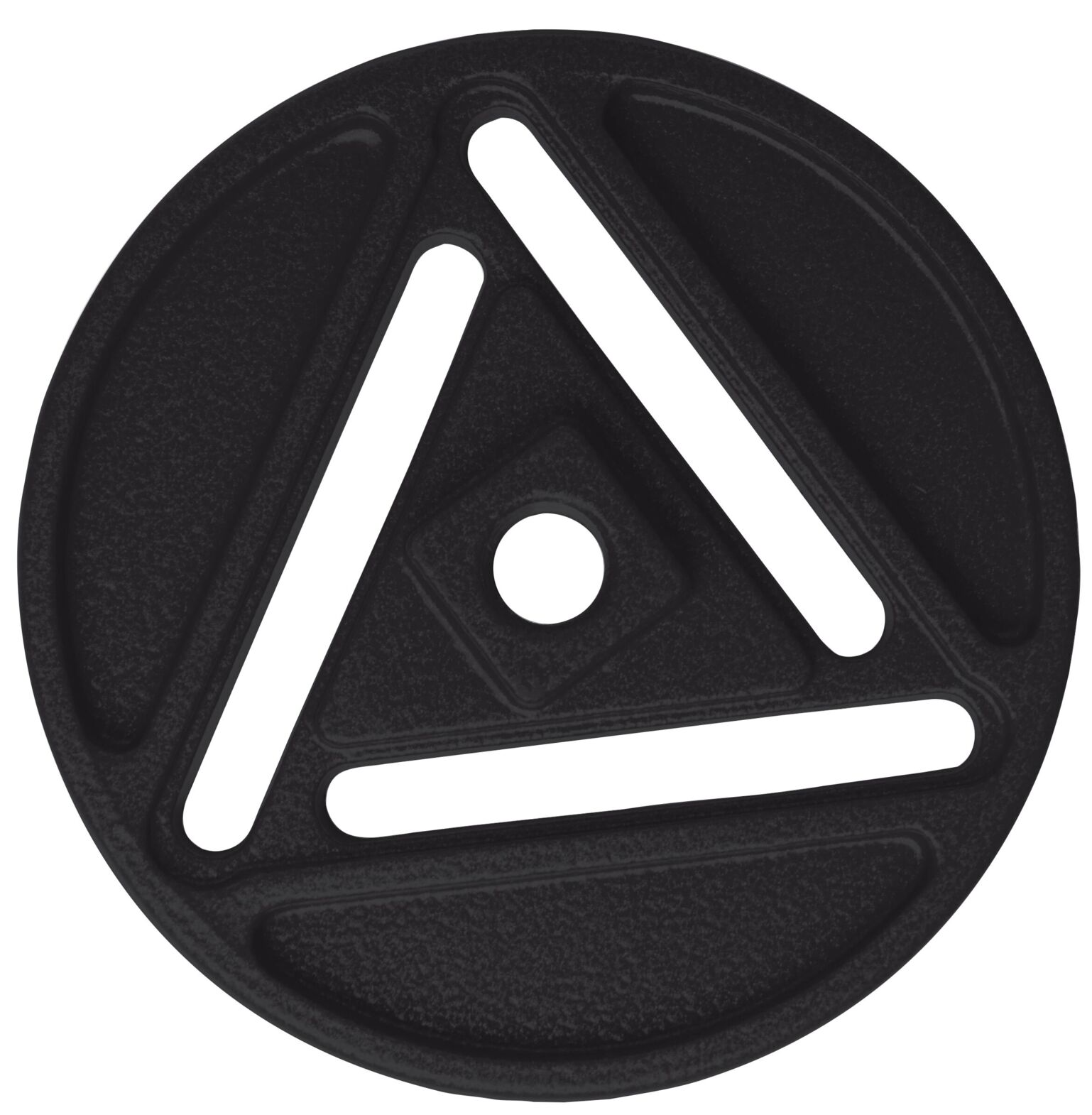

The image shows a round, black plate with a pattern in the shape of an equilateral triangle and a small, round indentation in the middle. There are three white lines that form the pattern.
Universal screw-on plate ESD SPANNFIX
(Product No.: 9-254.ESD)
The image shows a round, black plate with a pattern in the shape of an equilateral triangle and a small, round indentation in the middle. There are three white lines that form the pattern.
Notice / Inquire

Universal screw-on plate ESD SPANNFIX

dpvlink:
6968
Properties:
Further product information

at short notice at short notice
27,40 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Universal screw-on plate ESD SPANNFIX

The ESD Universal Clamping Board SPANNFIX, manufactured by Bernstein, is a high-quality solution for technical applications where components need to be securely and precisely fixed. It is specifically designed for use in ESD-sensitive environments and is distinguished by its black color. The clamping board is equipped with elaborately crafted slots suitable for standard screws. This allows for the assembly of prototypes or the secure holding of components such as tuners, line transformers, or speakers. Weighing 0.10 kg, the clamping board is lightweight yet robust, ideal for versatile applications in electronics manufacturing and maintenance. Its modularity allows for the combination of SPANNFIX Vario individual elements as needed, enabling flexible adaptation to various project requirements.
Color
Color
black
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
ESD
ESD
yes
Weight
Weight
95 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 530
Complete Catalog 2023 - 2024

Product Family

Universal screw-on plate SPANNFIX

Slots made for common standard screws, for the construction of prototypes or for holding e.g. tuner, line output transformer, loudspeakers etc.

Weight: 95 g


Article image
Article description
ESD
Color
Surface resistance Rs
ESD
Weight
Price
Compare
9-254.ESD - Universal screw-on plate ESD SPANNFIX
9-254.ESD
Universal screw-on plate ESD SPANNFIX
black
107 - 108 Ω
yes
95 g
27,40 EUR
9-254 - Universal screw-on plate SPANNFIX
9-254
Universal screw-on plate SPANNFIX
grey

no
95 g
26,25 EUR
