Diagonal cutting pliers TR-30.D
Diagonal cutting pliers TR-30.D

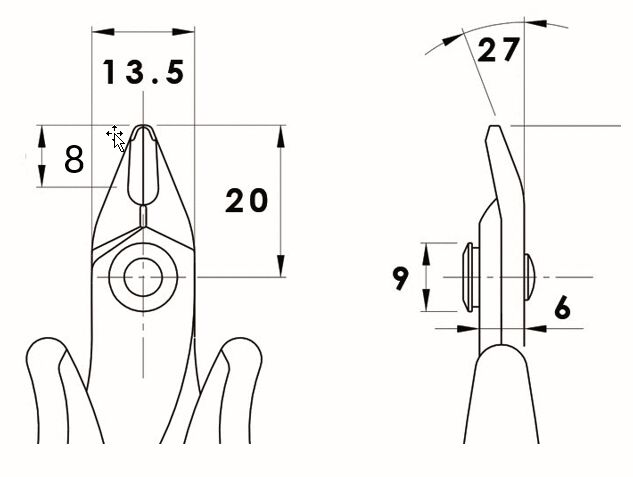

The side cutter TR-30.D by Piergiacomi is a high-quality, flush cutting tool specifically designed for precise cutting of copper wire and other ductile materials. This model features an ergonomic, non-slip dual-component handle that ensures secure handling. The surface of the tool has been treated with an anti-glare phosphatization treatment to minimize reflections and enhance durability.Technically, the side cutter is equipped with a small, angled head shape that has a head width of 13.5 mm and a head thickness of 6 mm. The blade length is 10 mm, while the total length of the tool measures 138 mm. The maximum diameter for soft material is 1.29 mm. Additionally, the side cutter is ESD-safe and made from robust steel, making it particularly resistant to physical impacts. With a cutting force of 5.5 kg and a bending degree of 27°, this tool enables efficient and controlled work.
Details
- Length Length
- 138 mm
- Bevel Bevel
- without bevel
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 8 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5.5 kg
- Head type/size Head type/size
- small
- Head width Head width
- 13.5 mm
- Jaw length Jaw length
- 20 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Piergiacomi ESD Diagonal cutting pliers series Evolution
Article image
Article description
ESD
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
-26%
138 mm
without bevel
angled
27 °
1.29 mm
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
reversed bevel
angled
27 °
1.29 mm
160 mm
without bevel
angled
25 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
small bevel at 1.5 mm height
angled
27 °
1.29 mm
138 mm
mini bevel
angled
27 °
1,63 mm
with opening spring
138 mm
without bevel
angled
27 °
1,63 mm
with opening spring
138 mm
mini bevel
angled
27 °
2.05 mm
with opening spring
138 mm
without bevel
angled
27 °
2.05 mm
with opening spring
