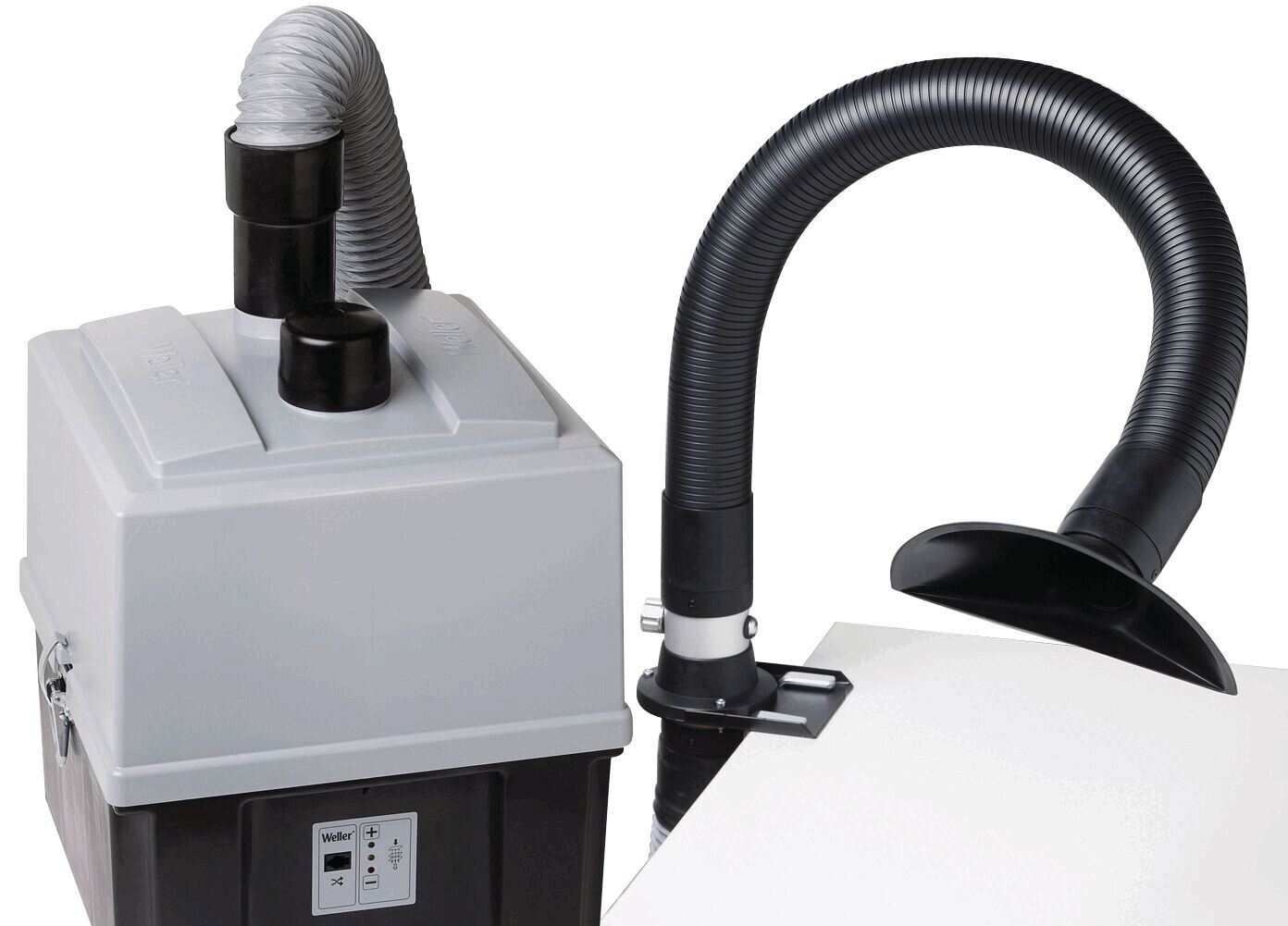

The image displays a gray device with a rounded lid and a hose that curves upward in an arch-like shape. The hose features a wide, open nozzle.
Zero Smog TL Kit 1 FN
(Product No.: FT91015699)
The image displays a gray device with a rounded lid and a hose that curves upward in an arch-like shape. The hose features a wide, open nozzle.
Notice / Inquire

Zero Smog TL Kit 1 FN

dpvlink:
20604
Further product information

at short notice at short notice
1.228,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Zero Smog TL Kit 1 FN

The Weller Zero Smog TL Kit 1 FN is a highly functional, portable solder fume extraction unit, ideal for use in various work environments. With dimensions of 355 mm in width, 455 mm in height, and 330 mm in length, and weighing 9 kg, the device can be flexibly positioned and easily transported. Its strong suction power and the innovative Easy-Click System allow for effective and quick assembly of the device.
Thanks to the beveled metal nozzle and the additional ALFA funnel nozzle included, solder fume can be captured directly at the source and distributed over larger areas. The noise level of the device is a moderate 50 dB. With a power output of 120 W and a voltage of 220 - 240 V, the kit is particularly energy-efficient. Long filter life and an automatic filter change notification system, which sends both optical and acoustic signals, ensure easy maintenance and enhance user-friendliness.
The package includes the extraction unit, a flexible extraction arm, a remote control, a shut-off valve with table mount, and a 3-meter-long extraction hose. The pre-filter of the device is separately replaceable, offering additional flexibility and cost savings.
Noise level
Noise level
50 dB
Power
Power
120 W
Voltage
Voltage
220 - 240 V
Height
Height
455 mm
Length
Length
330 mm
Width
Width
355 mm
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

The image displays a flexible, corrugated hose in black. It features smooth openings at both ends and is shaped in an arc. Ideal for connecting to devices or apparatuses.
Preview: Extraction arm, flexible 1m
Preview: The image shows a flexible, black hose with a corrugated surface. It is bent and has a connector at one end with an arrow marking indicating the direction.
Preview: The image shows a long, slender, black plastic cylinder. It has a smooth surface at one end and is covered with fine grooves on the rest of it.
Extraction arm, flexible 1m
Extraction arm, flexible, 60 mm diameter
for sloped and funnel-shaped nozzles
Length max. 1 m, ESD safe
dpvlink
15097

88,05 EUR
Show product

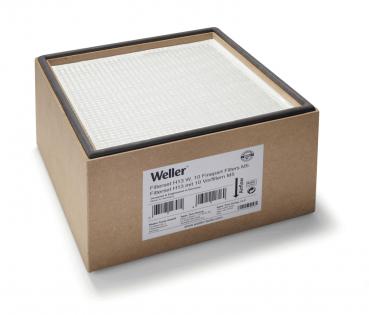

The image shows a square box made of brown cardboard with a white, diamond-shaped grid pattern on the top. Label on the side reads "Weller".
Particulate filter F7 for Zero Smog TL
Particulate filter F7 for Zero Smog TL
PU = 10 pieces
dpvlink
19148

74,65 EUR
Show product

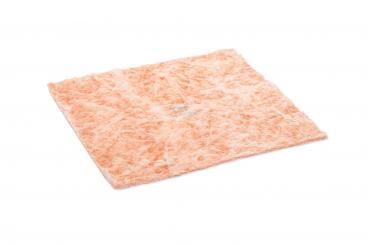

The image shows a rectangular, flat plate in a bright, orange color. The surface appears somewhat uneven and fibrous, with no discernible patterns or details.
Filter set for Zero Smog TL
Prefilter for WFE 2ES
10 pieces / PU
dpvlink
19148

234,50 EUR
Show product

Spares

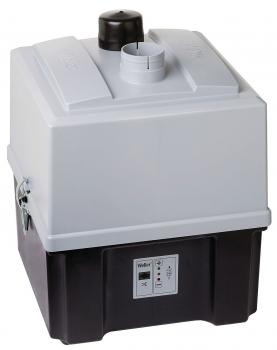

The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
Zero Smog TL solder fume extraction unit
with filter level display
120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1.020,30 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 630
Complete Catalog 2023 - 2024

Product Family

Zero Smog TL solder fume extraction kits

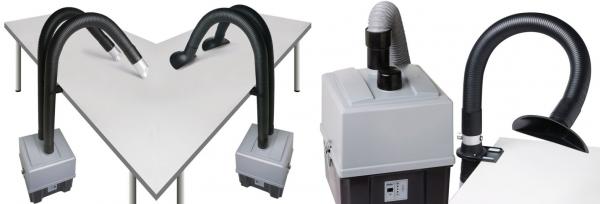

The Weller Zero Smog TL kits are complete solutions for solder fume extraction that have been specially put together for various workplace requirements. These kits contain all the necessary components to ensure efficient extraction of soldering and adhesive fumes and improve the air quality in the workplace. The kits contain the Zero Smog TL extraction unit and, depending on the version, 1 or 2 extraction arms and various nozzles (funnel nozzle or beveled nozzle).

  • Economical extraction for cleaning the air at 1 - 2 workstations
  • Fine dust pre-filter F7 and extra-large HEPA H13 filter surface with 2.4 m² for particularly long filter service life
  • Variable power control to adapt the extraction power to specific requirements
  • Low noise emission level for quiet working areas (< 50 dB)
  • Automatic filter change notification system (visual and audible)
  • Easy to operate and simple filter change
  • 1 or 2 flexible extraction arms
  • with funnel nozzle(s) or beveled nozzles
  • Shut-off valve with table mounting or mounting clamps

Article image
Article description
Noise level
Power
Voltage
Height
Length
Width
Weight
Price
Compare
FT91015699 - Zero Smog TL Kit 1 FN
FT91015699
Zero Smog TL Kit 1 FN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1.228,00 EUR
FT91017699 - Zero Smog TL Kit 2 FN
FT91017699
Zero Smog TL Kit 2 FN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1.239,50 EUR
FT91016699 - Zero Smog TL Kit 2 SN
FT91016699
Zero Smog TL Kit 2 SN
50 dB
120 W
220 - 240 V
455 mm
330 mm
355 mm
9 kg
1.226,10 EUR
