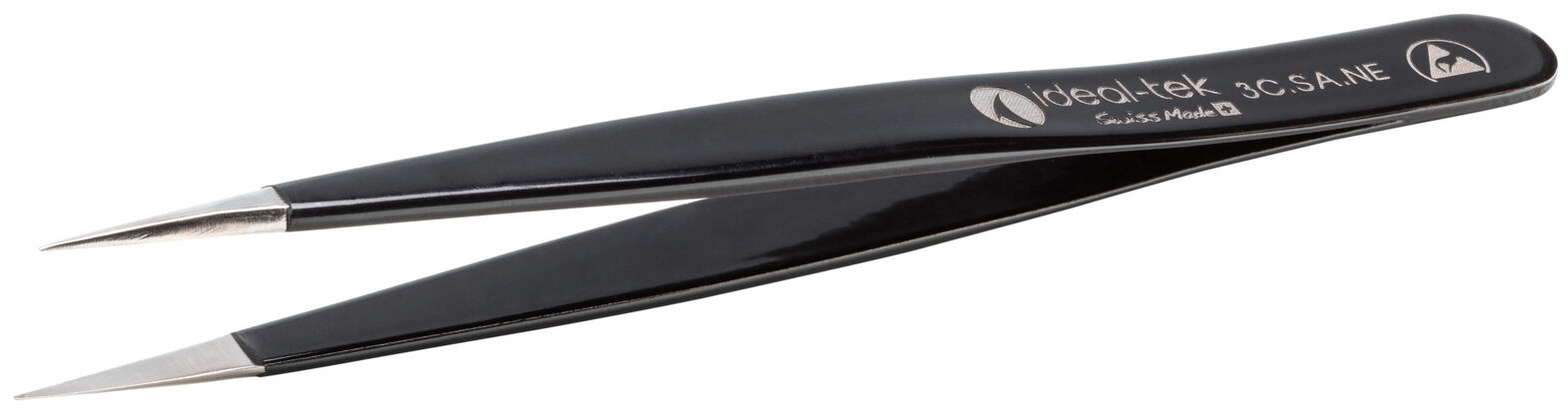

The image shows a black metal tweezer with pointed tips. It has a smooth surface and an engraved brand on the side. The tweezer is slim and elongated.

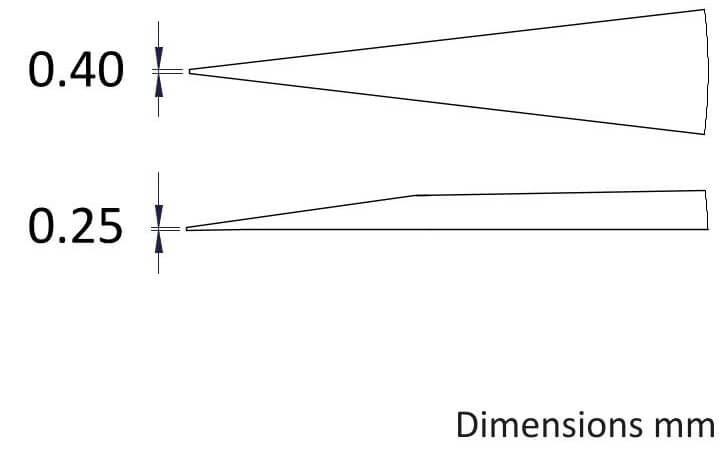

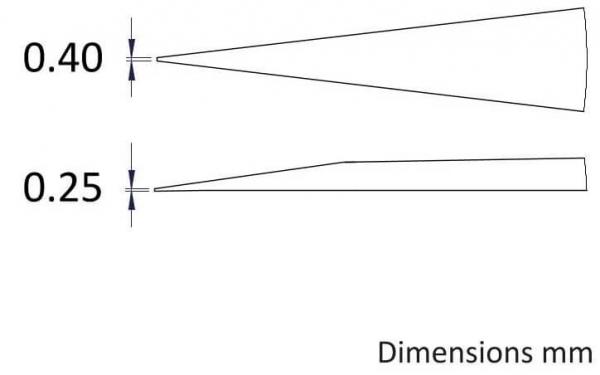

The image shows two narrow, pointed shapes. The top one has a width of 0.40 mm, the bottom one 0.25 mm. On the right it says "Dimensions mm".
Preview: The image shows a black metal tweezer with pointed tips. It has a smooth surface and an engraved brand on the side. The tweezer is slim and elongated.
Preview: The image shows two narrow, pointed shapes. The top one has a width of 0.40 mm, the bottom one 0.25 mm. On the right it says "Dimensions mm".
ESD precision tweezers 3C.SA.ESD
(Product No.: I-3C.SA.ESD)
The image shows a black metal tweezer with pointed tips. It has a smooth surface and an engraved brand on the side. The tweezer is slim and elongated.
The image shows two narrow, pointed shapes. The top one has a width of 0.40 mm, the bottom one 0.25 mm. On the right it says "Dimensions mm".
Mobile Preview: The image shows a black metal tweezer with pointed tips. It has a smooth surface and an engraved brand on the side. The tweezer is slim and elongated.
Mobile Preview: The image shows two narrow, pointed shapes. The top one has a width of 0.40 mm, the bottom one 0.25 mm. On the right it says "Dimensions mm".
Notice / Inquire

ESD precision tweezers 3C.SA.ESD

dpvlink:
16149
Tweezer type:
precision tweezers
Tip form:
straight
Gripping surface:
smooth
Handle surface:
smooth
Tip type characteristics:
fine, pointed
Properties:
Further product information

available available
18,25 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD precision tweezers 3C.SA.ESD

The ESD precision tweezers 3C.SA.ESD by ideal-tek are specifically designed for precision work in electronics manufacturing and other sensitive work environments. This high-quality tweezer made of stainless steel is coated with an ESD epoxy, providing antistatic properties and qualifying it for use in cleanrooms. Equipped with very sharp, fine tips, the tool allows excellent visibility of the component while ensuring a secure grip due to its short body.
The total length of the tweezer is 110 mm, with a tip length of 15 mm and a width of 9.5 mm. The tip itself measures only 0.4 mm in width and 0.25 mm in thickness, supporting precise work. Weighing just 13 g and featuring a smooth gripping and handling surface, it enhances user comfort and handling. The antimagnetic property of the tip and the straight, fine tip shape complement the functionality of this precision instrument.
Tweezer type
Tweezer type
precision tweezers
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Handle surface
Handle surface
smooth
Tip type characteristics
Tip type characteristics
fine, pointed
Height
Height
10 mm
Length
Length
110 mm
Thickness/diameter
Thickness/diameter
0.25 mm
Tip length
Tip length
15 mm
Tip width
Tip width
0.4 mm
Width
Width
9.5 mm
ESD coating
ESD coating
yes
Tip opening gap
Tip opening gap
8 mm
Material
Material
stainless steel / ESD coating
Surface
Surface
ESD epoxy coating / anti-magnetic
Tip
Tip
stainless steel
ESD
ESD
yes
twezzers code
twezzers code
3
Weight
Weight
13 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 402
Complete Catalog 2023 - 2024

Product Family

Ideal-tek Precision tweezers ESD

The precision tweezers from Ideal-tek, made of stainless steel or carbon steel, are coated with a black ESD-safe epoxy coating (resistance 105 - 106 Ohm). The elastic epoxy coating offers improved user comfort and shock resistance in environments up to 120°C. They have good resistance to many diluted acids and alkalis. They are ESD-compliant and are suitable for use in electrostatically protected areas.

  • ESD-safe
  • available in various designs for the safe holding, positioning and control of small components

Article image
Article description
ESD
Tweezer type
Tip form
Gripping surface
Handle surface
Tip type characteristics
Degree of bending
Price
Compare

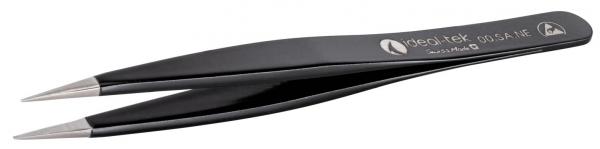

I-00.SA.ESD - ESD precision tweezers 00.SA.ESD
