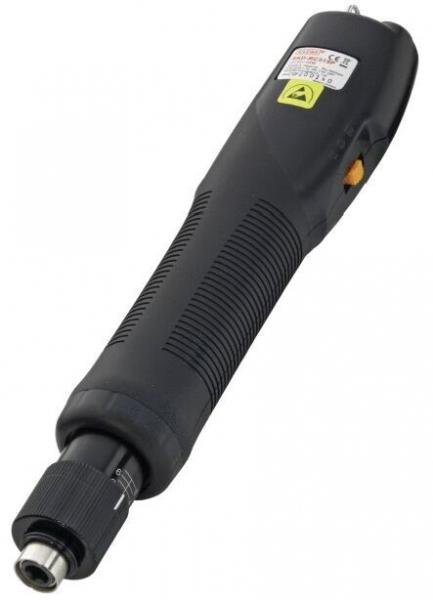

Electric screwdriver BN 500 series
dpvlink 20317

The low-voltage screwdrivers in the BN 500 series are more powerful and slightly heavier than the low-voltage electric screwdrivers in the BN 200 series with a similar length, while maintaining the same voltage. The low-voltage electric screwdrivers are optionally available with screw counting and soft start (item no.: SKZ-KL-SSBN). In conjunction with the soft start module Kilews, a left-hand thread version with soft start in anticlockwise rotation is also possible (CCW version).

The brushless KILEWS low-voltage screwdrivers at a glance

ESD-suitable: For sensitive components in electronics production
Suitable for cleanrooms: No carbon dust emissions thanks to brushless technology
Durable: All screwdrivers are equipped with long-lasting motors
Maintenance-free: The long-lasting motors save you time-consuming maintenance
Stepless torque adjustment: Enables precise adjustment and prevents material damage and overtightening

Read more ...

Technical data screwdriver:

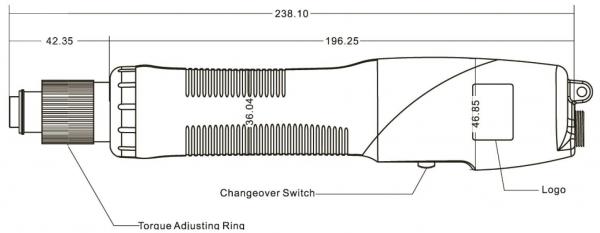

Length:	239 mm
Weight:	520 g
Voltage / power:	32 VDC / 55 W
Accuracy:	±3 %
Bit type:	type B 6.3 (1/4" / 6.35 mm)
Power supply unit/Controller:	see accessories

Model	SKD-BN512L	SKD-BN512LF	SKD-BN512LS
Start type	lever start	lever start high speed	lever start
Torque	0.15-1.18 Nm	0.15-1.18 Nm	0.15-1.18 Nm
Idle speed High	1000	2000	500
Idle speed Low	650	x	300
Screw size thread screw	1.6-3.0	1.6-3.0	x
Screw size self-tapping	1.6-2.6	1.6-2.6	x
Power supply unit/ Controller	SKP-32BC-60W, SKP-BE32HLN, SKP-BC40HLN

Model	SKD-BN512P	SKD-BN512PF	SKD-BN517LF
Start type	push start	push start high speed	lever start high speed
Torque	0.15-1.18 Nm	0.15-1.18 Nm	0.29-1.67 Nm
Idle speed High	1000	2000	2000
Idle speed Low	650	x	x
Screw size thread screw	1.6-3.0	1.6-3.0	1.6-3.0
Screw size self-tapping	1.6-2.6	1.6-2.6	1.6-3.0
Power supply unit/ Controller	SKP-32BC-60W, SKP-BE32HL, SKP-BC40HLN

Model	SKD-BN517PF	SKD-BN519L	SKD-BN519P
Start type	push start high speed	lever start	push start
Torque	0.29-1.67 Nm	0.29-1.86 Nm	0.29-1.86 Nm
Idle speed High	2000	1000	1000
Idle speed Low	x	650	650
Screw size thread screw	1.6-3.0	2.3-3.5	2.3-3.5
Screw size self-tapping	1.6-3.0	2.3-3.0	2.3-3.0
Power supply unit/ Controller	SKP-32BC-60W, SKP-BC32HL, SKP-BC40HLN
