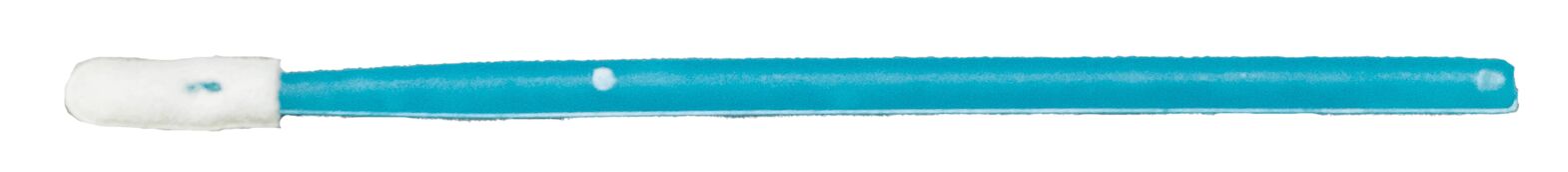

The image shows a long, slender object in bright blue. At one end, there is a white, rounded cap. The object is smooth and has a uniform shape.

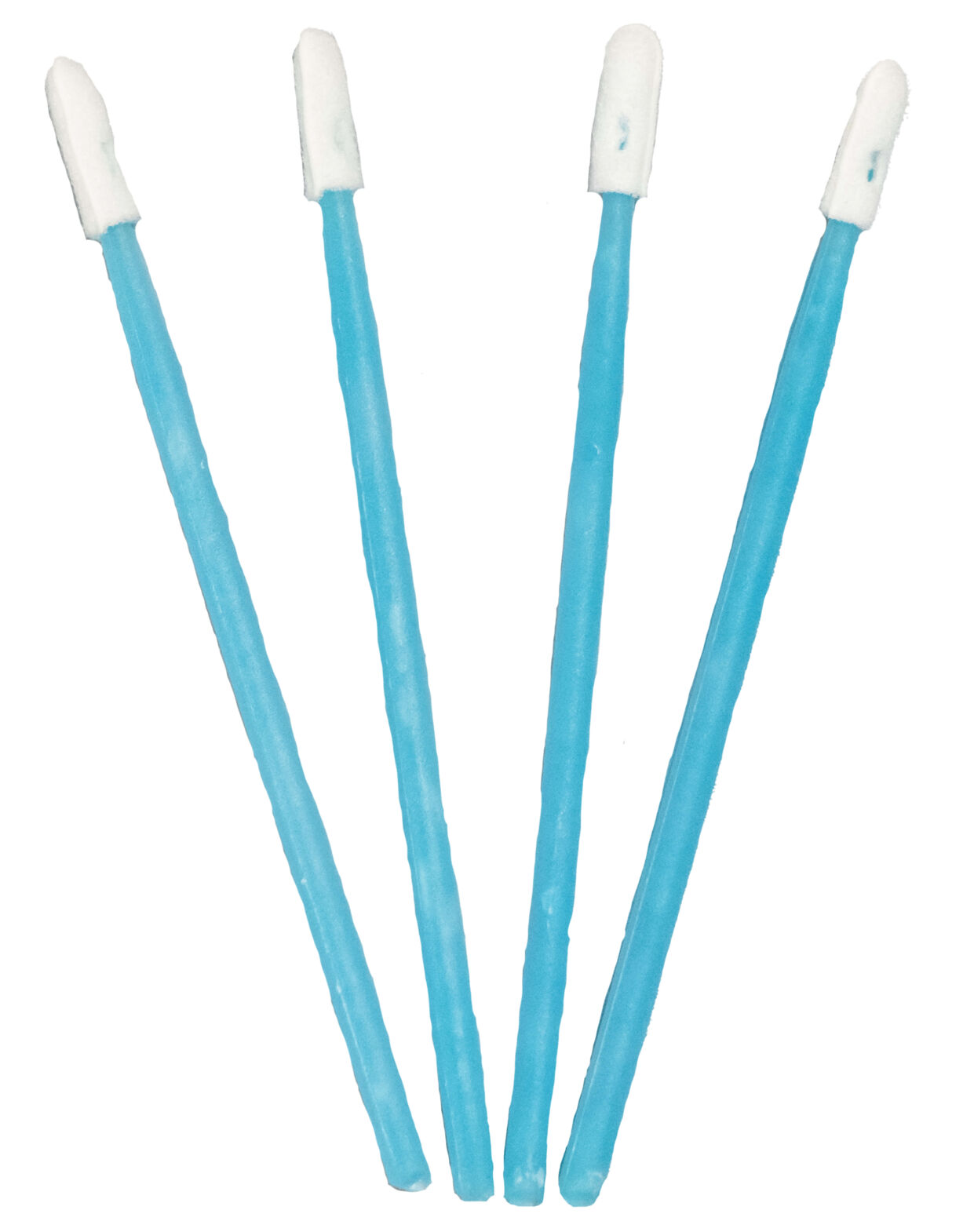

The image shows four cotton swabs. They have a long, blue shaft and two white, round heads at the ends. The swabs are evenly arranged.
Preview: The image shows a long, slender object in bright blue. At one end, there is a white, rounded cap. The object is smooth and has a uniform shape.
Preview: Image
Preview: Image
Preview: The image shows four cotton swabs. They have a long, blue shaft and two white, round heads at the ends. The swabs are evenly arranged.
ESD Cleaning sticks - Swab
(Product No.: 41050.ESD)
The image shows a long, slender object in bright blue. At one end, there is a white, rounded cap. The object is smooth and has a uniform shape.
The image shows four cotton swabs. They have a long, blue shaft and two white, round heads at the ends. The swabs are evenly arranged.
Mobile Preview: The image shows a long, slender object in bright blue. At one end, there is a white, rounded cap. The object is smooth and has a uniform shape.
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: The image shows four cotton swabs. They have a long, blue shaft and two white, round heads at the ends. The swabs are evenly arranged.
Notice / Inquire

ESD Cleaning sticks - Swab

dpvlink:
30436
Length :
71 mm
Tip width:
3.6/ 3.3 mm
Thickness/diameter:
2.5 mm
Tip length:
10,2 mm
PU:
500 piece
Properties:
Further product information

available available
99,70 EUR
per PCU

excl. 19% tax

1 PCU
Compare Compare
Notice / Inquire
Product Info

ESD Cleaning sticks - Swab

The ESD cleaning swabs from Chemtronics offer an efficient solution for cleaning sensitive electronics. These specially developed swabs are characterized by excellent solvent resistance and guarantee reliable ESD safety due to their surface resistance of 10¹⁰ ohms/square. With low residue of both ionic and non-volatile particles, and independent function from humidity, these swabs are ideal for highly sensitive areas.
The swabs contain no amines, silicones, or static dissipative coatings and do not cause tribo-charging. The handles of these swabs discharge 99% of an electrostatic charge (5 kV) within just 0.5 seconds.

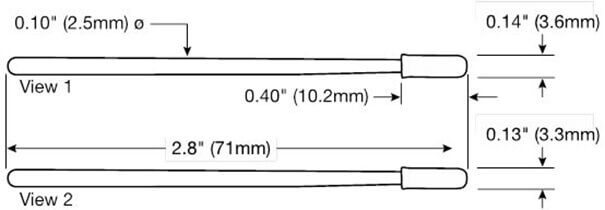

Each swab has a foam tip measuring 3.6/3.3 mm in width and 10.2 mm in length, and a handle with a diameter of 2.5 mm and a length of 71 mm. The packaging unit contains 500 pieces, enabling extensive use. These swabs are a reliable choice for any application where sensitive electronics need to be cleaned.
Length
Length
71 mm
Tip width
Tip width
3.6/ 3.3 mm
Thickness/diameter
Thickness/diameter
2.5 mm
Tip length
Tip length
10,2 mm
PU
PU
500 piece
Tip
Tip
foam
ESD
ESD
yes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

ESD Cleaning sticks - Swab

Properties & advantages

  • Excellent resistance to solvents
  • Surface resistance of 10¹⁰ ohm/square
  • Low ionic, non-volatile residues and particle contamination
  • No dependence on air humidity
  • No amines, no silicones, no static dissipative coatings
  • No tribocharge generation
  • Handles dissipate 99% of a (5 kV) charge in 0.5 seconds

Applications

  • Suitable for all applications with sensitive electronics

Article image
Article description
ESD
Length
Tip width
Thickness/diameter
Tip length
PU
Price
Compare
41050.ESD - ESD Cleaning sticks - Swab
41050.ESD
ESD Cleaning sticks - Swab
71 mm
3.6/ 3.3 mm
2.5 mm
10,2 mm
500 piece
99,70 EUR
44070.ESD - ESD Cleaning sticks - Swab
44070.ESD
ESD Cleaning sticks - Swab
81 mm
3.3/ 2.8 mm
2.5 mm
9,9 mm
500 piece
106,45 EUR
49250.ESD - ESD Cleaning sticks - Swab
49250.ESD
ESD Cleaning sticks - Swab
146 mm
12.0/ 8.0 mm
3.0 mm
27 mm
500 piece
143,90 EUR
51121.ESD - ESD Cleaning sticks - Swab
51121.ESD
ESD Cleaning sticks - Swab
71 mm
6,4/ 5,8 mm
2.5 mm
10,2 mm
500 piece
251,60 EUR
