EPAstore® PCB holder "Tray type Deep + Shallow"
(Product No.: 052.745)
The image displays an elongated, black cooler with grooves and a green computer component resting on top. The card features black and silver components and shiny connections.
The image shows a long, narrow ramp piece made of black rubber. The surface has parallel grooves and a raised edge on one side. It likely serves as a driveway ramp.
Mobile Preview: The image displays an elongated, black cooler with grooves and a green computer component resting on top. The card features black and silver components and shiny connections.
Mobile Preview: The image shows a long, narrow ramp piece made of black rubber. The surface has parallel grooves and a raised edge on one side. It likely serves as a driveway ramp.
Notice / Inquire

EPAstore® PCB holder "Tray type Deep + Shallow"

dpvlink:
24680
Properties:
Find out more about EPAstore®
Further product information

available available
26,70 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

EPAstore® PCB holder "Tray type Deep + Shallow"

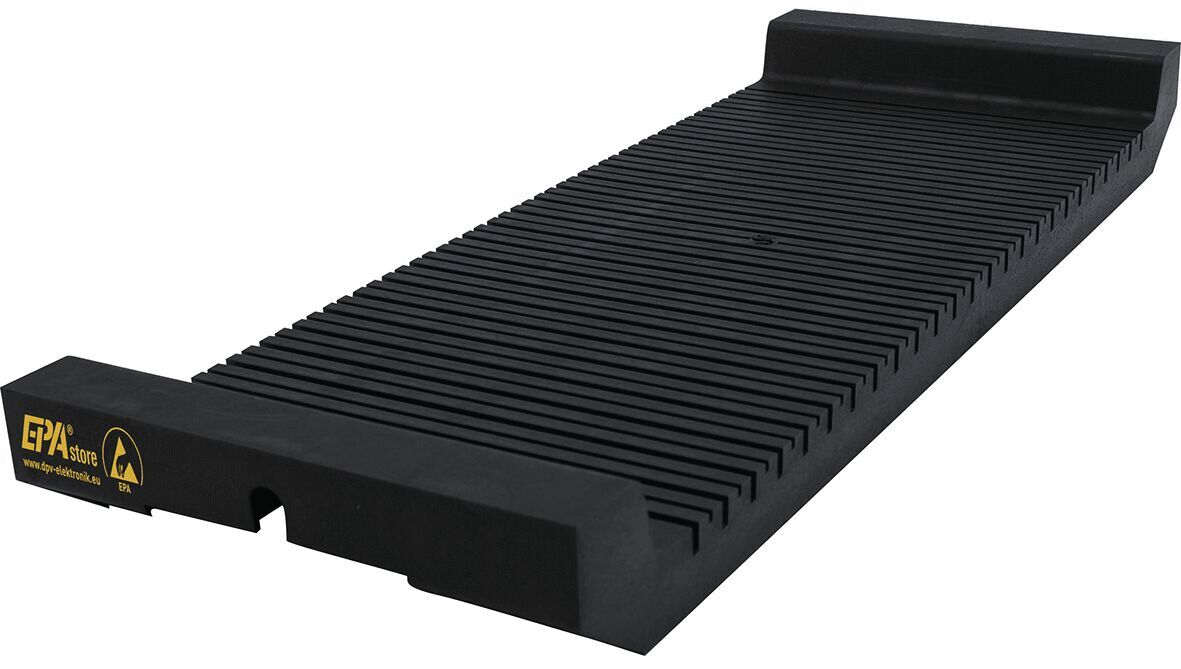

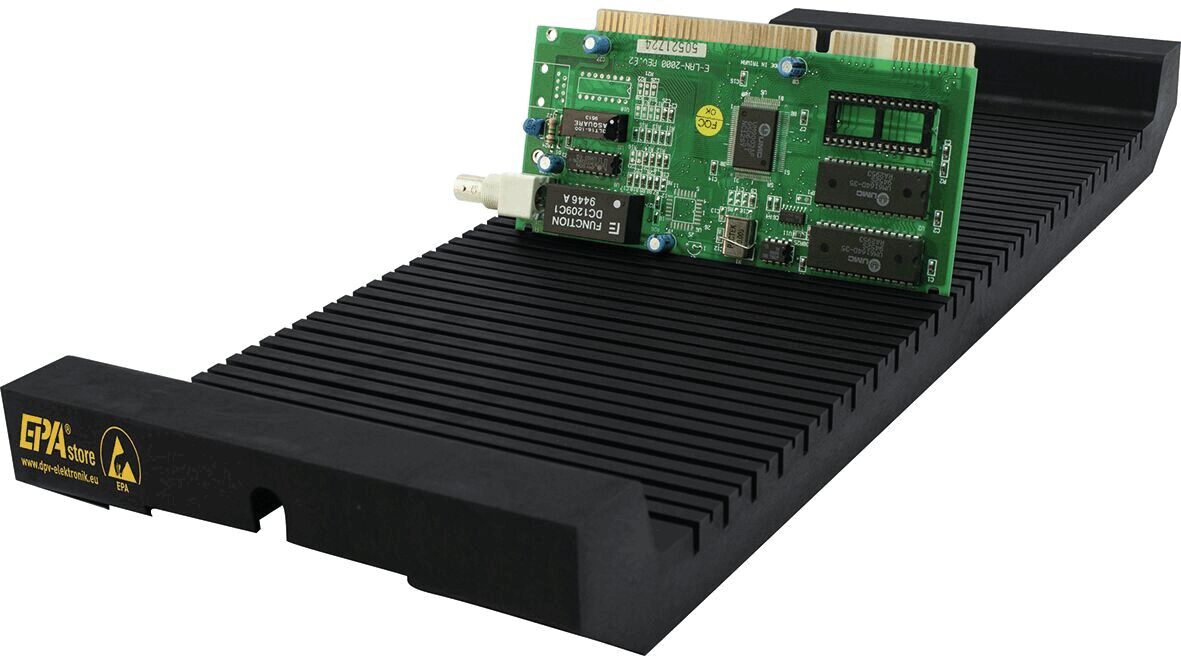

The EPAstore® PCB Holder "Tray Type Deep + Shallow" is specifically designed for the transportation and storage of various types of PCBs. This product complies with the ESD standard DIN EN 61340-5-1, thereby ensuring protection against electrostatic discharge. The dimensions of the holder are 172 x 484 mm, and it can accommodate 24 to 25 rows of PCBs with a thickness of 2.0 mm to 3.0 mm. The groove depth varies between 3 mm and 8 mm to meet different needs.
The technical specifications include a width of 484 mm and a length of 172 mm. The PCB holder is made of conductive polypropylene and offers a surface resistance of 10^8 Ω. Weighing 680 g, the product is lightweight and easy to handle. The groove width is 5.2 mm, and the maximum temperature resistance is 50 °C. The holder is colored in black, making it visually appealing.
The EPAstore brand stands for quality and reliability in the production of ESD-safe storage and transport solutions for electronic components.
Color
Color
black
Length
Length
172 mm
Width
Width
484 mm
Conductivity
Conductivity
dissipative
Surface resistance Rs
Surface resistance Rs
108 Ω
PCB material
PCB material
polypropylene
Groove depth
Groove depth
3.0 - 8,0 mm
Groove width
Groove width
5,2 mm
PCB thickness
PCB thickness
2,0 - 3.0 mm
Groove number
Groove number
24 - 25
Temperature resistance
Temperature resistance
50 °C
Weight
Weight
0,68 kg
Find out more about EPAstore®
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 348
Complete Catalog 2023 - 2024

Product Family

EPAstore® PCB holder "Tray type Deep + Shallow"

Article image
Article description
ESD
Color
Length
Width
Conductivity
Surface resistance Rs
PCB material
Groove depth
Groove width
PCB thickness
Groove number
Temperature resistance
Weight
Price
Compare
052.745 - EPAstore® PCB holder
052.745
EPAstore® PCB holder "Tray type Deep + Shallow"
black
172 mm
484 mm
dissipative
108 Ω
polypropylene
3.0 - 8,0 mm
5,2 mm
2,0 - 3.0 mm
24 - 25
50 °C
0,68 kg
26,70 EUR
