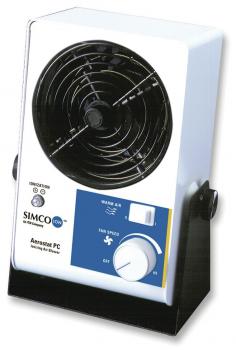

The image shows an electrical device with a larger round fan in the center, surrounded by a rectangular casing. It has switches and LED indicators at the lower center, as well as a reference to the brand "SIMCO".
Aerostat PC 2 - mobile ionizer (table model)
(Product No.: 7500.PC2)

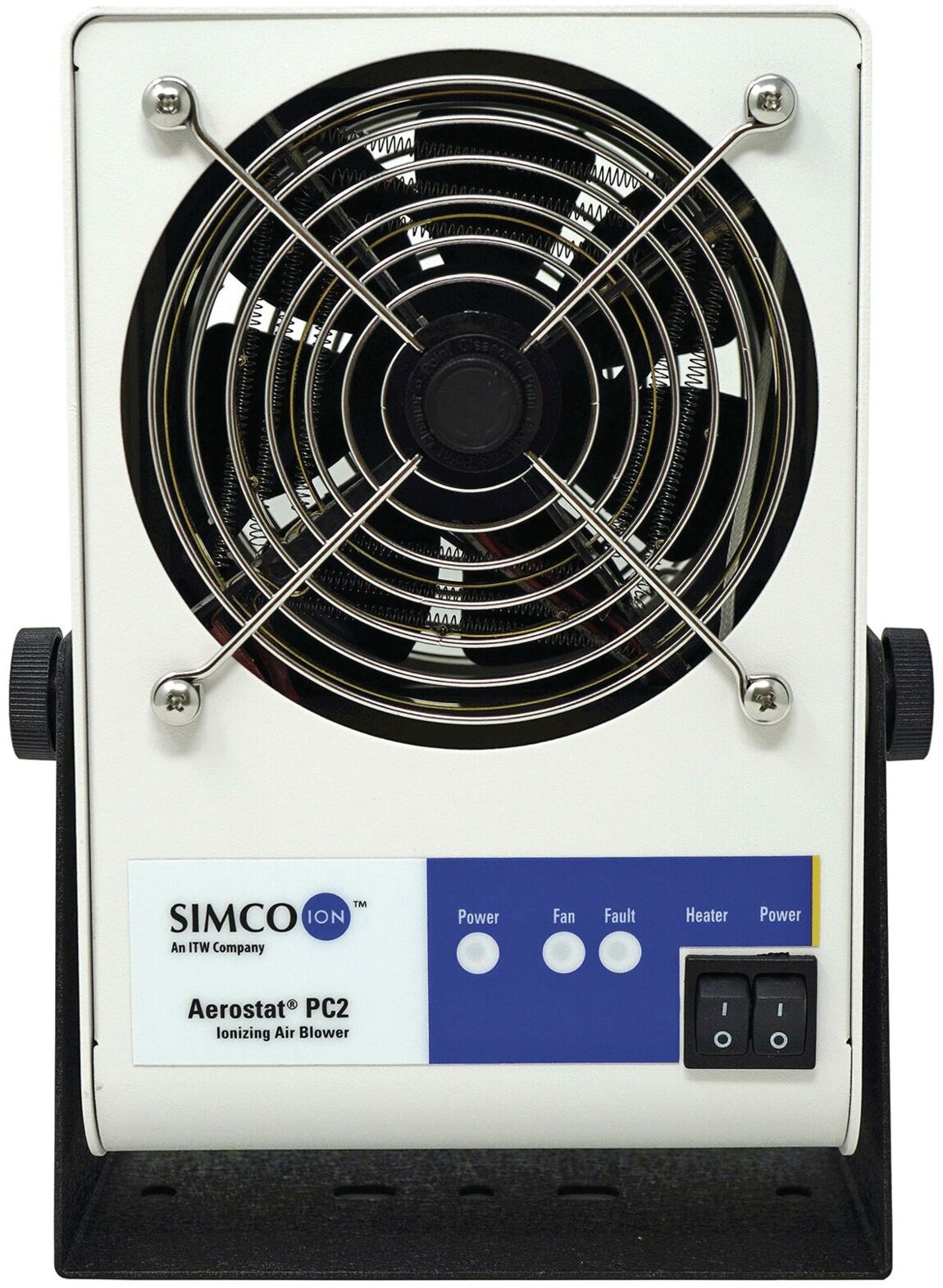

The image shows an electrical device with a larger round fan in the center, surrounded by a rectangular casing. It has switches and LED indicators at the lower center, as well as a reference to the brand "SIMCO".
Notice / Inquire

Aerostat PC 2 - mobile ionizer (table model)

dpvlink:
23216
Version:
table-top unit, standard
Ozone generation max.:
0.05 ppm
Coverage:
300 x 1220 mm
Ion balance +/-:
10 V
Properties:
Further product information

available available
981,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Aerostat PC 2 - mobile ionizer (table model)

The Simco Aerostat PC 2 is an advanced, mobile ionizing device in a desktop model, specifically designed for the neutralization of static charges. With a voltage of 100-240 V and alternating current technology, it offers an effective ionization area of 300 x 1220 mm. The device is characterized by its compact dimensions of 173 mm width, 231 mm height, and 84 mm depth, and weighs only 1.25 kg, making it ideal for use on workbenches or in integrated process tools.
The micropulse technology ensures a self-balancing ion output with a precision of ±10 V, which guarantees the protection of sensitive electronic components. The discharge time is less than 2 seconds at a distance of one meter, and ozone production is extremely low at a maximum of 0.005 ppm, minimizing environmental impact.
Additional customization options such as fan speed control and an optional heater increase user comfort, while optical and optionally acoustic alarm systems monitor operational status. A built-in emitter point cleaner reduces maintenance times and promotes consistently optimal performance.
Version
Version
table-top unit, standard
Ozone generation max.
Ozone generation max.
0.05 ppm
Coverage
Coverage
300 x 1220 mm
Ion balance +/-
Ion balance +/-
10 V
Discharge time max.
Discharge time max.
2 s
Input voltage
Input voltage
100 - 230 V/AC
Depth
Depth
84 mm
Height
Height
231 mm
Width
Width
173 mm
Weight
Weight
1.25 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a small fan in white and black. It has a round grille, a rotary knob for speed adjustment, and a flat, rectangular base.
Air filter set for ionizer Aerostat PC for...
Push-on frame, without filter
for assembly / Aerostat PC


+++ for the equipment of an Aerostat PC 1 complete air filter is requiered +++
dpvlink
30087

24,35 EUR
Show product
The image shows a small fan in white and black. It has a round grille, a rotary knob for speed adjustment, and a flat, rectangular base.
Air filter element for ionizer Aerostat PC...
Air filter element/replacement for Aerostat PC
( PU = 6 pcs )
dpvlink
30087

29,30 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 218
Complete Catalog 2023 - 2024

Product Family

Aerostat PC 2 - mobile table model

The Aerostat PC 2 is a portable and versatile table-top ionizer for the targeted neutralization of static charges. It is ideal for use in the assembly, testing and packaging of electronics. Due to its low weight and small design, it can be easily positioned on workbenches or built into process tools.

Common features:

  • Effective static neutralization: The device neutralizes static charges in a working area of up to 3 meters in length and achieves a discharge time of less than 2 seconds at a distance of one meter.
  • Micropulse technology: Provides a self-balancing ion discharge with an accuracy of ±10 V, which is crucial for protecting sensitive electronic components.
  • Built-in maintenance tools: A built-in emitter point cleaner minimizes maintenance time and ensures optimal performance.
  • Dimensions/weight: 130 x 230 x 84 mm / 1.25 kg
  • Ionization area: 300 x 1220 mm
  • Ozone generation: < 0.05 ppm
  • Input voltage: 100 - 230V

Adjustable settings (depending on version): The unit includes fan speed control (low/medium/high), an optional heater to heat the airflow for greater comfort, and visual and optional audible alarm systems to monitor faults and ionization status. The Aerostat PC 2 devices are available in four versions:

  • Standard version (7500.PC2): for basic applications without additional requirements
  • version with alarm (7500.PC2.A): for environments that require visual or audible feedback on the ionization status
  • Version with heating (7500.PC2.H): for workplaces where heated air flows provide more comfort and better process requirements
  • Version with alarm and heating (7500.PC2.HA): for maximum control and safety




Article image
Article description
Version
Ozone generation max.
Coverage
Ion balance +/-
Price
Compare
7500.PC2 - Aerostat PC 2 - mobile ionizer (table model)
7500.PC2
Aerostat PC 2 - mobile ionizer (table model)
table-top unit, standard
0.05 ppm
300 x 1220 mm
10 V
981,00 EUR
7500.PC2.A - Aerostat PC 2 - mobile ionizer (table model) with alarm
7500.PC2.A
Aerostat PC 2 - mobile ionizer (table model) with alarm
table-top unit, with alarm
0.05 ppm
300 x 1220 mm
10 V
1.049,00 EUR
7500.PC2.H - Aerostat PC 2 - mobile ionizer (table model) with heating
7500.PC2.H
Aerostat PC 2 - mobile ionizer (table model) with heating
table-top unit, with heater
0.05 ppm
300 x 1220 mm
10 V
1.072,00 EUR
7500.PC2.HA - Aerostat PC 2 - mobile ionizer (table model) with heating/alarm
7500.PC2.HA
Aerostat PC 2 - mobile ionizer (table model) with heating/alarm
table-top unit, with alarm/heater
0.05 ppm
300 x 1220 mm
10 V
1.090,00 EUR
