Tubular films

Tubular films are packaging materials made of dissipative or volume conductive plastic that enable controlled dissipation of electrostatic charges. With a surface resistance in the range of ≥ 1 × 10⁴ Ω to < 1 × 10¹¹ Ω, they reliably protect sensitive electronic components from electrostatic discharge (ESD) during storage and transportation within electrostatically protected areas (EPA).

The films are flexible, adaptable to different product dimensions and closed on two opposite sides. They can be welded and are therefore particularly suitable for customized packaging solutions.

Compared to semi-tubular films, they allow the product to be completely wrapped. The standard print includes the type designation, the ESD warning symbol, a recycling symbol and the LOT number. The tubular films meet the requirements of the ESD standard DIN EN 61340-5-3.

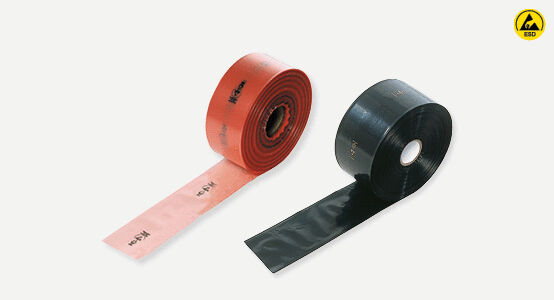

The image shows a roll of elastic band in orange. The band is rolled up, with one end hanging down. Black prints are visible on the surface.
Dissipative tubular film
ESD-protective
Dissipative tubular film 100 mm x 250 m
ESD / Width : 100 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 130 mm x 250 m
ESD / Width : 130 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 150 mm x 250 m
ESD / Width : 150 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 200 mm x 250 m
ESD / Width : 200 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 250 mm x 250 m
ESD / Width : 250 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 300 mm x 250 m
ESD / Width : 300 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 400 mm x 250 m
ESD / Width : 400 mm / Roll length [m]: 250 m / Thickness : 0.1 mm
Dissipative tubular film 500 mm x 250 m
ESD / Width : 500 mm / Roll length [m]: 250 m / Thickness : 0.1 mm

8 Products
Product No.: 3130.346
from 59,55 EUR
excl. 19% tax
to the product family
The image shows a large roll of black, glossy tape. A section of the tape is unrolled and extends across a flat surface. The roll has a central core hole.
CARBOSTAT® Tubular film
ESD-protective
CARBOSTAT tubular film 100 mm x 500 m
ESD / Width : 100 mm / Roll length [m]: 500 m / Thickness : 0.08 mm
CARBOSTAT tubular film 150 mm x 500 m
ESD / Width : 150 mm / Roll length [m]: 500 m / Thickness : 0.08 mm
CARBOSTAT tubular film 200 mm x 500 m
ESD / Width : 200 mm / Roll length [m]: 500 m / Thickness : 0.08 mm
CARBOSTAT tubular film 250 mm x 500 m
ESD / Width : 250 mm / Roll length [m]: 500 m / Thickness : 0.08 mm
CARBOSTAT tubular film 300 mm x 500 m
ESD / Width : 300 mm / Roll length [m]: 500 m / Thickness : 0.08 mm
CARBOSTAT tubular film 400 mm x 250 m
ESD / Width : 400 mm / Roll length [m]: 250 m / Thickness : 0.08 mm
CARBOSTAT tubular film 500 mm x 250 m
ESD / Width : 500 mm / Roll length [m]: 250 m / Thickness : 0.08 mm
CARBOSTAT tubular film 600 mm x 250 m
ESD / Width : 600 mm / Roll length [m]: 250 m / Thickness : 0.08 mm

8 Products
Product No.: 3230.254
from 173,00 EUR
excl. 19% tax
to the product family
1 to 2 (from a total of 2)
