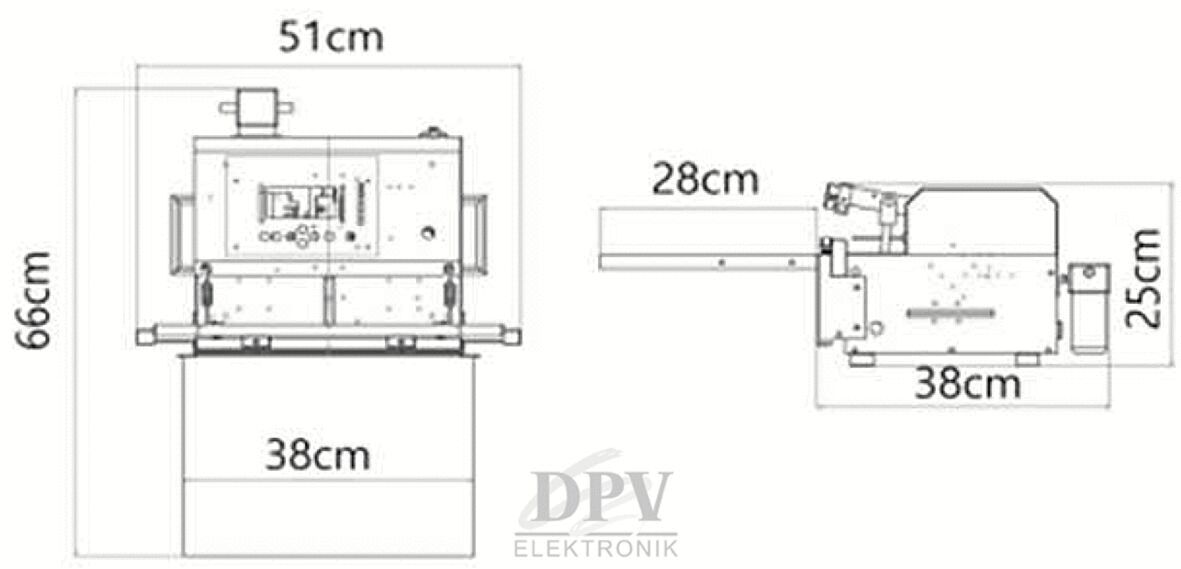

The image displays technical drawings of a device. The top shows a front view with dimensions of 51 cm in width, 66 cm in height, and 38 cm in depth. To the right is the side view with additional dimensions.
Preview: The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
Preview: The image displays technical drawings of a device. The top shows a front view with dimensions of 51 cm in width, 66 cm in height, and 38 cm in depth. To the right is the side view with additional dimensions.
Vacuum packaging machine type VS450E-D
(Product No.: 3420.450.M)
The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
The image displays technical drawings of a device. The top shows a front view with dimensions of 51 cm in width, 66 cm in height, and 38 cm in depth. To the right is the side view with additional dimensions.
Mobile Preview: The image shows an electric plate with digital controls. It has a large, flat surface and a movable upper part that can be pressed down.
Mobile Preview: The image displays technical drawings of a device. The top shows a front view with dimensions of 51 cm in width, 66 cm in height, and 38 cm in depth. To the right is the side view with additional dimensions.
Notice / Inquire

Vacuum packaging machine type VS450E-D

dpvlink:
21666
Further product information

Delivery time! Delivery time!
3.256,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Vacuum packaging machine type VS450E-D

The vacuum packaging machine type VS450M-D combines efficiency with cutting-edge technology, ideal for use in professional environments. This compact tabletop unit features a high-quality stainless steel casing that is not only robust but also easy to clean.
With dimensions of 660 mm in length, 380 mm in width, and 250 mm in height, and a weight of 28 kg, the machine offers a maximum bag width of 400 mm and a sealing bar length of 450 mm. The sealing skid width is 10 mm, which allows for double sealing both on top and bottom.
The integrated vacuum pump, optionally with an ejector, and the time-controlled gas flushing device ensure a faster process with reduced gas consumption. The sensor- or time-controlled vacuum creation, supported by a digital LCD vacuum display, allows for precise control of the packaging process. Additionally, up to 5 programs can be stored, simplifying handling and guaranteeing repeatable results.
The machine operates at a voltage of 230 V and a maximum power consumption of approximately 2.2 kW, making it an energy-efficient choice. The vacuum packaging machine type VS450M-D is thus an excellent solution for anyone looking for a reliable and powerful packaging option.
Sealing bar length
Sealing bar length
450 mm
Voltage
Voltage
230 V
Height
Height
250 mm
Length
Length
660 mm
Max. bag width
Max. bag width
400 mm
Width
Width
380 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 285
Complete Catalog 2023 - 2024

Product Family

Vacuum packaging machines without chamber

The vacuum packaging machines in this series are available as compact table-top units with re-gassing device and high-quality stainless steel housing. The machines offer the following advantages:

  • fast process
  • less gas consumption
  • no limit to the bag length


During each process, only the relevant bag is gas flushed, which means that the process is completed more quickly with less gas consumption than with vacuum packaging machines with a chamber. This makes the machines easy to use and well suited for small batches.

Technical data:

 Device VS450M-D VS450E-D VS600E-D VS800E-D
 Weight 28 kg 30 kg 32 kg 39 kg
Dimensions 641 x 380 x
 269 mm		 354 x 506 x
 263 mm		 700 x 460 x
 260 mm		 735 x 846 x
 276 mm
 Sealing bar length 450 mm 450 mm 600 mm 800 mm
 Sealing bar width 10 mm 10 mm 10 mm 5 mm
 max. bag width 400 mm 400 mm 590 mm 790 mm
 Vacuum pump Vacuum pump Ejector
 vacuum pump		Ejector
 vacuum pump		 Ejector
 vacuum pump
 Open vacuum flow 25 l/min 124 l/min124 l/min 185 l/min
 Air pressure movement motorized approx. 6.5 bar approx. 6.5 bar approx. 6.5 bar
 Max. power consumption approx. 2.2 kW approx. 2.2 kWapprox. 2.2 kWapprox. 2.2 - 3.4 kW

Features:

  • double sealing (up/down)
  • vacuum pump
  • gas flushing time-controlled
  • sensor- or time-controlled vacuum generation
  • digital LCD vacuum display
  • 5 programs can be saved

Article image
Article description
Sealing bar length
Voltage
Height
Length
Max. bag width
Width
Compressed air supply
Price
Compare
3420.450.M - Vacuum packaging machine type VS450E-D
3420.450.M
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
380 mm

3.256,00 EUR
3420.450.E - Vacuum packaging machine type VS450E-D
3420.450.E
Vacuum packaging machine type VS450E-D
450 mm
230 V
250 mm
660 mm
400 mm
510 mm
6.5 bar
3.500,00 EUR
3420.600.E - Vacuum packaging machine type VS600E-D
3420.600.E
Vacuum packaging machine type VS600E-D
600 mm
230 V
260 mm
700 mm
590 mm
460 mm
6.5 bar
3.800,00 EUR
3420.800.E - Vacuum packaging machine type VS800E-D
3420.800.E
Vacuum packaging machine type VS800E-D
800 mm

276 mm
735 mm
790 mm
846 mm
6.5 bar
4.137,00 EUR
