Vacuum packaging machine type VS600E-D
Vacuum packaging machine type VS600E-D

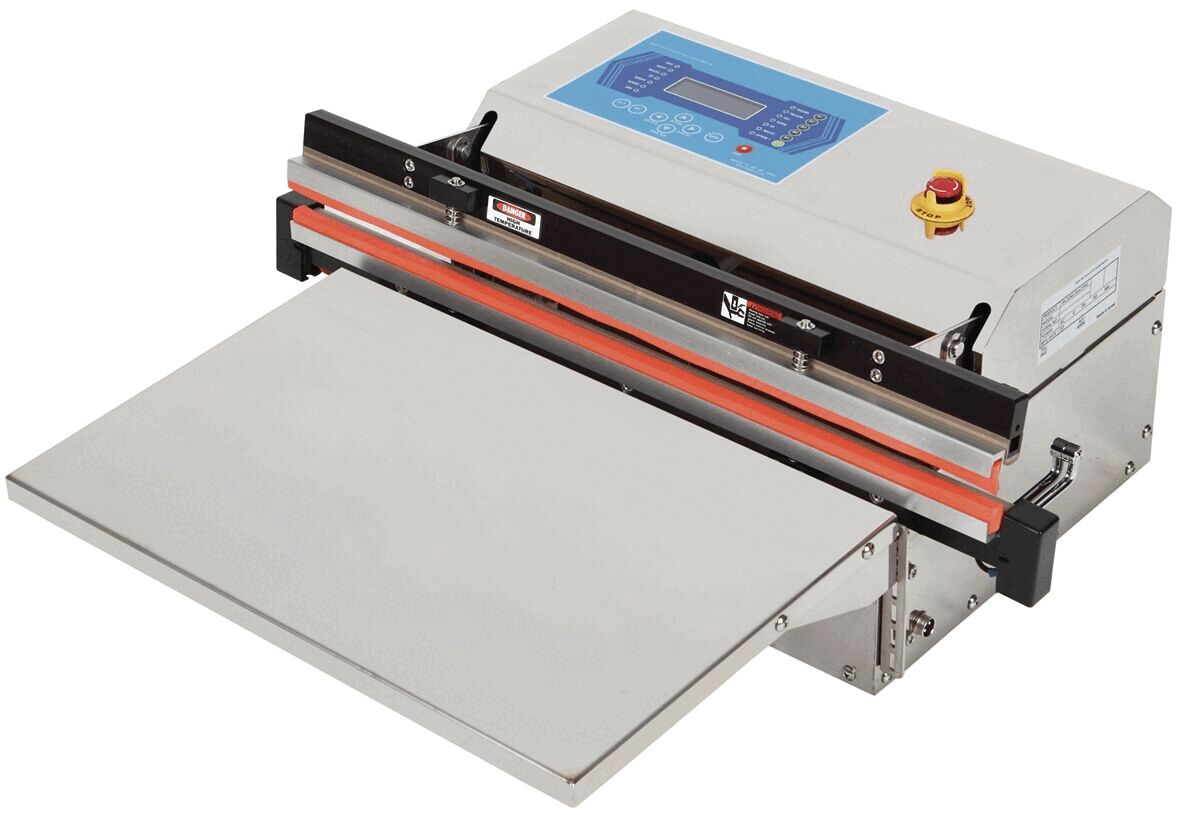

The vacuum packaging machine type VS600E-D is an advanced device specifically designed for efficient packaging with the option of gas flushing. This model is characterized by its compact design as a tabletop unit and is made entirely of high-quality stainless steel.The machine offers double sealing on top and bottom as well as a timed gas flushing feature, which minimizes gas consumption and speeds up the process. A digital LCD vacuum display and the ability to store up to 5 programs increase user-friendliness and efficiency.

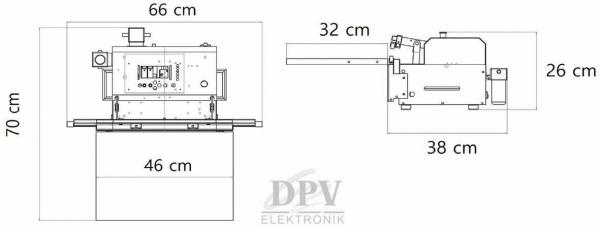

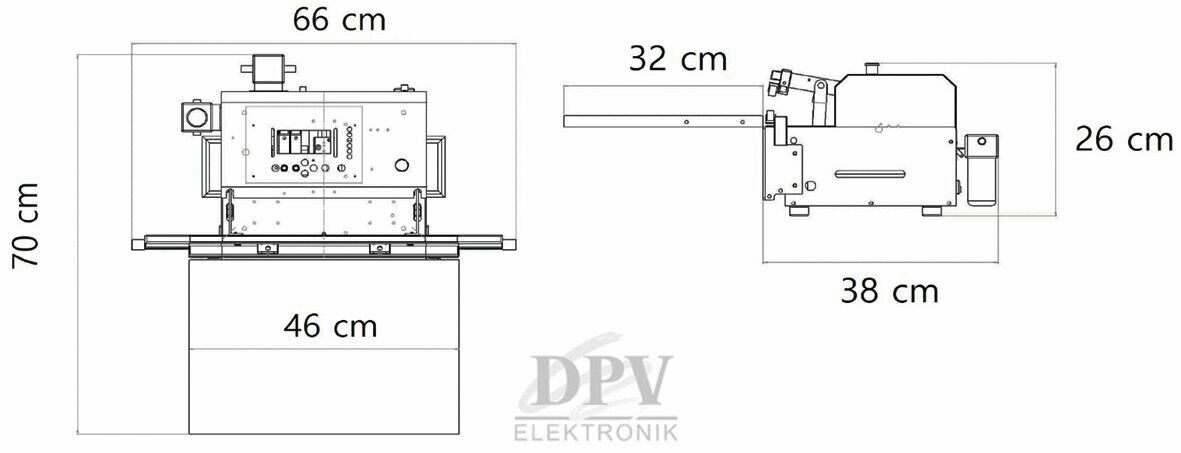

Technically, the VS600E-D is equipped with an ejector vacuum pump that allows an open vacuum flow of 124 l/min. The machine has a sealing bar length of 600 mm and can process bags up to a width of 590 mm. With dimensions of 700 x 460 x 260 mm and a weight of 32 kg, it is ideal for operations that value a robust, high-performance, and space-saving solution.
The compressed air supply requires 6.5 bar and the voltage is 230 V, which allows for use in most industrial environments.
Details
- Compressed air supply Compressed air supply
- 6.5 bar
- Sealing bar length Sealing bar length
- 600 mm
- Voltage Voltage
- 230 V
- Height Height
- 260 mm
- Length Length
- 700 mm
- Max. bag width Max. bag width
- 590 mm
- Width Width
- 460 mm
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Vacuum packaging machines without chamber
Technical data:
| Device | VS450M-D | VS450E-D | VS600E-D | VS800E-D |
| Weight | 28 kg | 30 kg | 32 kg | 39 kg |
| Dimensions | 641 x 380 x 269 mm | 354 x 506 x 263 mm | 700 x 460 x 260 mm | 735 x 846 x 276 mm |
| Sealing bar length | 450 mm | 450 mm | 600 mm | 800 mm |
| Sealing bar width | 10 mm | 10 mm | 10 mm | 5 mm |
| max. bag width | 400 mm | 400 mm | 590 mm | 790 mm |
| Vacuum pump | Vacuum pump | Ejector vacuum pump | Ejector vacuum pump | Ejector vacuum pump |
| Open vacuum flow | 25 l/min | 124 l/min | 124 l/min | 185 l/min |
| Air pressure | movement motorized | approx. 6.5 bar | approx. 6.5 bar | approx. 6.5 bar |
| Max. power consumption | approx. 2.2 kW | approx. 2.2 kW | approx. 2.2 kW | approx. 2.2 - 3.4 kW |
Features:
- double sealing (up/down)
- vacuum pump
- gas flushing time-controlled
- sensor- or time-controlled vacuum generation
- digital LCD vacuum display
- 5 programs can be saved
Article image
Article description
Sealing bar length
Voltage
Height
Length
Max. bag width
Width
Compressed air supply
Price
Compare
450 mm
230 V
250 mm
660 mm
400 mm
380 mm
450 mm
230 V
250 mm
660 mm
400 mm
510 mm
6.5 bar
600 mm
230 V
260 mm
700 mm
590 mm
460 mm
6.5 bar
800 mm
276 mm
735 mm
790 mm
846 mm
6.5 bar
