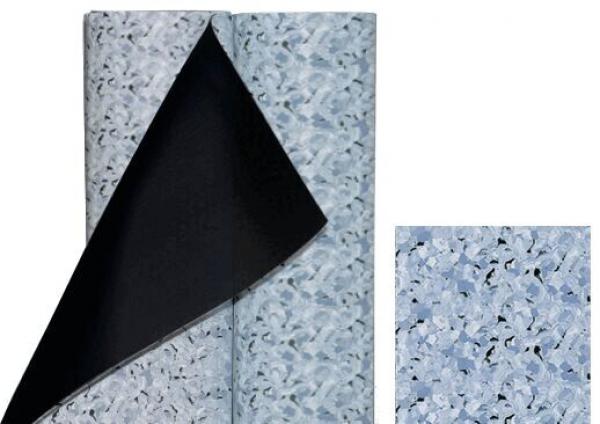

The image shows a roll of bluish-marbled paper, partially unrolled, and a piece of the paper to the right. The background is black and the texture is slightly shimmering.
Cano CB Flooring, rolls light blue
(Product No.: 1260.807.0)
The image shows a roll of bluish-marbled paper, partially unrolled, and a piece of the paper to the right. The background is black and the texture is slightly shimmering.
Notice / Inquire

Cano CB Flooring, rolls light blue

dpvlink:
2945
Color:
light blue
Width :
2000 mm
Roll length:
23 m
Thickness :
2 mm
Properties:
What role does ESD-flooring play?
Further product information

Minimum order:
46 MTK
white
white
light grey
light grey
grey
grey
light grey
light grey
light blue
light blue
available available
55,75 EUR

excl. 19% tax

46 MTK
Compare Compare
Notice / Inquire
Product Info

Cano CB Flooring, rolls light blue

The Cano-CB rolled flooring is specifically designed for technical applications where electrostatic discharge capability is required. This flooring is made of PVC with a smooth surface and is available in Light Blue (107). The material thickness is 2 mm, making it also suitable for use under chair casters through adhesion or fixation.
The rolled goods have a width of 2000 mm and a length of 23 m, covering a total area of 46 m². The flooring meets the ESD standard DIN EN 61340-5-1 and has a typical resistance of RG = 10^4 - 10^6 Ohm, making it ideal for environments that require low particle contamination and correspond to ISO class 4 according to 14644-1.
Additionally, the flooring is available in other colors and in tile format 610 x 610 mm upon request, allowing for flexible room design.
Color
Color
light blue
Width
Width
2000 mm
Roll length
Roll length
23 m
Thickness
Thickness
2 mm
ISO according to 14644-1
ISO according to 14644-1
4
Material
Material
PVC
What role does ESD-flooring play?
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a roll of tape in a copper-colored shine. The roll has an inner diameter made of cardboard and is smooth. On the inside, various geometric patterns are depicted.
Copper tape, self-adhesive
Copper tape, 19 mm x 50 m,
self-adhesive (++adhesive conductive++)
dpvlink
3213

44,50 EUR
Show product
The image shows a yellow device on a wall. It features a warning symbol and is connected to a green cable. Below it, a copper strip runs along the ground.
Grounding connection set for floor coverings...
Grounding connection set for floor coverings
with test point / 4 mm socket, cable length
approx. 3m (wall mounting)
dpvlink
8024

20,10 EUR
Show product
The image shows a roll of tape. The roll has a round core and is gray on the outside, with a smooth, visible surface.
Aluminium tape, self-adhesive
Aluminium tape, 50 mm x 50 m,
self-adhesive
dpvlink
3213

22,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 151
Complete Catalog 2023 - 2024

Product Family

Cano CB Flooring

Electrostatically dissipative PVC flooring with smooth surface and low-resistance backing.
Suitable for fixed laying by bonding.

Material thickness: 2 mm / suitable for chair castors due to fixation or bonding
Colors: white, light grey, grey, light green, light blue

In compliance with ESD standard DIN EN 61340-5-1

Typical bleeder resistance RG = 104 - 106 Ohm

Delivery form in tiles 610 x 610 mm on request


Article image
Article description
ESD
Color
Width
Roll length
Thickness
Price
Compare
1260.801.0 - Cano CB Flooring, rolls white/grey
1260.801.0
Cano CB Flooring, rolls white/grey
white
2000 mm
23 m
2 mm
55,75 EUR
1260.802.0 - Cano CB Flooring, rolls light grey
1260.802.0
Cano CB Flooring, rolls light grey
light grey
2000 mm
23 m
2 mm
55,75 EUR
1260.803.0 - Cano CB Flooring, rolls grey
1260.803.0
Cano CB Flooring, rolls grey
grey
2000 mm
23 m
2 mm
55,75 EUR
1260.806.0 - Cano CB Flooring, rolls green
1260.806.0
Cano CB Flooring, rolls green
light grey
2000 mm
23 m
2 mm
55,75 EUR
1260.807.0 - Cano CB Flooring, rolls light blue
1260.807.0
Cano CB Flooring, rolls light blue
light blue
2000 mm
23 m
2 mm
55,75 EUR
