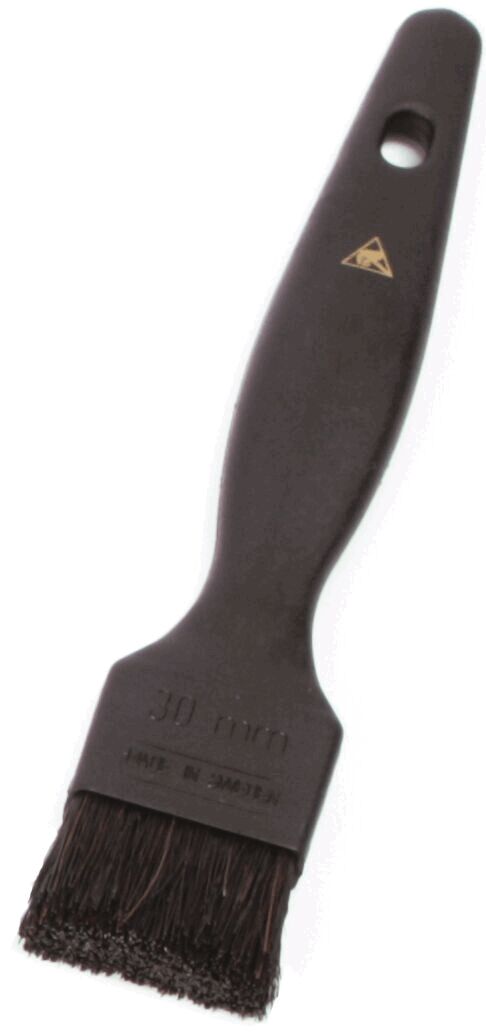

The image shows a classic brush with a wide, flat bristle head and a black plastic handle. The handle has a hole for hanging.
ESD flat brush 30 x 11 mm
(Product No.: 6105.3011)
The image shows a classic brush with a wide, flat bristle head and a black plastic handle. The handle has a hole for hanging.
Notice / Inquire

ESD flat brush 30 x 11 mm

dpvlink:
2025
Hardness:
hard
Width :
30 mm
Brush length:
20 mm
Handle length:
140 mm
Bristles :
polyester / conductive fibers
Properties:
Further product information

available available
9,85 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD flat brush 30 x 11 mm

The ESD flat brush, measuring 30 x 11 mm with a handle length of 140 mm, is specifically designed for the safe cleaning of assembled circuit boards. The bristles of this brush are 20 mm long and made from an effective blend of polyester and conductive fibers, maintained in the color black. The handle made from conductive plastic additionally ensures optimal handling.
The brush is electrostatically conductive and meets the ESD standard DIN EN 61340-5-1, making it suitable for use in ESD-sensitive areas. The surface resistance of the brush is between 10^4 and 10^9 Ohm, which allows for the safe dissipation of electrostatic charges. The hardness of the brush is classified as hard, ensuring effective cleaning without the risk of damaging the components.
Hardness
Hardness
hard
Width
Width
30 mm
Brush length
Brush length
20 mm
Handle length
Handle length
140 mm
Bristles
Bristles
polyester / conductive fibers
Bristle color
Bristle color
black
Depth
Depth
11 mm
Surface resistance Rs
Surface resistance Rs
104 - 109 Ω
ESD
ESD
yes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

ESD Brushes

  • For risk-free cleaning of assembled printed circuit boards
  • Conductive plastic handles
  • Bristles are made of a mixture of conductive fiber and polyester

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
ESD
Hardness
Width
Brush length
Handle length
Bristles
Price
Compare
6105.0707 - ESD brush 7 mm
6105.0707
ESD brush 7 mm
hard
12.5 mm
15 mm
62 mm
polyester / conductive fibers
4,50 EUR
6105.1206 - ESD flat brush 12 x 6 mm
6105.1206
ESD flat brush 12 x 6 mm
hard
12 mm
15 mm
100 mm
polyester / conductive fibers
6,85 EUR
6105.1806 - ESD flat brush 18 x 6 mm
6105.1806
ESD flat brush 18 x 6 mm
hard
18 mm
15 mm
105 mm
polyester / conductive fibers
8,00 EUR
6105.2506 - ESD flat brush 25 x 6 mm
6105.2506
ESD flat brush 25 x 6 mm
hard
25 mm
20 mm
110 mm
polyester / conductive fibers
6,70 EUR
6105.3011 - ESD flat brush 30 x 11 mm
6105.3011
ESD flat brush 30 x 11 mm
hard
30 mm
20 mm
140 mm
polyester / conductive fibers
9,85 EUR
6105.5006 - ESD flat brush 50 x 6 mm
6105.5006
ESD flat brush 50 x 6 mm
hard
50 mm
18 mm
133 mm
polyester / conductive fibers
8,45 EUR
6105.5011 - ESD flat brush 50 x 11 mm
6105.5011
ESD flat brush 50 x 11 mm
hard
50 mm
20 mm
144 mm
polyester / conductive fibers
13,00 EUR
6105.5323 - ESD hard brush 70 x 25 mm
6105.5323
ESD hard brush 70 x 25 mm
hard
70 mm
15 mm
85 mm
polyester / conductive fibers
23,40 EUR
6105.7011 - ESD flat brush 70 x 11 mm
6105.7011
ESD flat brush 70 x 11 mm
hard
70 mm
20 mm
148 mm
polyester / conductive fibers
15,40 EUR
6105.3706 - ESD flat brush 37 x 6 mm
6105.3706
ESD flat brush 37 x 6 mm
hard
37 mm
18 mm
123 mm
polyester / conductive fibers
6,20 EUR
