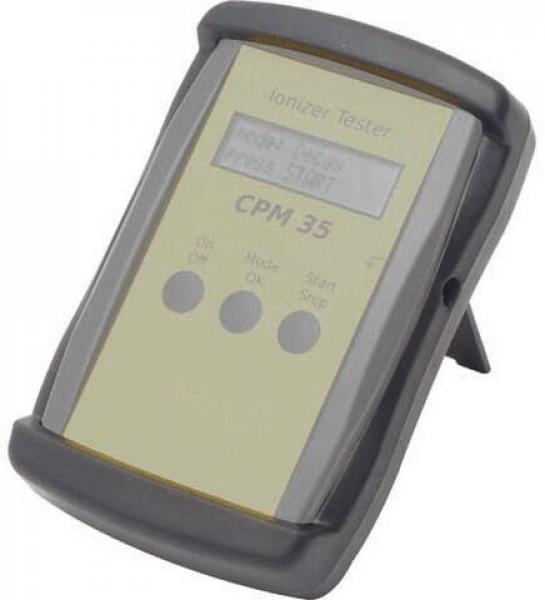

CPM 35 Rubber case with foot
CPM 35 Rubber case with foot
The CPM 35 is a compact measuring device for the automatic inspection of ionizers, ideal for use at the ESD workstation or in machines. This device is specifically designed to measure both positive and negative discharges and to check offset voltages. Additionally, it allows for the performance of periodic measurements of personal charges via a walking test.The operation of the CPM 35 features two main test areas: Decay and Offset/BVT. In Decay mode, the device checks the discharge time from ± 250 V to ± 100 V and ensures that the offset voltage remains below 35 V for 10 seconds. The Offset/BVT mode continuously displays the current measurement value as well as the maximum values of each polarity and enables simple body voltage tests by touching the measuring electrode.
For protection and to enhance the functionality of the device, it includes a rubberized protective case with a convenient, foldable stand.
Included in the delivery are the Ionizer Tester CPM35, a 9 V lithium battery, a grounding cable, a carrying case, as well as a quick start guide and a factory calibration certificate in German and English.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Ionizer Tester type CPM35 for verification tests
Scope of delivery:
- Ionizer Tester CPM35
- 9 V lithium battery
- grounding wire
- carrying bag
- quick guide DE/EN
- factory calibration certificate DE/EN
CPM35 has two test ranges:
Decay:
- verifies the decay time from ± 250 V to ± 100 V
- verifies after successful testing of the decay time if the "offset voltage" remains below 35 V for 10 seconds
Offset/BVT:
- this mode shows permanently the current measured value in the upper display line
- the maximal values of each polarity are displayed in the lower line
Offset measurement:
for the verification of the offset voltage of ionizers
BVT:
Body Voltage Test - the device can display very easily the body voltage of a person during a walking test (for this purpose the finger of the person has to touch the measuring electrode)
Optional:
Rubber protective cover with foldable foot for CPM35
Rubber protective cover with foldable foot for CPM35
