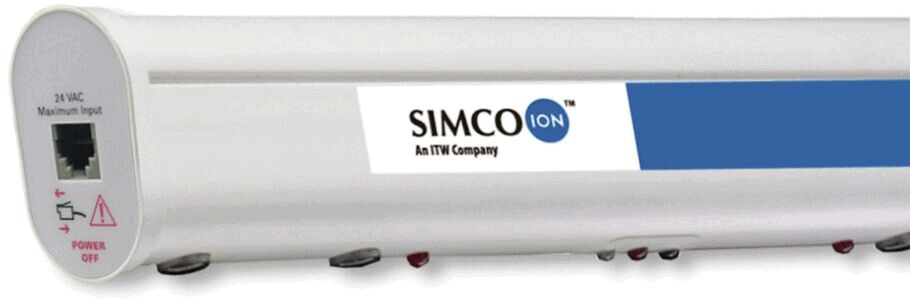

The image displays a simple, elongated device in white with a blue stripe and a logo ?SIMCO ION?. It features several small buttons and a connection on one side.
AeroBar 5225S Ionizing bar 22"/558 mm
(Product No.: 7500.AB.22)
The image displays a simple, elongated device in white with a blue stripe and a logo ?SIMCO ION?. It features several small buttons and a connection on one side.

AeroBar 5225S Ionizing bar 22"/558 mm

dpvlink:
24679
Width :
31 mm
Height :
53 mm
Length :
569 mm
Active length:
558 mm
Emitters:
5
Further product information

Delivery time! Delivery time!

Compare Compare
Notice / Inquire
Product Info

AeroBar 5225S Ionizing bar 22"/558 mm

The AeroBar 5225S Ionizing Bar from Simco is specifically designed for use in cleanroom environments, meeting strict purity standards according to ISO 14644-1 Class 1. With a length of 569 mm and an active length of 558 mm, this device effectively neutralizes static charges through its ion emission technology, which supports both pulsed and steady DC ionization modes.
The ionizing bar is equipped with replaceable single-crystal silicon emitters that ensure durability and minimal contamination. The number of emitters is 5, and the ion balance is at +/- 10 V. The maximum ozone production is extremely low at 0.005 ppm, enhancing safety in sensitive environments.
The dimensions of the device are 53 mm in height, 31 mm in width, and it weighs 1.02 kg. It operates on a voltage of 24 volts and can be controlled via the remote control 7500.AB.R, which is required separately. This allows for easy integration into existing tool control systems without an additional controller.
Additionally, the AeroBar 5225S features various status indicators and an alarm output, enabling seamless integration into the alarm system of any facility. This product is non-returnable and provides a reliable solution for applications requiring precise control of environmental conditions.
Width
Width
31 mm
Height
Height
53 mm
Length
Length
569 mm
Active length
Active length
558 mm
Emitters
Emitters
5
ISO according to 14644-1
ISO according to 14644-1
1
Ion balance +/-
Ion balance +/-
10 V
Ozone generation max.
Ozone generation max.
0.005 ppm
Voltage
Voltage
24 V
Emitter material
Emitter material
silicon
Ambient temperature
Ambient temperature
15 - 35 °C
Weight
Weight
1.02 kg
Show accessories
Accessories

Accessories

AeroBar 5225S Remote control
AeroBar 5225S remote control
dpvlink
30105

Price on request
Show product
AeroBar 5225S Power supply unit
AeroBar 5225S power supply unit
dpvlink
30105

Price on request
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

AeroBar 5225S Ionizing bar

The AeroBar 5225S ionizing bar has been developped to ensure a high performance with simple integration in the process. Very precise adjustment options enable the use in most applications in installations workstations and cleanroom areas. The design of the AeroBar 5225S and the materials suitable for cleanrooms permit a complete ionisation also in small cleanrooms and cleanroom areas without interrupting the laminar air flow.

The configuration and adjustment can be made with infrared remote control.

Ion emission technology: It uses pulsed DC or steady-state DC ionization modes that can be fine-tuned for specific applications. This ensures effective and consistent neutralization of static charges, especially in environments where sensitive components such as semiconductor wafers are handled.

Emitter options: The device is equipped with single crystal silicon emitter points, known for their cleanliness and longevity, or titanium emitter dots for other specific requirements. These emitters are interchangeable.

Cleanroom compatibility: The device meets stringent ISO 14644-1 Class 1 cleanliness standards for silicon emitters and Class 3 for titanium emitters, ensuring minimal risk of contamination.

Dimensions: AeroBar is available in 5 different lengths, making it versatile for various installation scenarios, including devices such as EFEM charging ports.

Power supply and control: The bar is powered by a 24 VAC input voltage and can be integrated into a tool control system. In addition, ion output levels can be set separately for positive and negative polarities via IR remote control or software.

Individual parameter adjustment: Wide range of individually adjustable parameters for each AeroBar. All parameters are stored in the AeroBar, no controller is required

Status and alarm output: The device has a status/alarm output for FMS / host PC and can be integrated into the alarm system of any installation.

Status display: has various status indicators (flashing red LED for positive/neg. polarity, red LED for alarm)

Operating modes: The operating modes “Steady State Mode DC” or “Pulse Mode DC” can be selected

Power supply: 24 V AC power supply via transformer (supply of up to 6 AeroBars possible)

Installation and wiring: simple installation by low voltage operation

Remote control 7500.AB.R required


Article image
Article description
ESD
Width
Height
Length
Active length
Emitters
Price
Compare
7500.AB.22 - AeroBar 5225S Ionizing bar 22
7500.AB.22
AeroBar 5225S Ionizing bar 22"/558 mm
31 mm
53 mm
569 mm
558 mm
5
-
7500.AB.28 - AeroBar 5225S Ionizing bar 28
7500.AB.28
AeroBar 5225S Ionizing bar 28"/711 mm
31 mm
53 mm
721 mm
711 mm
7
-
7500.AB.36 - AeroBar 5225S Ionizing bar 36
7500.AB.36
AeroBar 5225S Ionizing bar 36"/907 mm
31 mm
53 mm
932 mm
907 mm
8
-
7500.AB.44 - AeroBar 5225S Ionizing bar 44
7500.AB.44
AeroBar 5225S Ionizing bar 44"/1118 mm
31 mm
53 mm
1128 mm
1118 mm
9
-
7500.AB.64 - AeroBar 5225S Ionizing bar 64
7500.AB.64
AeroBar 5225S Ionizing bar 64"/1626 mm
31 mm
53 mm
1636 mm
1626 mm
13
-
