ESD Horizontal toggle clamp typ 6830, size 0
(Product No.: 630.6830.0)

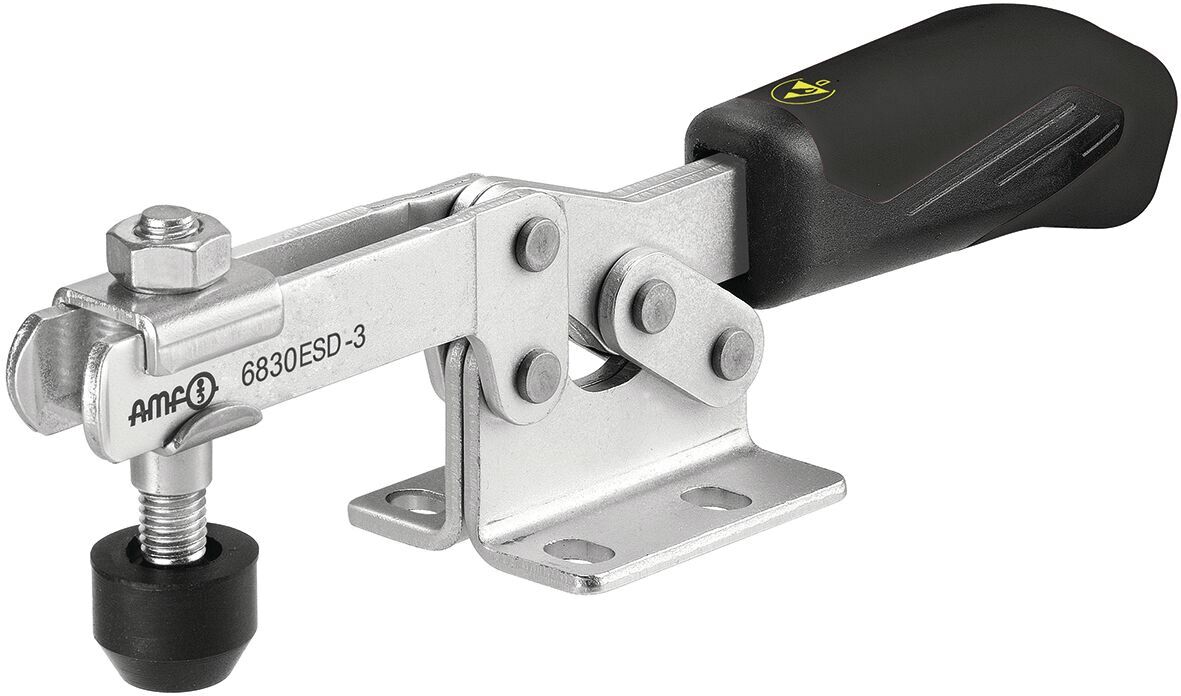

The image shows a sturdy, silver lever mechanism with a black handle. At one end, there is a round, black attachment, while the other end has a mounting.

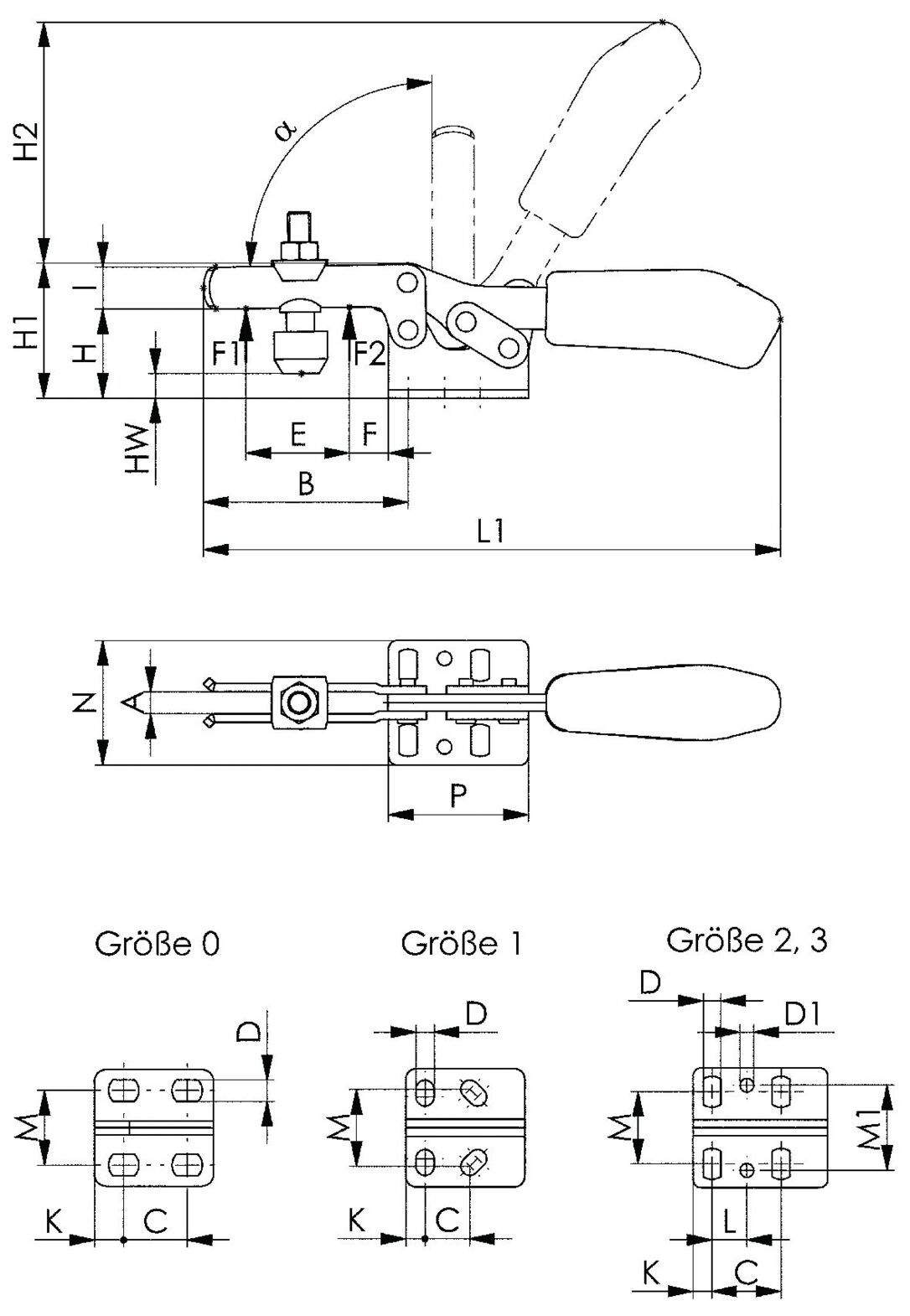

The image displays technical drawings of a lever mechanism. At the top, dimensions such as H1, H2, B, and L1 are shown, while at the bottom various sizes (0, 1, 2, 3) with specific measurements are depicted.
Mobile Preview: The image shows a sturdy, silver lever mechanism with a black handle. At one end, there is a round, black attachment, while the other end has a mounting.
Mobile Preview: The image displays technical drawings of a lever mechanism. At the top, dimensions such as H1, H2, B, and L1 are shown, while at the bottom various sizes (0, 1, 2, 3) with specific measurements are depicted.
Notice / Inquire

ESD Horizontal toggle clamp typ 6830, size 0

dpvlink:
24730
holding force:
0,25 - 0,4 kN
clamping screw:
M4 x 25
Conductivity:
dissipative
Weight :
35 g
Properties:
Further product information

chevron-down
at short notice at short notice
31,65 EUR
per PCE

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Horizontal toggle clamp typ 6830, size 0

The ESD horizontal toggle clamp type 6830, size 0, is optimally designed for use in ESD protection zones to safely handle electrostatically sensitive components. This model is characterized by its electrostatically dissipative components, such as the protective cap and handle, which are manufactured according to the standard DIN EN 61340-5-1.
The construction includes an open holding arm and a horizontal base, while the surface treatment consists of galvanization and passivation to prevent corrosion. The rivets made of stainless steel operate in case-hardened bearing bushes, ensuring a long service life and minimal wear. All bearing points are carefully greased.
Ergonomically designed, the handle offers a large hand rest with a soft component that is also oil-resistant, enhancing comfort and handling. A safety device for the pressure screw M4 x 25 at the end of the clamping arm prevents accidental loosening during operation. The clamp has a holding force of 0.25 to 0.4 kN and a total weight of only 35 g, making it extremely handy.
These technical features make the ESD horizontal toggle clamp type 6830 a reliable choice for professionals working in sensitive electronic manufacturing environments.
holding force
holding force
0,25 - 0,4 kN
clamping screw
clamping screw
M4 x 25
Conductivity
Conductivity
dissipative
Weight
Weight
35 g
Weight
Weight
35 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a metallic screw with a hexagonal nut and a round rubber base. The screw has a helical surface and is thicker in the middle.
ESD Clamping screw type 6890, size 0
ESD / clamping screw: M4 x 25 / Conductivity: dissipative / Weight : 5 g
ESD clamping screw type 6890, size 0
DIN 933, M4 x 25, U-shaped washer size 0
ESD version (DIN EN 61340-5-1)
dpvlink
24748

8,55 EUR
Show product
The image shows a metallic screw with a hexagonal nut and a round rubber base. The screw has a helical surface and is thicker in the middle.
ESD Clamping screw type 6890, size 1
ESD / clamping screw: M3 x 30 / Conductivity: dissipative / Weight : 10 g
ESD clamping screw type 6890, size 1
DIN 933, M5 x 30, U-shaped washer size 1
ESD version (DIN EN 61340-5-1)
dpvlink
24748

8,70 EUR
Show product
The image shows a metallic screw with a hexagonal nut and a round rubber base. The screw has a helical surface and is thicker in the middle.
ESD Clamping screw type 6890, size 2
ESD / clamping screw: M6 x 35 / Conductivity: dissipative / Weight : 22 g
ESD clamping screw type 6890, size 2
DIN 933, M6 x 35, U-shaped washer size 2
ESD version (DIN EN 61340-5-1)
dpvlink
24748

8,70 EUR
Show product
The image shows a metallic screw with a hexagonal nut and a round rubber base. The screw has a helical surface and is thicker in the middle.
ESD Clamping screw type 6890, size 3
ESD / clamping screw: M8 x 45 / Conductivity: dissipative / Weight : 40 g
ESD clamping screw type 6890, size 3
DIN 933, M8 x 45, U-shaped washer size 3
ESD version (DIN EN 61340-5-1)
dpvlink
24748

8,95 EUR
Show product
Documents

Downloads

For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.

Login or register now

Product Family

ESD Horizontal toggle clamps

  • with protective cap and handle of electrostatically dissipative material
  • with open clamping arm and horizontal base
  • galvanized and passivated
  • rivet made of stainless steel, which, for sizes 2 and 3, run in hardened bushings
  • pre-lubricated bearings
  • ergonomic, oil-resistant handle with large grip surface and soft component
  • lock washer for the trust bold at the ende of the clamping arm
 Article no. Size A B C D D1 E F
 630.6830.0 0 4 28 11.5 - 15.5  4.6 - 9.0 5.5
 630.6830.1 1 5 42 13.0 - 14.5 5.2 - 18.7 8.0
 630.6830.2 2 6 64 26.0 5.6 5.6 32.0 16.0
 630.6830.3 3 8 73 25.7 6.5 5.1 38.0 14.0
 Article no. Size H H1 H2 HW min. HW max.  I K
 630.6830.0 0 41.5 23.0 34 -5.5 0.0 7.5 6.3
 630.6830.1 1 19.0 30.0 49 -3.0 2.5 10.0 5.5
 630.6830.2 2 24.0 45.0 68 -1.5 5.0 13.2 6.0
 630.6830.3 3 32 48.5 86 -2.0 9.0 15.0 7.0
 Article no. Size L L1 M M1 N P a
 630.6830.0 0 - 79 16.0 - 25.0 25.5 90°
 630.6830.1 1 - 120 18.0 - 21.5 - 34.0 34.0 90°
 630.6830.2 2 12.7 162 19.5 - 29.5 28.5 42.0 38.0 90°
 630.6830.3 3 13.0 206 22.0 - 31.8 31.6 45.5 50.0 90°

Article image
Article description
ESD
holding force
clamping screw
Conductivity
Weight
Price
Compare
630.6830.0 - ESD Horizontal toggle clamp typ 6830, size 0
630.6830.0
ESD Horizontal toggle clamp typ 6830, size 0
0,25 - 0,4 kN
M4 x 25
dissipative
35 g
31,65 EUR
630.6830.1 - ESD Horizontal toggle clamp typ 6830, size 1
630.6830.1
ESD Horizontal toggle clamp typ 6830, size 1
0,8 - 1,1 kN
M5 x 30
dissipative
105 g
37,55 EUR
630.6830.2 - ESD Horizontal toggle clamp typ 6830, size 2
630.6830.2
ESD Horizontal toggle clamp typ 6830, size 2
1,0 - 1,2 kN
M6 x 35
dissipative
185 g
39,95 EUR
630.6830.3 - ESD Horizontal toggle clamp typ 6830, size 3
630.6830.3
ESD Horizontal toggle clamp typ 6830, size 3
1,8 - 2,5 kN
M8 x 45
dissipative
320 g
44,65 EUR
Show Compare List (0)

This product is similar to:
