ESD Push-pull type toggle clamp type 6844, size 3
(Product No.: 630.6844.3)

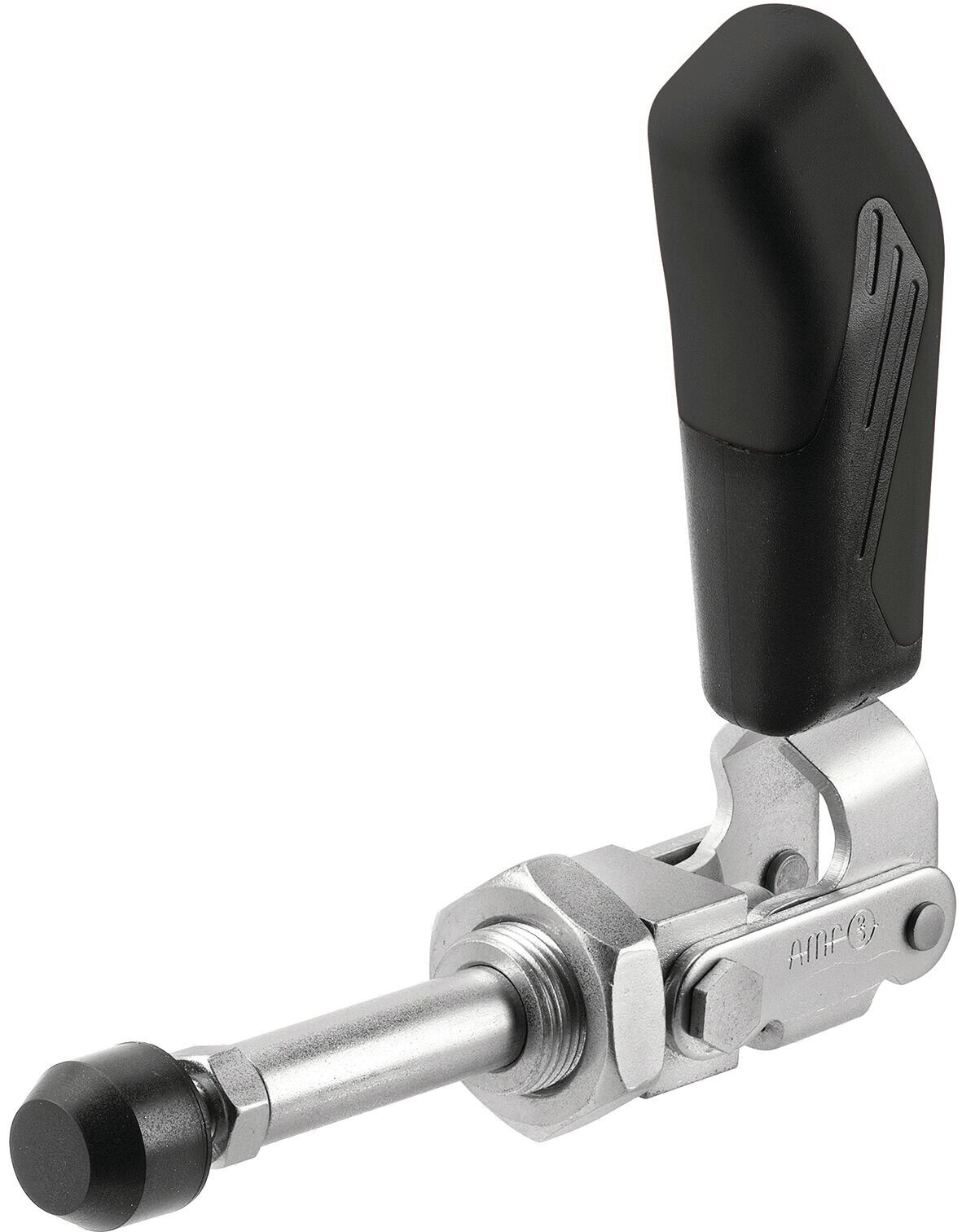

The image shows a lever with a black handle and a silver metal body. The lever is mechanically operated and has a cylindrical pin at one end.

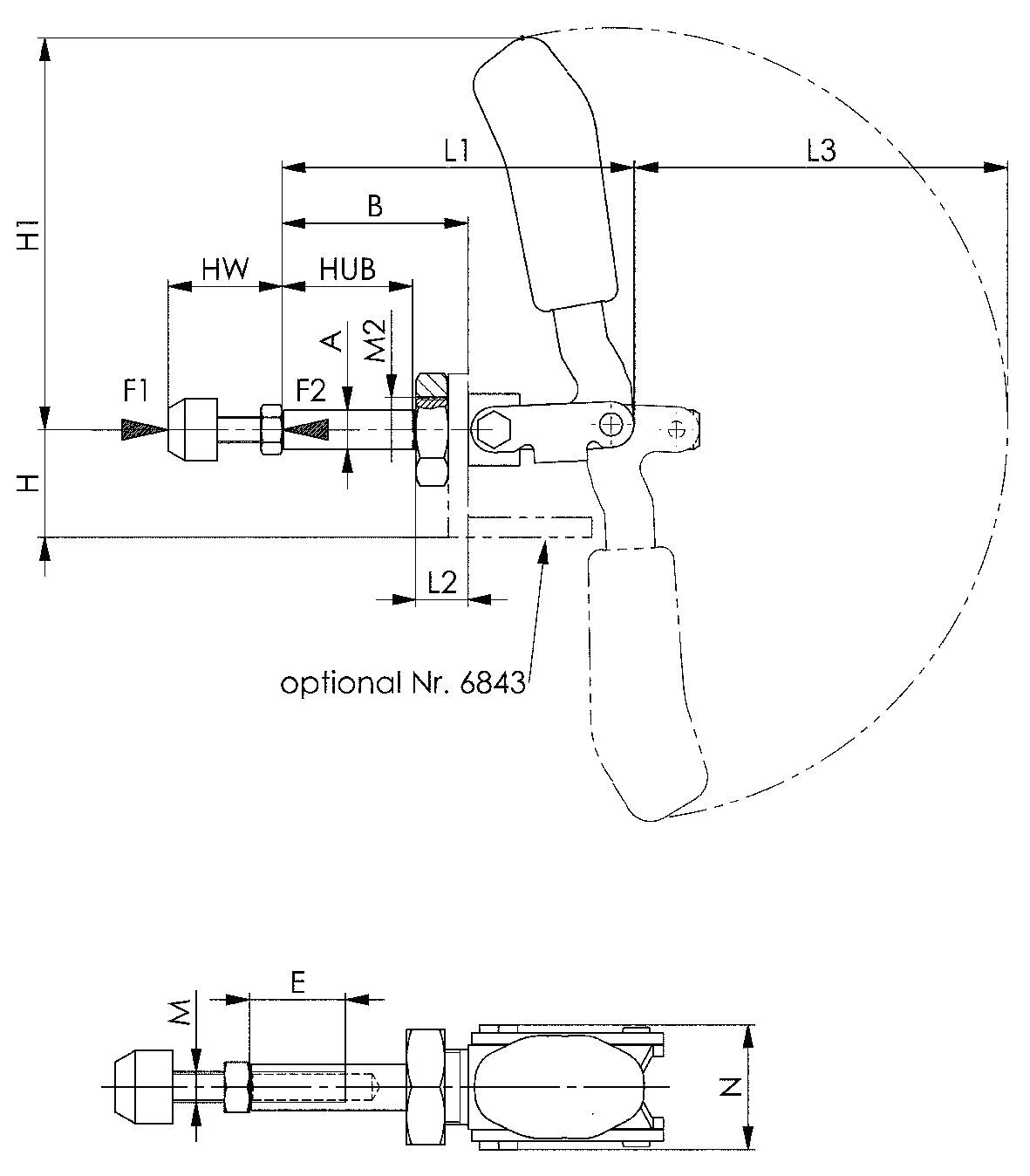

The image shows a technical drawing of a lever with dimensions. At the top, the lever is depicted with an ergonomic grip shape. Below is a side view with additional dimension specifications.
Mobile Preview: The image shows a lever with a black handle and a silver metal body. The lever is mechanically operated and has a cylindrical pin at one end.
Mobile Preview: The image shows a technical drawing of a lever with dimensions. At the top, the lever is depicted with an ergonomic grip shape. Below is a side view with additional dimension specifications.
Notice / Inquire

ESD Push-pull type toggle clamp type 6844, size 3

dpvlink:
24741
Properties:
Further product information

available available
54,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Push-pull type toggle clamp type 6844, size 3

The ESD toggle clamp type 6844, size 3, is specifically designed for use in ESD protection zones to safely handle electrostatically sensitive components. This model is characterized by its short design and the combination of compression and tension clamps, which allows for versatile application. The push rod offers long guidance, equipped with a mounting thread and a nut, ensuring high precision.
The surface of the clamp is galvanized and passivated to prevent corrosion, while the rivets are made of stainless steel and the set screws are tempered, providing additional stability. The bearing points are carefully greased to ensure smooth operation. The ergonomically designed handle is oil-resistant and features a large hand rest with a soft component, enhancing comfort during operation.
The clamp is equipped with a thrust screw M8 x 35 and offers a holding force of 2.5 kN. The weight of the clamp is 320 g and its conductivity is classified as conductive, making it ideal for use in sensitive electronic environments.
Conductivity
Conductivity
dissipative
clamping screw
clamping screw
M8 x 35
holding force
holding force
2,5 - 2,5 kN
Weight
Weight
320 g
