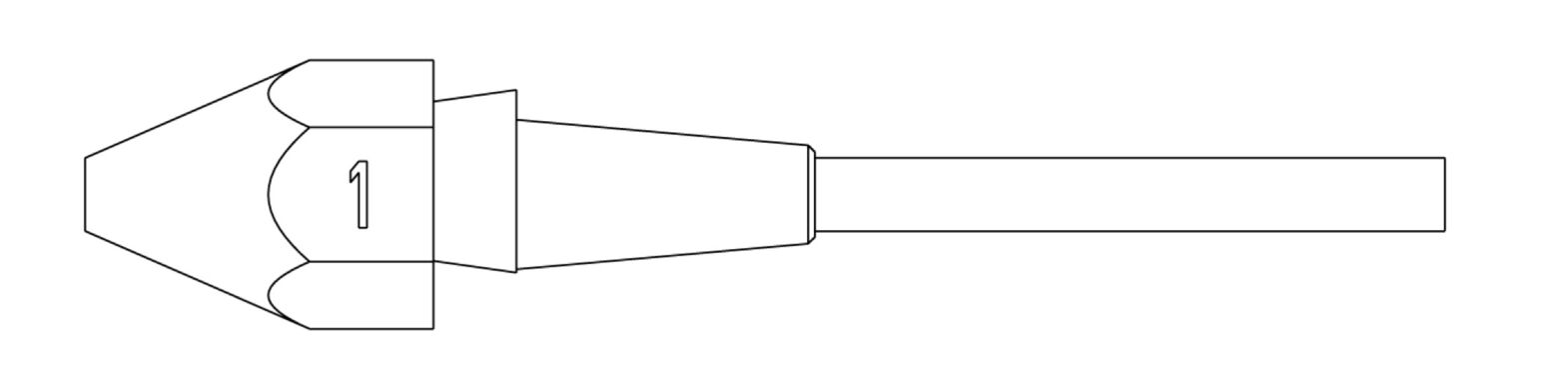

The image displays a sketch of a quill pen with a sharp, wide edge that is rounded at the top. In the center, there is a small number "1" depicted. The rest is a slender handle.
Suction nozzle XDS 1
(Product No.: 513.250.99)
The image displays a sketch of a quill pen with a sharp, wide edge that is rounded at the top. In the center, there is a small number "1" depicted. The rest is a slender handle.
Notice / Inquire

Suction nozzle XDS 1

dpvlink:
16470
Internal Ø:
1.4 mm
External Ø:
2.5 mm
Further product information

available available
11,40 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Suction nozzle XDS 1

The suction nozzle XDS 1 from Weller is a high-quality accessory for desoldering stations, specifically compatible with the models WXDP 120 and DSX 120. This product is characterized by its precise manufacturing and the use of heat-resistant materials, making it particularly durable and reliable. With an inner diameter of 1.4 mm and an outer diameter of 2.5 mm, the nozzle enables efficient suction of molten solder. It is available in various sizes and shapes to meet the different requirements in repair, prototyping, and manufacturing processes. Ideal for use in the electronics industry, the suction nozzle XDS 1 offers precise handling for optimal results.
Internal Ø
Internal Ø
1.4 mm
External Ø
External Ø
2.5 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 617
Complete Catalog 2023 - 2024

Product Family

Weller suction nozzle XDS for WXDP 120 and DSX 120

The XDS suction nozzles are designed for the WXDP 120 and DSX 120 desoldering irons and are ideal for removing solder from a wide variety of solder joints. They heat up, melt the solder and suck it out through an integrated tube into the tin collection container when the vacuum is activated.

Article image
Article description
Internal Ø
External Ø
Price
Compare
513.250.99 - Suction nozzle XDS 1
513.250.99
Suction nozzle XDS 1
1.4 mm
2.5 mm
11,40 EUR
513.251.99 - Suction nozzle XDS 2
513.251.99
Suction nozzle XDS 2
3.0 mm
5.3 mm
11,40 EUR
513.252.99 - Suction nozzle XDS 3
513.252.99
Suction nozzle XDS 3
1.0 mm
2.3 mm
11,40 EUR
513.253.99 - Suction nozzle XDS 4
513.253.99
Suction nozzle XDS 4
1.2 mm
2.5 mm
11,40 EUR
513.254.99 - Suction nozzle XDS 5
513.254.99
Suction nozzle XDS 5
1.8 mm
3.3 mm
11,40 EUR
513.255.99 - Suction nozzle XDS 6
513.255.99
Suction nozzle XDS 6
0.7 mm
1.9 mm
11,40 EUR
513.256.99 - Suction nozzle XDS 7
513.256.99
Suction nozzle XDS 7
1.2 mm
2.7 mm
11,40 EUR
513.257.99 - Suction nozzle XDS 8
513.257.99
Suction nozzle XDS 8
1.5 mm
2.9 mm
11,40 EUR
513.258.99 - XDS 9 Measuring tip
513.258.99
XDS 9 Measuring tip


20,10 EUR
