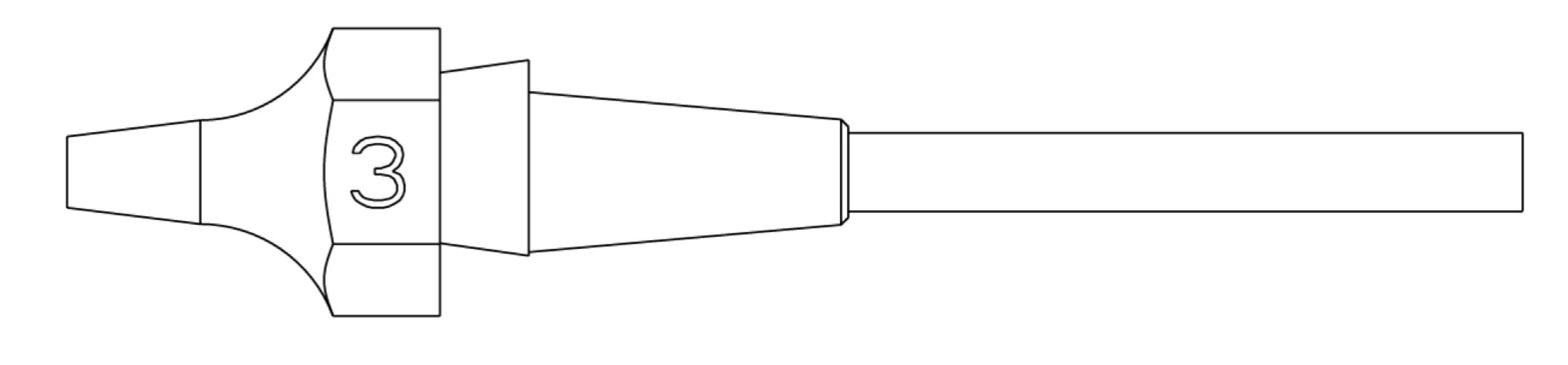

The image shows a long, narrow object with a tapered front tip. At the wider area, the number "3" is displayed, and a straight rod extends from the back.

Suction nozzle XDS 3

(Product No.: 513.252.99)

The image shows a long, narrow object with a tapered front tip. At the wider area, the number "3" is displayed, and a straight rod extends from the back.

(Product No.: 513.252.99)

Suction nozzle XDS 3

ArticleNo: 513.252.99

dpvlink:

16470

Internal Ø:

1.0 mm

External Ø:

2.3 mm

Further product information

Availability: available

available

available

11,60 EUR
per PCE

excl. 19% tax

1 PCE

Notice / Inquire

Product Info

Suction nozzle XDS 3

The suction nozzle XDS 3 from Weller is a specially developed accessory for Weller desoldering stations, particularly compatible with the desoldering irons WXDP 120 and DSX 120. This nozzle is characterized by its precision and efficiency in extracting molten solder, making it an indispensable tool for repairs, prototyping, and manufacturing processes in electronics.
The suction and desoldering nozzle is made from heat-resistant materials, ensuring a long lifespan and reliability. With an inner diameter of 1.0 mm and an outer diameter of 2.3 mm, it offers optimal fit and functionality for the specific requirements of professional electronics manufacturing.
Available in various sizes and shapes, the suction nozzle XDS 3 allows for flexible application for diverse desoldering needs.

Details

Internal Ø Internal Ø: 1.0 mm
External Ø External Ø: 2.3 mm

Show accessories

Accessories

Accessories

PDN desoldering nozzle pliers

Desoldering nozzle pliers for XDS suction nozzles

28,15 EUR

Show product

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Product Family

Weller suction nozzle XDS for WXDP 120 and DSX 120

The XDS suction nozzles are designed for the WXDP 120 and DSX 120 desoldering irons and are ideal for removing solder from a wide variety of solder joints. They heat up, melt the solder and suck it out through an integrated tube into the tin collection container when the vacuum is activated.

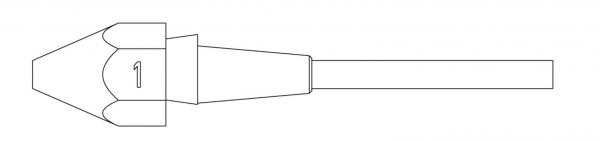

The image displays a sketch of a quill pen with a sharp, wide edge that is rounded at the top. In the center, there is a small number

Article image

Article description

ESD

Internal Ø

External Ø

Price

Compare

513.250.99 - Suction nozzle XDS 1

513.250.99
Suction nozzle XDS 1

1.4 mm

2.5 mm

513.251.99 - Suction nozzle XDS 2

513.251.99
Suction nozzle XDS 2

3.0 mm

5.3 mm

513.252.99 - Suction nozzle XDS 3

513.252.99
Suction nozzle XDS 3

1.0 mm

2.3 mm

513.253.99 - Suction nozzle XDS 4

513.253.99
Suction nozzle XDS 4

1.2 mm

2.5 mm

513.254.99 - Suction nozzle XDS 5

513.254.99
Suction nozzle XDS 5

1.8 mm

3.3 mm

513.255.99 - Suction nozzle XDS 6

513.255.99
Suction nozzle XDS 6

0.7 mm

1.9 mm

513.256.99 - Suction nozzle XDS 7

513.256.99
Suction nozzle XDS 7

1.2 mm

2.7 mm

513.257.99 - Suction nozzle XDS 8

513.257.99
Suction nozzle XDS 8

1.5 mm

2.9 mm

513.258.99 - XDS 9 Measuring tip

513.258.99
XDS 9 Measuring tip

Show Compare List (0)

This product is compatible with (for example):

The image shows a soldering iron with a long, narrow black handle and a golden soldering tip. A cable connects it to an electronic control.

DSX 120 desoldering iron

ESD

/ Power: 120 W / Heating-up time: 35 s

Desoldering iron DSX 120
Suitable suction nozzle series XDS

ESD protective

353,20 EUR

excl. 19% tax

Show product

The image shows a tattoo device with a silver and black casing. It has an orange attachment and a long cable connection. The shape is slim and ergonomic.

WXDP 120 desoldering iron 120 W

ESD

/ Power: 120 W / Heating-up time: 35 s / suitable soldering tip series: XDS

WXDP 120 120W soldering iron

ESD protective

319,70 EUR

excl. 19% tax

Show product

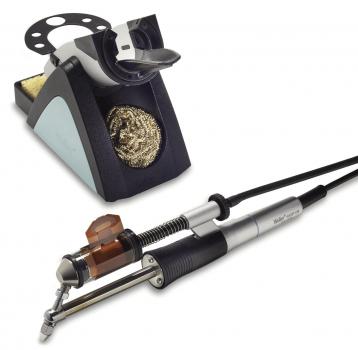

The image displays a tattoo machine with a metal grip and a cable connected to a colored base. The base features a round cutout and a dark color.
