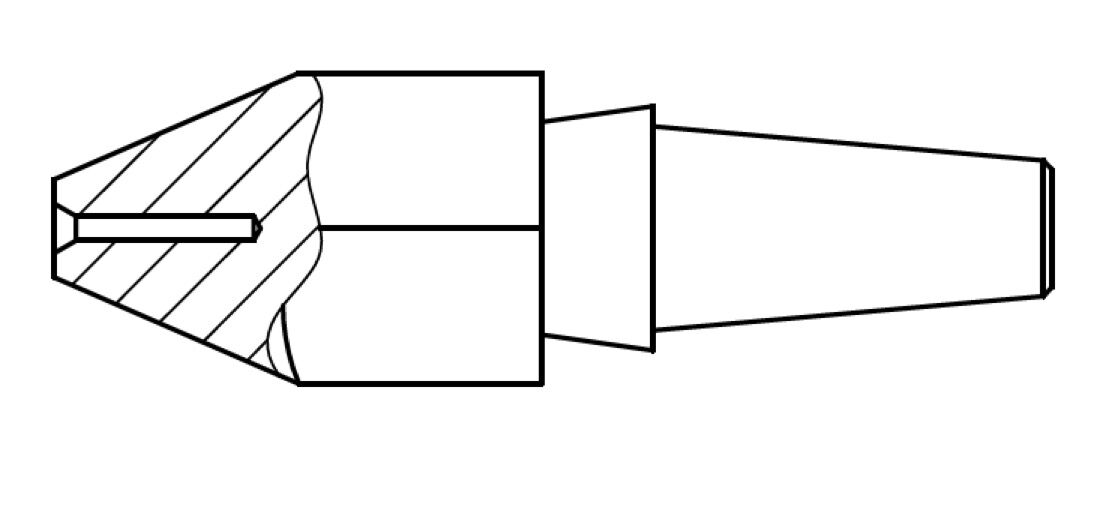

The image displays a drawing of a fountain pen nib. It has a conical shape with a small groove in the middle, which extends into a longer shaft.
XDS 9 Measuring tip
(Product No.: 513.258.99)
The image displays a drawing of a fountain pen nib. It has a conical shape with a small groove in the middle, which extends into a longer shaft.
Notice / Inquire

XDS 9 Measuring tip

dpvlink:
16470
Further product information

at short notice at short notice
20,50 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

XDS 9 Measuring tip

The Weller XDS 9 desoldering tip is a high-quality accessory for the WXDP 120 and DSX 120 desoldering stations. This specially developed suction and desoldering nozzle allows for precise and efficient removal of molten solder. Made from heat-resistant materials, the XDS 9 desoldering tip provides optimal performance for demanding applications in electronics manufacturing, repair, and prototyping. Available in various sizes and shapes, it meets the specific requirements of technical professionals and guarantees improved work quality in different areas of application.
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 617
Complete Catalog 2023 - 2024

Product Family

Weller suction nozzle XDS for WXDP 120 and DSX 120

The XDS suction nozzles are designed for the WXDP 120 and DSX 120 desoldering irons and are ideal for removing solder from a wide variety of solder joints. They heat up, melt the solder and suck it out through an integrated tube into the tin collection container when the vacuum is activated.

Article image
Article description
ESD
Internal Ø
External Ø
Price
Compare
513.250.99 - Suction nozzle XDS 1
513.250.99
Suction nozzle XDS 1
1.4 mm
2.5 mm
11,60 EUR
513.251.99 - Suction nozzle XDS 2
513.251.99
Suction nozzle XDS 2
3.0 mm
5.3 mm
11,60 EUR
513.252.99 - Suction nozzle XDS 3
513.252.99
Suction nozzle XDS 3
1.0 mm
2.3 mm
11,60 EUR
513.253.99 - Suction nozzle XDS 4
513.253.99
Suction nozzle XDS 4
1.2 mm
2.5 mm
11,60 EUR
513.254.99 - Suction nozzle XDS 5
513.254.99
Suction nozzle XDS 5
1.8 mm
3.3 mm
11,60 EUR
513.255.99 - Suction nozzle XDS 6
513.255.99
Suction nozzle XDS 6
0.7 mm
1.9 mm
11,60 EUR
513.256.99 - Suction nozzle XDS 7
513.256.99
Suction nozzle XDS 7
1.2 mm
2.7 mm
11,60 EUR
513.257.99 - Suction nozzle XDS 8
513.257.99
Suction nozzle XDS 8
1.5 mm
2.9 mm
11,60 EUR
513.258.99 - XDS 9 Measuring tip
513.258.99
XDS 9 Measuring tip


20,50 EUR
Show Compare List (0)

This product is compatible with (for example):

This product is similar to:

The image shows a tattoo device with a silver and black casing. It has an orange attachment and a long cable connection. The shape is slim and ergonomic.
WXDP 120 desoldering iron 120 W
WXDP 120 120W soldering iron
dpvlink
16463

319,70 EUR
Show product
The image displays a tattoo machine with a metal grip and a cable connected to a colored base. The base features a round cutout and a dark color.
WXDP 120 Solderin iron set
WXDP 120 desoldering set 120 W with WDH 70 rest
dpvlink
16463

381,90 EUR
Show product
