PP Grid Adhesive Tape 24 mm x 36 m
PP Grid Adhesive Tape 24 mm x 36 m

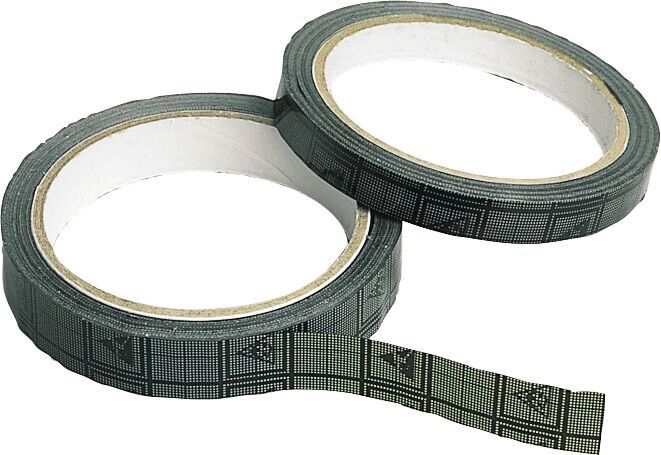

The PP grid adhesive tape, with a width of 24 mm and a roll length of 36 m, is specifically designed for use in ESD areas where work is done with electrostatically sensitive components. It is characterized by its conductive properties, achieved through a combination of an antistatic copolymer layer and a conductive grid layer. The tape is made from polypropylene with a solvent-based acrylic adhesive and ensures optimal performance even under varying storage conditions from 0 to 60 °C, without delamination, peeling, cracking, chipping, or abrasion.
Tensile Strength
- MD (Machine Direction): 4,000 psi
- CD (Cross Direction): 11,000 psi
Elongation
- MD (Machine Direction): 65%
- CD (Cross Direction): 20%
Antistatic Copolymer Adhesive Layer:
- 1 × 10⁹ Ω
Conductive Grid Layer:
- 10⁴ to 10⁵ Ω
Antistatic Copolymer Layer:
- 8 × 10¹² Ω
Details
- Width Width
- 24 mm
- Roll length Roll length
- 36 m
- Core diameter Core diameter
- 76 mm
- Thickness Thickness
- 0.049 mm
- Bleeder resistance Bleeder resistance
- 104 - 105 Ω
- Material Material
- polypropylene / Solvent-based acrylic adhesive
- ESD ESD
- yes
- Ambient temperature (storage conditions) Ambient temperature (storage conditions)
- 0 - 60 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
