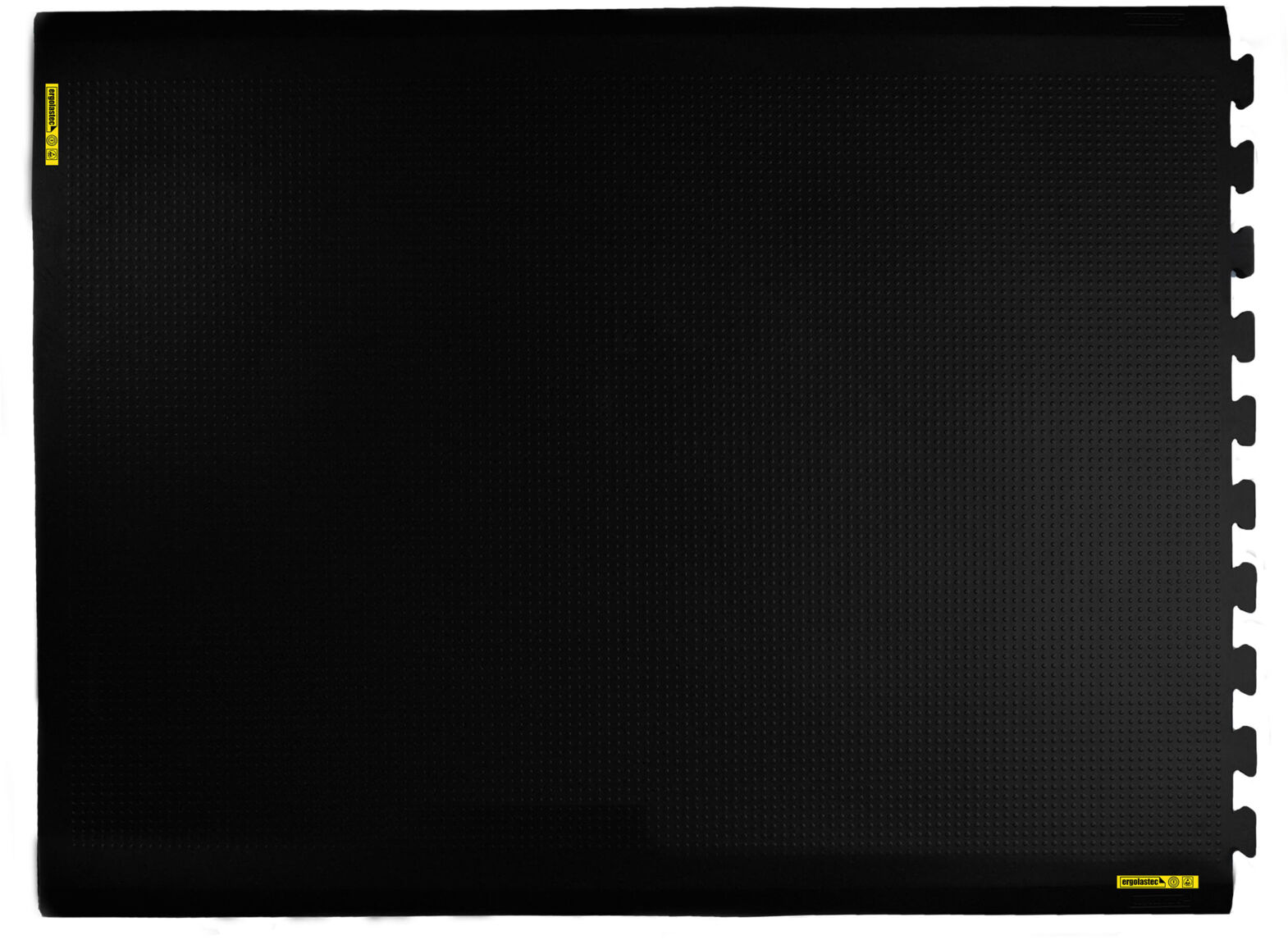

Workstation mat ESD-dry ergolastec end piece type D
The ergolastec workplace mat ESD-dry Type D, manufactured by ergolastec, is specifically designed for use in electronics and microelectronics work areas. This mat offers reduced tripping hazards due to its beveled outer edges and effectively protects falling objects. With a length of 1303 mm and a width of 1000 mm, as well as a thickness of 16 mm, the mat is robust and virtually odorless, making it ideal for enclosed spaces. The higher self-weight ensures improved stability, and the mat can withstand up to 200 kg of weight.The mat features a flat surface structure and cushioning hemispheres on the underside, providing additional comfort. It is made from a new rubber compound (SBR), has a Shore hardness of 55 ± 4 Shore A, and can be used in temperatures ranging from -35°C to +95°C. The electrical conductivity complies with the ESD standard DIN EN 61340-5-1, with a surface resistance of 10^7 Ω.
Thanks to the puzzle technique on one broad side, multiple Type D mats can be easily and flexibly connected without the need for fixation on the ground. This allows for adaptable design of the workspace according to DIN 33406.
Details
- Length Length
- 1303 mm
- Width Width
- 1000 mm
- Thickness Thickness
- 16 mm
- Color Color
- black
- Material Material
- SBR
- Surface resistance Rs Surface resistance Rs
- 107 Ω
- Shore hardness Shore hardness
- 55 Shore A
- Temperature resistance Temperature resistance
- -35 - 95 °C
- Weight Weight
- 19 kg
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
ergolastec® ESD Floor mats ESD-dry with/without interlocking system
Technical data:
Top side | flat structure |
Bottom side | RFLX DYNAMIC BASE with BIONIC TECHNOLOGY |
Outer edges | 20° beveled |
Dimensions | 16 mm |
Weight | 19 ± 1 kg |
Hardness | 55 ± 4 Shore A |
Temperature range | - 35°C to + 95°C |
Material | SBR (new rubber compound) |
Color | black |
Innovative RFLX DYNAMIC BASE
The RFLX DYNAMIC BASE is an innovative backing for workstation mats that was developed using BIONIC TECHNOLOGY. Inspired by nature, it combines the structure of the water lily with the efficiency of the honeycomb shape to ensure optimum dynamic movement and stability.
Advantages
- Activating micro-movements: The special geometry promotes natural movements, activates muscles and reduces fatigue.
- Maximum stability and flexibility: Multi-contact points ensure a secure stance and perfect support.
- Gentle on the joints when standing: The adaptable geometry ensures intelligent pressure distribution and relieves pressure on the knee joints.
- High durability: The optimized rubber compound is developed for maximum load and rotational movements at the workplace.
This back is part of the ergolastec® product line and was specially designed for standing and walking workstations in industry and trade. It bears the AGR seal of approval, which confirms its effectiveness in preventing back pain.
Comparison of the ergolastec floor mats
Model | ergolastec ESD floor mat | ergolastec ESD floor mat Vario A | ergolastec ESD floor mat Vario G | |
Color | black | anthracite | light grey | |
Mat type | Antistatic and anti-fatigue mat | |||
Field of application | Ideal for workplaces with walking, standing and turning movements. | |||
Can also be used in explosion-protected areas. Inspection and acceptance by a specialist is absolutely essential! | ||||
| Can also be used on floors with underfloor heating.. | |||
Ergonomics and surface geometry | The cushioning RFLX structure on the underside activates blood circulation and, in combination with the surfaces, provides appropriate pressure relief through intuitive balancing movements. | |||
Awarded the AGR seal of approval, the ergonomic mat promotes back health, can reduce downtime and increase employee productivity.. | ||||
| Thanks to the surface geometries, the rubber mat can be used as an orientation aid for visually impaired people. | |||
Material | SBR (styrene-butadiene rubber) - more flexible at low temperatures - more suitable for applications without heavy chemical exposure
| NBR (acrylonitrile-butadiene rubber) - significantly higher resistance to oil, petrol and other hydrocarbons - more suitable for applications involving contact with oils and chemical substances
| ||
| The thickness and high-quality material protects against unhealthy floor cold and is suitable for multi-shift operation. | |||
The rubber mat is electrically conductive in accordance with EN 61340-4-1 (surface resistance ≤ 107 Ohm) and is suitable for the special requirements of electronic and microelectronic workstations. All versions are marked with the ESD safety label. | ||||
Fire protection |
| Fire protection class Bfl-s1 | ||
Slip resistance | slip-resistant | |||
