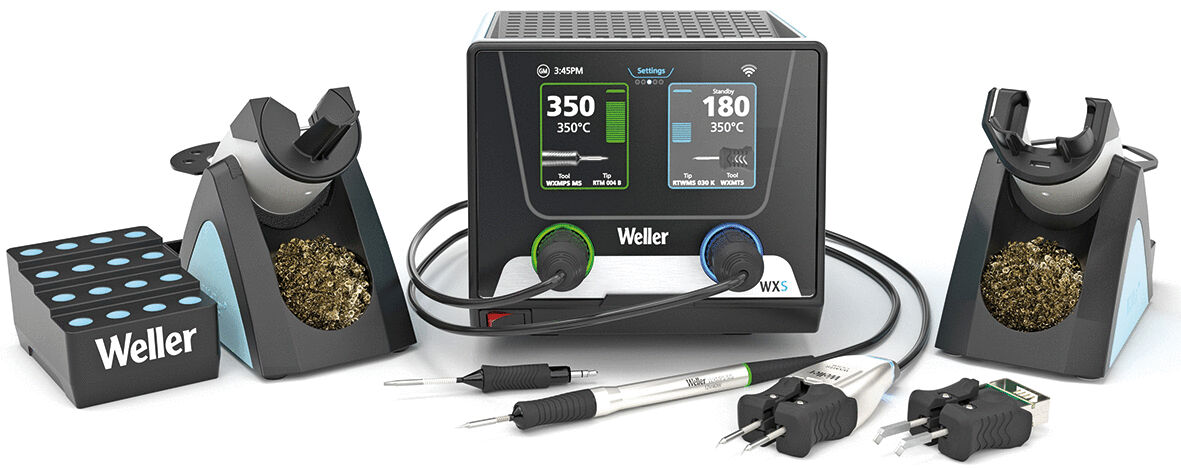

The image shows a soldering station with two soldering units, a digital display, two soldering tips, a cleaning brush, and cables. Everything is in black and blue.

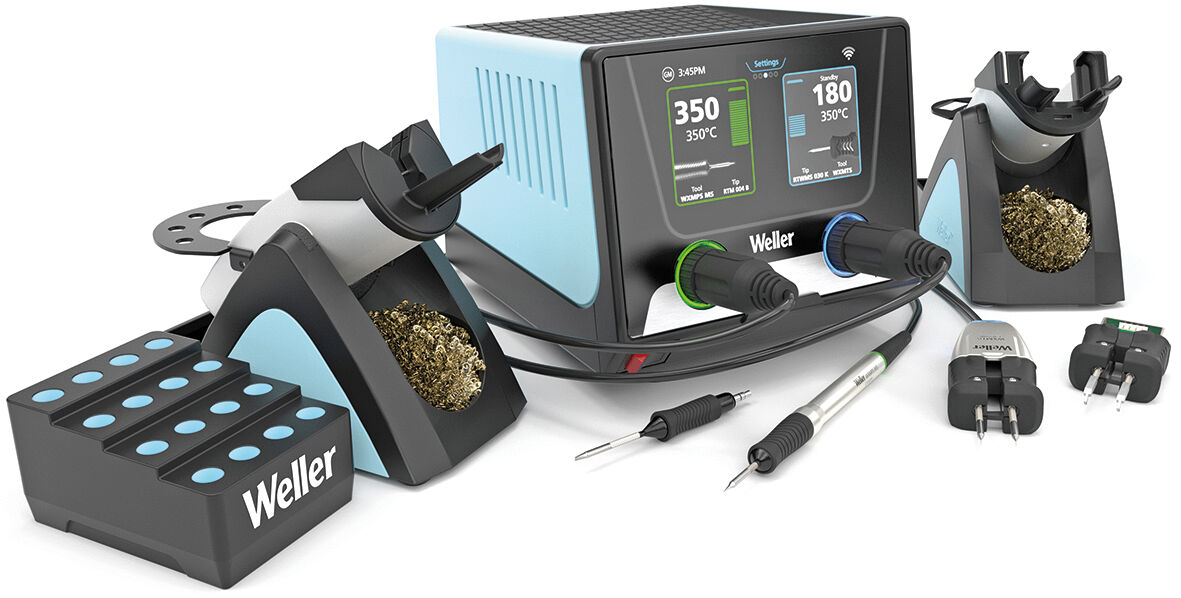

The image shows a soldering station with a digital display in the middle, two soldering tip holders on both sides, a holder for soldering wire, and several cables.
Preview: The image shows a soldering station with two soldering units, a digital display, two soldering tips, a cleaning brush, and cables. Everything is in black and blue.
Preview: The image shows a soldering station with a digital display in the middle, two soldering tip holders on both sides, a holder for soldering wire, and several cables.
WXSmart PICO (NANO) / MICRO rework set
(Product No.: 534.576.99)
The image shows a soldering station with two soldering units, a digital display, two soldering tips, a cleaning brush, and cables. Everything is in black and blue.
The image shows a soldering station with a digital display in the middle, two soldering tip holders on both sides, a holder for soldering wire, and several cables.
Mobile Preview: The image shows a soldering station with two soldering units, a digital display, two soldering tips, a cleaning brush, and cables. Everything is in black and blue.
Mobile Preview: The image shows a soldering station with a digital display in the middle, two soldering tip holders on both sides, a holder for soldering wire, and several cables.
Notice / Inquire

WXSmart PICO (NANO) / MICRO rework set

dpvlink:
28051
included soldering iron:
WXMPS MS / WXMTS
Safety rest:
WSR 200 / WSR 210
suitable soldering tip series:
RTMS MS / RTPS MS
Heating-up time:
5 s
Power:
300 W
Channels:
2
Properties:
Further product information

at short notice at short notice
1.866,45 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WXSmart PICO (NANO) / MICRO rework set

WXsmart PICO (NANO) / MICRO Rework Set
The WXsmart PICO (NANO) / MICRO Rework Set is a state-of-the-art combo soldering platform optimized for various applications in the electronics, medical, automotive, and aerospace industries. This set includes a soldering iron and a desoldering tweezer, both equipped with Pico and Micro tips for precise work. The devices offer outstanding heat-up and recovery times of under 3 seconds and support complete process control from the tip to the station. The user-friendly color touchscreen allows for easy operation, while integrated TLS encryption and two-factor authentication provide high protection against cyber attacks.


Contents:

534.516.99 WXsmart, 2-channel soldering station, 300 W
529.236.99 WXMPS MS Micro Soldering Iron, 40 W, 12 V
501.023.99 RTPS 004 S MS Pico Soldering Tip
501.091.99 RTMS 013 S MS Micro Soldering Tip
515.174.99 WSR 200 Safety Holder
513.212.99 Smart Micro Soldering and Desoldering Tweezers WXMTS Set
501.156.99 RTWPS 002 S X Pico Desoldering Tweezer Chisel Tip
534.502.99 ESD Soldering Tip Holder WCTH

With its comprehensive soldering and desoldering system, the WXsmart PICO (NANO) / MICRO Rework Set offers a powerful solution for professional applications requiring precision and safety.

included soldering iron
included soldering iron
WXMPS MS / WXMTS
Safety rest
Safety rest
WSR 200 / WSR 210
suitable soldering tip series
suitable soldering tip series
RTMS MS / RTPS MS
Heating-up time
Heating-up time
5 s
Power
Power
300 W
Channels
Channels
2
Fuse
Fuse
T3,15A
Voltage
Voltage
230 V
Height
Height
142 mm
Length
Length
173 mm
Width
Width
153 mm
ESD
ESD
yes
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature range
Temperature range
100 - 450 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a temperature measuring device in a light blue casing. It has a large display showing the temperature at 23.5 °C, below which there are two buttons and a small probe.
Temperature measuring device WCU
ESD temperature measuring device WCU
Battery operation, digital display,
Temperature unit °C and °F
dpvlink
26514

381,90 EUR
Show product

Spares

The image depicts a practical cleaning device with an upright housing, a round opening at the top, and a golden-colored metallic disc on the front.
Safety rest WSR 200
WSR 200 - 2-in-1 safety rest with brass
wool and cleaning sponge for WTP 90
dpvlink
26220

70,85 EUR
Show product
The image shows a handy tool handle. The handle is black with non-slip grooves, and at one end there is a metallic insert with a pointed shape, which is used for screwing.
Soldering tip chisel-shaped RTP 004 S MS
RTP 004 S MS chisel tip 0.4 x 0.2 mm
MIL-SPEC version , Weller soldering tip
(suitable for soldering iron WXPP MS)
dpvlink
25599

36,35 EUR
Show product
The image shows a black holder with three tiered levels. On each level, there are several round, slightly raised depressions in turquoise. The inscription "Weller" is in white on the front.
Soldering tip holder WCTH
ESD Soldering tip holder WCTH
suitable for up to 16 active Weller RT
soldering tips
dpvlink
26512

19,35 EUR
Show product
The image shows a soldering iron with a slim, silver body and a black, rubberized grip. The iron has a cable that leads to a power connection.
WXMPS MS Soldering iron
Soldering iron WXsmart series WXMPS MS 40 W
Handpiece without soldering tip
Matching soldering tips RTMS/RTPS MS
dpvlink
26830

223,95 EUR
Show product
The image displays a black device with two round openings and a screen. The screen shows two temperature readings and status information in green and blue font.
WXSmart Supply unit 230V
WXsmart supply unit 230V
2-channel high-performance station, 1 air and
1 vacuum channel. Up to 16 tools can be connected

-- only supply unit without accessories --
dpvlink
26822

1.195,45 EUR
Show product
The image shows a black tool with a non-slip surface and a pointed end. A thin, flexible metal head protrudes from the side, suitable for precise tasks.
Soldering tip chisel-shaped RTMS 013 S MS...
RTMS 013 S MS chisel-shaped tip 1.4 x 0.4 mm
Weller - Micro soldering tip
(suitable for soldering irons WXMPS MS
and WXsmart)
dpvlink
26980

43,05 EUR
Show product
The image shows a black adapter with a USB plug at one end and two pins at the other end. The adapter has a rubberized, textured surface for better grip.
Soldering tip pair chisel-shaped bent RTWPS...
RTWPS 002 S X Pico desoldering tweezers chisel tip
bent, tip width 0.2 mm, 2 x 40W, 12V
dpvlink
27471

77,55 EUR
Show product
The image shows an electric sharpener with a compact, sturdy body. On the top, there is an opening for inserting the pencil, next to the sharpener a power cord.
WXTMS desoldering tweezer set
Smart Micro soldering & desoldering tweezers WXMTS
set composed of:
WSR 210 Safety rest
WXMTS desoldering tweezers 80 W
RTWMS 030 K tip
dpvlink
27450

380,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WXSmart PICO (NANO) / MICRO rework set

Pico (Nano) / Micro rework set for any purpose. A new soldering set.
Optimized rework system for all Pico (nano) and micro tasks in the electronics, medical, automotive and aerospace industries. The set offers 1 soldering iron with 2 soldering tips from the smallest to the largest soldering application, as well as a desoldering tweezer with pico and micro tips. The devices feature the fastest heat-up and recovery times, complete process control from tip to station, best-in-class connectivity, an easy-to-use color touchscreen, and cybersecurity.

  • Suitable for 2 tip families
    The kit includes 2 soldering tips, a pico tip for very small applications and a micro tip for standard applications. Both tip families fit on just one soldering iron handle.
  • Efficiency and fast heat-up times
    The new Pico (Nano)/Micro soldering iron and desoldering tweezers have the fastest heat-up and recovery times of less than 3 seconds. Excellent heat transfer and recovery time during the soldering process for high performance and continuous workflow. The short distance between the tip and the handle ensures maximum precision during the soldering process.
  • Complete process control
    Smart soldering tips with an individual serial number, smart tools for storing data parameters and a smart soldering station ensure complete process control and calibration history.
  • Individual and repeatable soldering processes
    Up to 10 parameter settings can be customized and stored in the soldering iron, including standby temperatures and automatic shutdown times.
  • Protection against cyber attacks
    TLS encryption and two-factor authentication (2FA), including Weller's built-in certificate upload mechanism that provides the soldering station with a customer verification certificate, as well as proprietary software update.
  • Better quality of results
    Managing your entire soldering process, from the soldering tip to the station, has never been easier and more productive than with the first all-in-one handheld soldering platform, WXsmart. With Total Process Control, WXsmart offers maximum connectivity and traceability with the highest quality. The platform supports all IoT standards. It is the first handheld soldering station with cyber security that prevents costly downtime.
  • ESD-safe
    The WXsmart station and all connected tools are fully ESD-safe.
