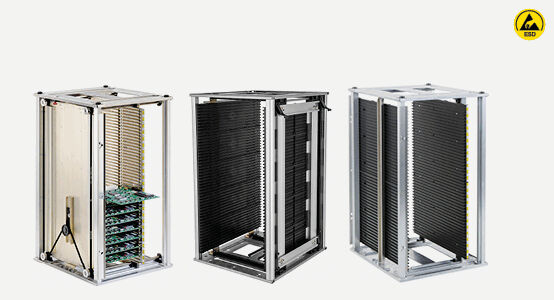

PCB magazine series cab

The high-quality PCB magazines from cab impress with their high quality, safe handling and reliable protection against electrostatic discharge. They offer ideal support when handling PCBs and enable precise and time-efficient adjustment to different PCB sizes.

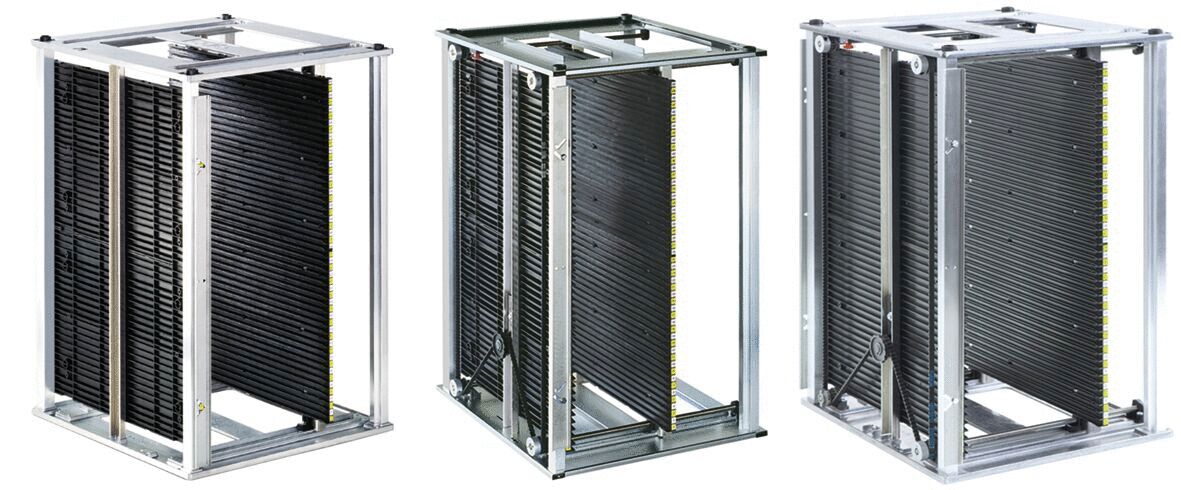

The 6000 and 7000 series are a further development of the 600, 700, and 800 series. They differ from their predecessor versions in that they have closed base plates.

The width of the 6000 series is adjusted using manual screw clamps. The 7000 series is adjusted to the required width within a few seconds using a toothed belt.

The sophisticated system from cab can be optimally integrated into any electronics production and meets every requirement.

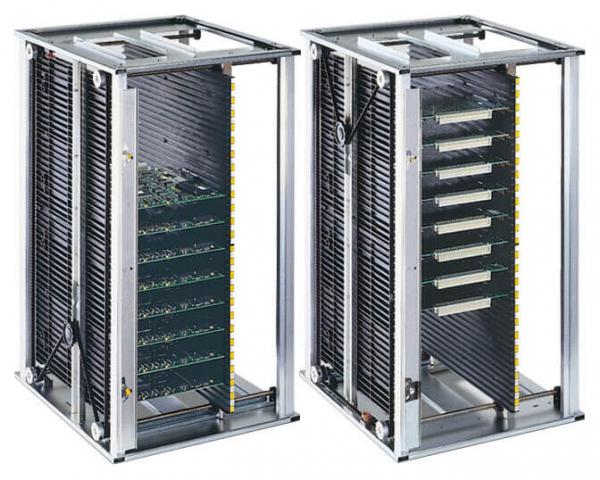

Width adjustment by hand using four screw clamps





Magazine with plastic partition walls

The 6000 series is a cost-effective option.

Adjust the PCB width manually by moving the partition wall and securing it with four screw clamps.

Metal magazine

Magazines with metal partition walls are available for high mechanical and thermal loads up to 200°Ch.

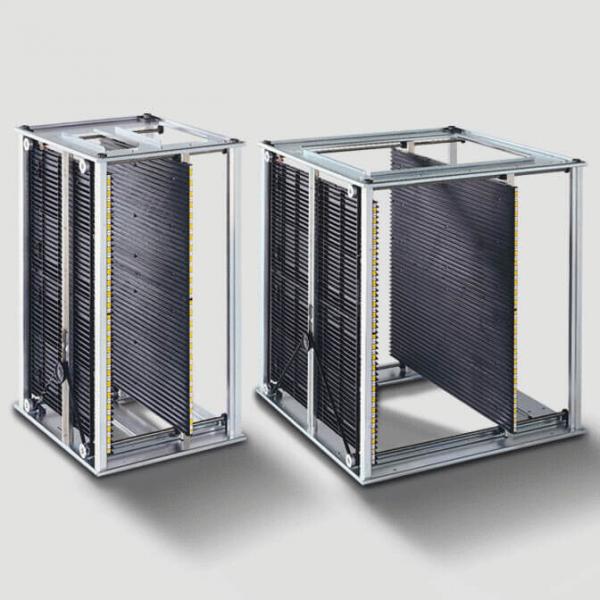

Width adjustment manually on the toothed belt or motorized on the coupling





The base plates are completely closed to protect the circuit boards. The web wall is adjusted in the same way as in the previous 800 series. The adjustment is made directly in the unloader. Once the magazine has been positioned in the unloader, a clutch is connected to the spindle gear using the servomotor.

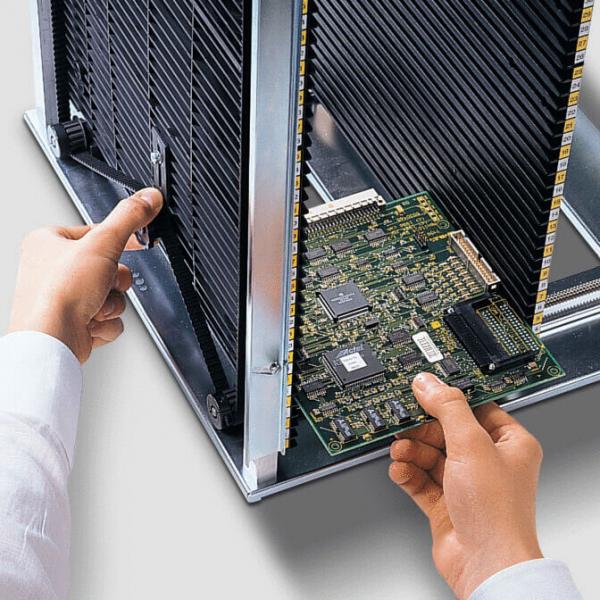

The toothed belt is clamped manually using the Fastlock (quick-release fastener) or, in the case of automated width adjustment, by a ram in the unloader.

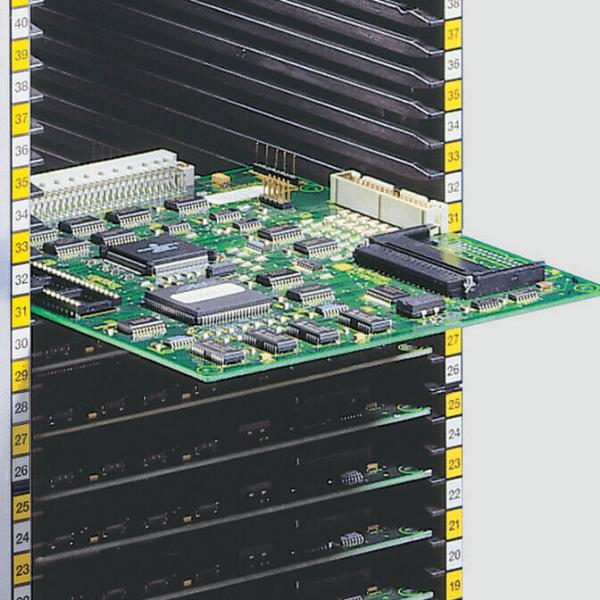

Safe guidance

 PCBs.   that the

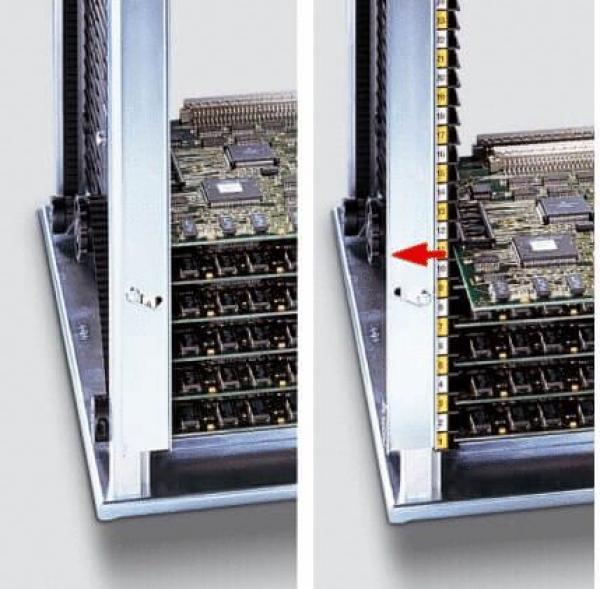

Transport lock

For securing the PCB, safety bars are mounted by default on the front and back of the fixed sidewall.

The helical guide allows the  safety bar to fall automatically into the locking position due to its own weight. For opening the transport lock the bar is moved outward until it clicks.

The magazine is locked on the left-hand side and unlocked on the right-hand side.

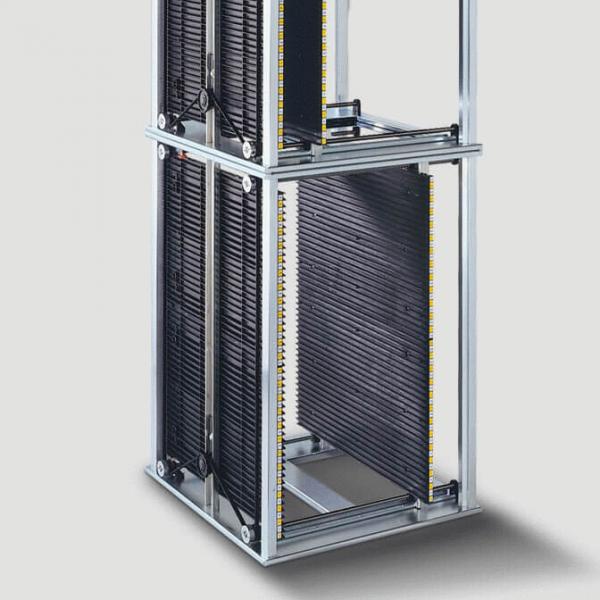

Stackable

There are four knobs at the top of the magazine used to stack the magazines in a space-saving and safe way.

Reversible

By the vertical symmetry the magazines can be placed upside down for handling PCB equipped on both sides. The stacking knobs can be removed for this purpose.

Many standard types

The PCB magazines are available in various standard sizes. The different types correspond to the commonly used magazine sizes on the market.

Partly assembled

The magazine is delivered as a set consisting of a set of baseplates and a set of partitions. The final assembly is done by the customer.

Assembled

The magazine is supplied in assembled condition.

NEW
NEW
PCB magazines series 6000
ESD-protective
PCB magazine 6001.1 PS, partially assembled
ESD / Material: polystyrene / Type: partially assembled / Length : 355 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Environment: 50 °C
PCB magazine 6002.1 partially assembled
ESD / Material: polystyrene / Type: partially assembled / Length : 400 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Environment: 50 °C
PCB magazine 6002.2, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 400 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 6001.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 355 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 200 °C
PCB magazine 6002.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 400 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 200 °C
PCB magazine 6003.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 400 mm / Width : 380 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 200 °C

6 Products
Product No.: 8919905
from 235,00 EUR
excl. 19% tax
to the product family
Preview: Image
Preview: Image
Preview: Image
Preview: Image
Preview: Image
NEW
NEW
Accessories for PCB magazines 6000 + 7000
Transport lock A for PCB magazines
Transport lock B for PCB magazines
Transport lock C for PCB magazines
Clip transport lock for PCB magazines
AD 401 adjustment device for PCB magazines

5 Products
Product No.: 8916654
from 12,50 EUR
excl. 19% tax
to the product family
Preview: Image
Preview: Image
NEW
NEW
PCB magazines series 7000
ESD-protective
PCB magazine 7001.1 PS, partially assembled
ESD / Material: polystyrene / Type: partially assembled / Length : 355 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Environment: 50 °C
PCB magazine 7003.1 PS, partially assembled
ESD / Material: polystyrene / Type: partially assembled / Length : 400 mm / Width : 380 mm / Height : 563 mm / Temperature resistance Environment: 50 °C
PCB magazine 7004.1 PS, partially assembled
ESD / Material: polystyrene / Type: partially assembled / Length : 460 mm / Width : 400 mm / Height : 563 mm / Temperature resistance Environment: 50 °C
PCB magazine 7001.2 PC, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 355 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 7002.2 PC, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 400 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 7003.2 PC, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 400 mm / Width : 380 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 7004.2 PC, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 460 mm / Width : 400 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 7016.2 PC, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 535 mm / Width : 460 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 7017.2 PC, partially assembled
ESD / Material: polycarbonate / Type: partially assembled / Length : 535 mm / Width : 530 mm / Height : 563 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C
PCB magazine 7002.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 400 mm / Width : 320 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 100 °C
PCB magazine 7003.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 400 mm / Width : 380 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 100 °C
PCB magazine 7004.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 460 mm / Width : 400 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 100 °C
PCB magazine 7016.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 535 mm / Width : 460 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 100 °C
PCB magazine 7017.3 metal, assembled
ESD / Material: metal / Type: completely assembled / Length : 535 mm / Width : 530 mm / Height : 563 mm / Temperature resistance Insertion: 200 °C / Temperature resistance Environment: 100 °C

14 Products
Product No.: 8919917
from 365,00 EUR
excl. 19% tax
to the product family
The image shows a rectangular box with a transparent lid. Inside, there are several narrow, vertical elements arranged. The surface appears shiny and dark.
ESD protective cover for PCB magazines series 600/700/800/6000/7000
ESD-protective
ESD Protective cover 601/701/801/6001/7001
ESD
ESD Protective cover 602/702/802/6002/7002
ESD
ESD Protective cover 603/703/803/6003/7003
ESD
ESD Protective cover 704/804/7004
ESD
ESD Protective cover 706/716/806/816/7016
ESD
ESD Protective cover 707/717/807/817/7017
ESD

6 Products
Product No.: 8916414
from 124,70 EUR
excl. 19% tax
to the product family
The image shows a black, rectangular object with a protruding, short rod. It has an L-shaped contour that resembles a hook or bracket.
Preview: The image shows a black, rectangular object with a protruding, short rod. It has an L-shaped contour that resembles a hook or bracket.
Preview: The image shows a narrow, vertical holder made of black plastic with five forward-facing hooks. The hooks are evenly distributed for hanging items.
Groove lock for PCB magazines
ESD-protective
Slot lock 1-fold for PCB magazines
Slot lock 5-fold for PCB magazines

2 Products
Product No.: 8916571
from 76,00 EUR
excl. 19% tax
to the product family
The image shows an open, rectangular rack with many vertical rails. Black panels are arranged on the sides, which could hold various devices.
Bracket for accompanying documents
ESD-protective
Bracket for accompanying documents for
plastic side parts

Product No.: 8913416
22,00 EUR
excl. 19% tax
Show product
The image shows a rectangular structure made of metal with vertical, black slats. These are attached to a frame that is stable and straight-lined. The slats are partially movable.
 Discontinuing
-10%
 Discontinuing
-10%
PCB magazine 601.1 PS, partially assembled
ESD / Width : 320 mm / Length : 355 mm / Height : 563 mm / PCB width: 40 - 250 mm / PCB length: 342 mm / Temperature resistance Insertion: 60 °C / Temperature resistance Environment: 50 °C
601.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
Continuous use temperature max. 50°C
+++ 601.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++

Product No.: 8917601
Our standard price 220,00 EUR
Your price 198,00 EUR
excl. 19% tax
Show product
