CORSTAT Tray COR-05.CTR
CORSTAT Tray COR-05.CTR

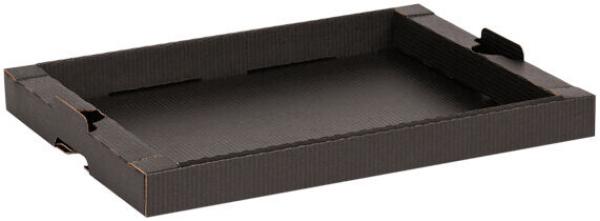

The CORSTAT Tray COR-05.CTR, manufactured by Kolb, is a highly functional solution for the storage and transport of sensitive electronic components. This corrugated tray is coated both inside and outside with an electrostatically conductive layer, additionally protected on the outside by a water-repellent and scratch-resistant layer. The dimensions of the tray are 297 x 230 x 28 mm inside and 351 x 246 x 31 mm outside.The trays are stackable and particularly robust due to the stacking lug reinforcement. A special feature is the electrostatic shielding with a resistance of 10^5 to 10^6 Ohm and a shielding energy of 10 nJ. The product is available in various versions, including variants without foam inserts as well as models with conductive or dissipative foam inserts in different thicknesses and colors.
Each tray is recyclable and available in black. They fit into standardized Euro containers and Customer-Store containers, making them suitable for a variety of applications. The minimum order quantity is 10 pieces.
Details
- Color Color
- black
- Height Height
- 31 mm
- Internal height
- 28 mm
- Internal length
- 297 mm
- Internal width Internal width
- 230 mm
- Length Length
- 351 mm
- Width Width
- 246 mm
- Conductivity Conductivity
- shielding / conductive
- Surface resistance Rs Surface resistance Rs
- 105 - 106 Ω
- Material Material
- corrugated board
- recyclable recyclable
- yes
- Recycling rate material Recycling rate material
- 100 %
- Foam Foam
- without foam
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
-
For this article you will find, for example, (operating) instructions, product and material information, care instructions, safety and technical data sheets. Please log in or register now to access the documents.
Login or register now
Product Family
CORSTAT Tray
The trays in this product family are available in different versions: without foam, with conductive/conductive foam inlay or extra sturdy. The respective version can be identified by the article number:
- CTR = without foam
- CTR.as = with foam inlay dissipative, pink (thickness 2 mm, tolerance +/- 0.5 mm)
- CTR.el = with foam inlay conductive, black (thickness 1.5 mm, tolerance +/- 0.5 mm)
- CRT-EE = without foam inlay, very stable version, high shielding
Article image
Article description
ESD
outside LxWxH
inside LxWxH
Version
Price
Compare
550 x 346 x 33 mm
499 x 330 x 28 mm
sturdy version
550 x 346 x 43 mm
499 x 330 x 40 mm
sturdy version
550 x 346 x 73 mm
499 x 330 x 70 mm
sturdy version
