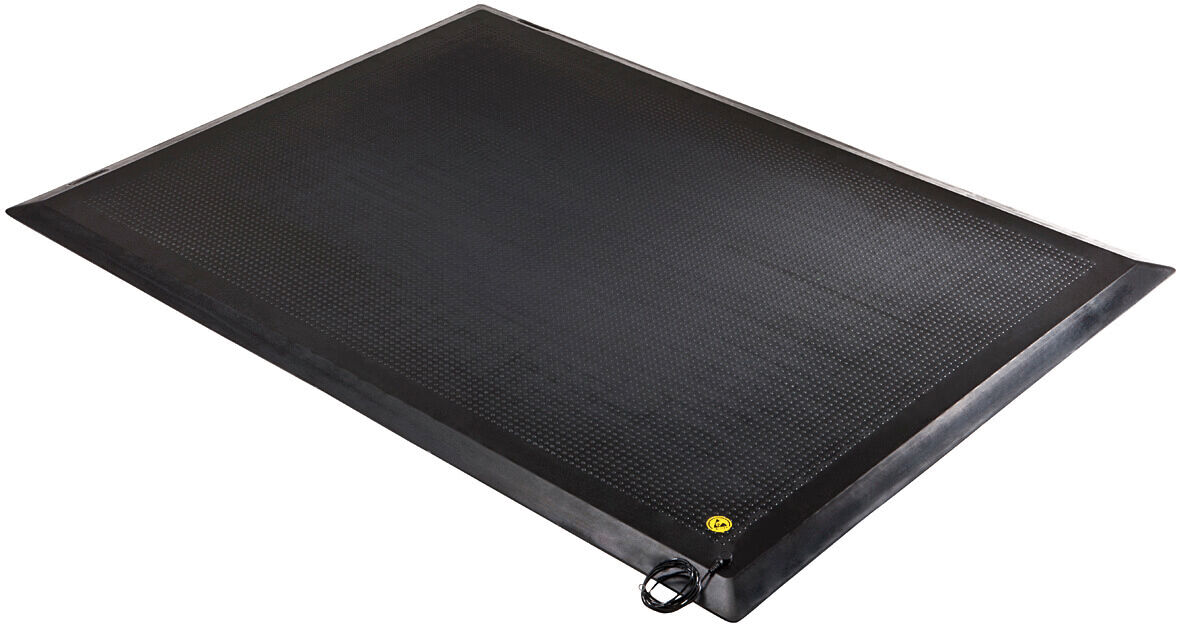

Workstation mat ESD-dry ergolastec type A without interlocking system
The ergolastec® ESD-dry workplace mat Type A, manufactured by ergolastec, is specifically designed for use at electronics and microelectronics workstations. This mat offers optimal stability at dry workplaces due to its flat surface structure and slip-resistant properties. With dimensions of 1350 x 1000 mm and a thickness of 16 mm, along with beveled edges all around that minimize the risk of tripping, it combines safety with comfort.The mat is characterized by its elastic cushioning, which relieves muscles and joints and provides comfortable standing comfort. It is heat and impact sound insulating, offers protection for falling objects, and due to its high stability, it is also suitable for the use of transport equipment. Despite its higher own weight of 19 kg, which ensures better lying stability, it is easy to clean.
The material SBR ensures almost no smell, making the mat also ideal for enclosed spaces. It is electrically conductive according to EN 61340-4-1 and meets the ESD standard DIN EN 61340-5-1 ESD. The mat withstands temperatures from -35°C to +95°C and has a Shore hardness of 55 ± 4 Shore A.
Details
- Length Length
- 1350 mm
- Width Width
- 1000 mm
- Thickness Thickness
- 16 mm
- Color Color
- black
- Material Material
- SBR
- Surface resistance Rs Surface resistance Rs
- 107 Ω
- Shore hardness Shore hardness
- 55 Shore A
- Temperature resistance Temperature resistance
- -35 - 95 °C
- Weight Weight
- 19 kg
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
ergolastec® ESD Floor mats with/without interlocking system
Technical data:
Top side | flat structure |

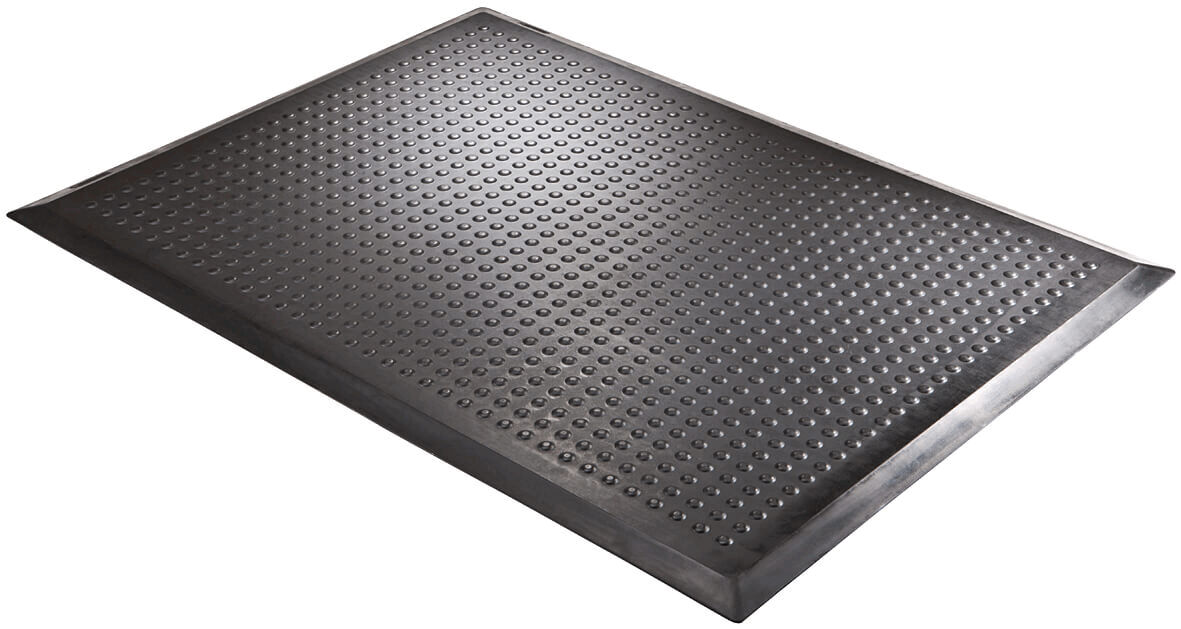

Bottom side | shock-absorbing bubbles |
Outer edges | 20° beveled |
Dimensions | 16 mm |
Weight | 19 ± 1 kg |
Hardness | 55 ± 4 Shore A |
Temperature range | - 35°C to + 95°C |
Material | SBR (new rubber compound) |
Color | black |
Comparison of the ergolastec floor mats
Model | ergolastec ESD floor mat | ergolastec ESD floor mat Vario A | ergolastec ESD floor mat Vario G | |
Color | black | anthracite | light grey | |
Mat type | Antistatic and anti-fatigue mat | |||
Field of application | Ideal for workplaces with walking, standing and turning movements. | |||
Can also be used in explosion-protected areas. Inspection and acceptance by a specialist is absolutely essential! | ||||
| Can also be used on floors with underfloor heating.. | |||
Ergonomics and surface geometry | The cushioning RFLX structure on the underside activates blood circulation and, in combination with the surfaces, provides appropriate pressure relief through intuitive balancing movements. | |||
Awarded the AGR seal of approval, the ergonomic mat promotes back health, can reduce downtime and increase employee productivity.. | ||||
| Thanks to the surface geometries, the rubber mat can be used as an orientation aid for visually impaired people. | |||
Material | SBR (styrene-butadiene rubber) - more flexible at low temperatures - more suitable for applications without heavy chemical exposure
| NBR (acrylonitrile-butadiene rubber) - significantly higher resistance to oil, petrol and other hydrocarbons - more suitable for applications involving contact with oils and chemical substances
| ||
| The thickness and high-quality material protects against unhealthy floor cold and is suitable for multi-shift operation. | |||
The rubber mat is electrically conductive in accordance with EN 61340-4-1 (surface resistance ≤ 107 Ohm) and is suitable for the special requirements of electronic and microelectronic workstations. All versions are marked with the ESD safety label. | ||||
Fire protection |
| Fire protection class Bfl-s1 | ||
Slip resistance | slip-resistant | |||
