Colorex Plus EC interlocking system
(Product No.: 1265.EC621)
The image shows a floor covering made of light, marbled tiles. One tile is slightly shifted and placed over a crack in the substrate. The substrate is gray.

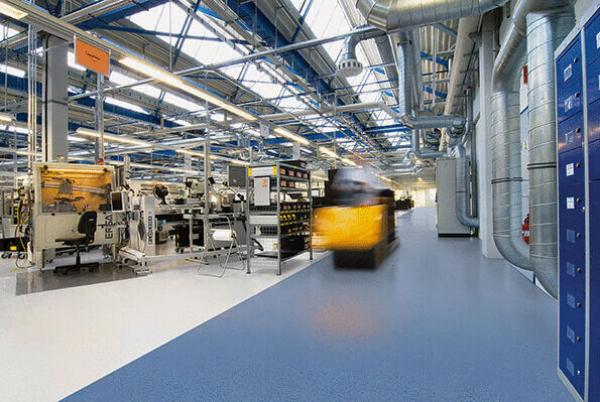

The image shows a modern factory hall with high ceilings, blue steel beams, and a bright floor. On the left side are machines and shelves, while a forklift is on the move.

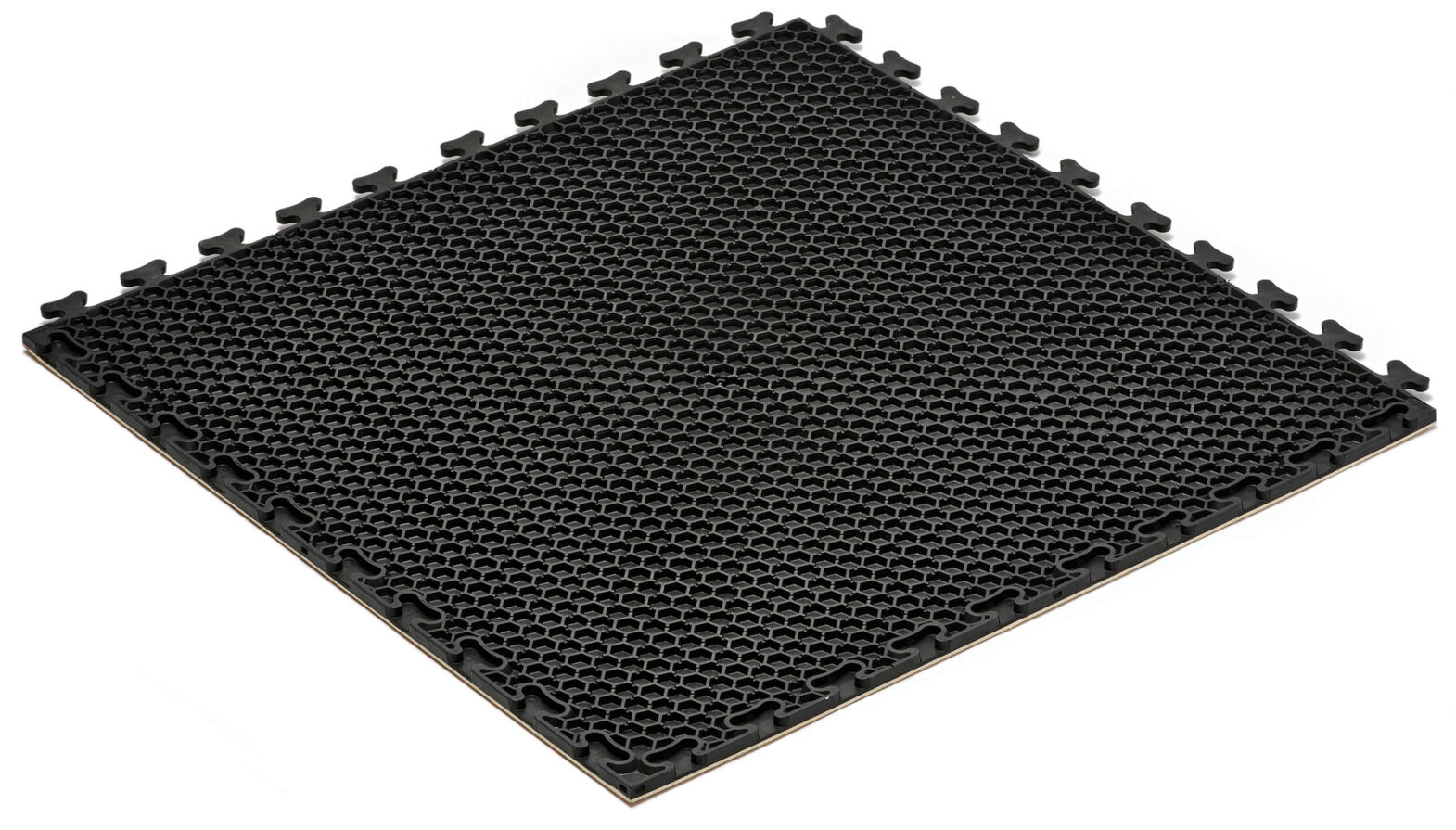

The image shows a rectangular, black rubber mat with a textured, honeycomb-like pattern. The edges have connectors to join multiple mats together.
The image shows a bright, textured surface with many small, irregular shapes and lines that appear to be randomly arranged. Below is the inscription "Everest".
The image shows a bright, almost white surface with fine, irregular gray and black speckles that resemble marble or a mineral coating. Below it is the word "Montblanc".

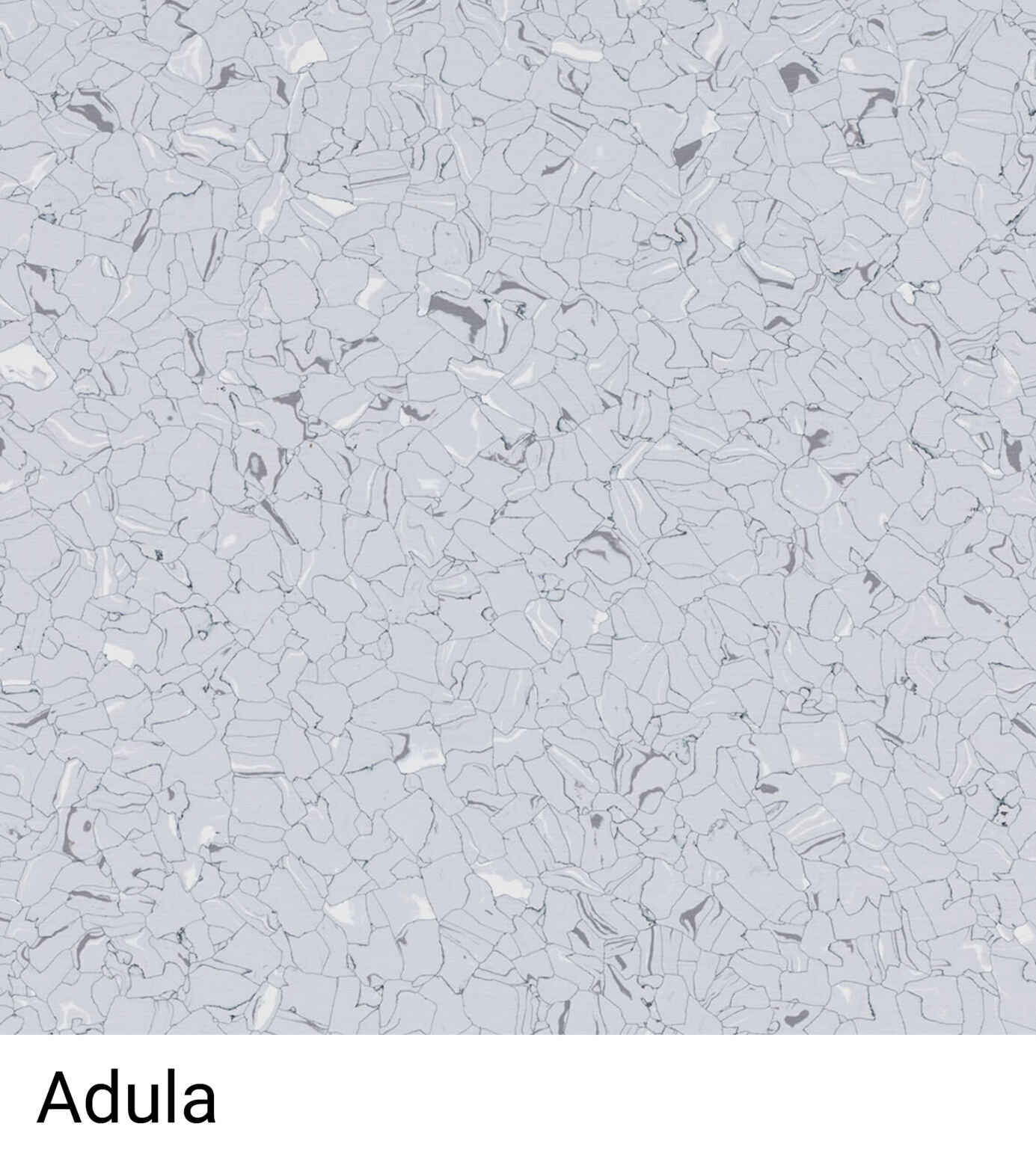

The image shows a bright, gray surface made up of many small, irregular, and shiny particles. These are arranged in various shades of gray. Below it reads "Adula".
The image shows a structured, gray surface with small, irregular, lighter speckles. Below is the word "Quartz". The colors are subtle and harmonious.

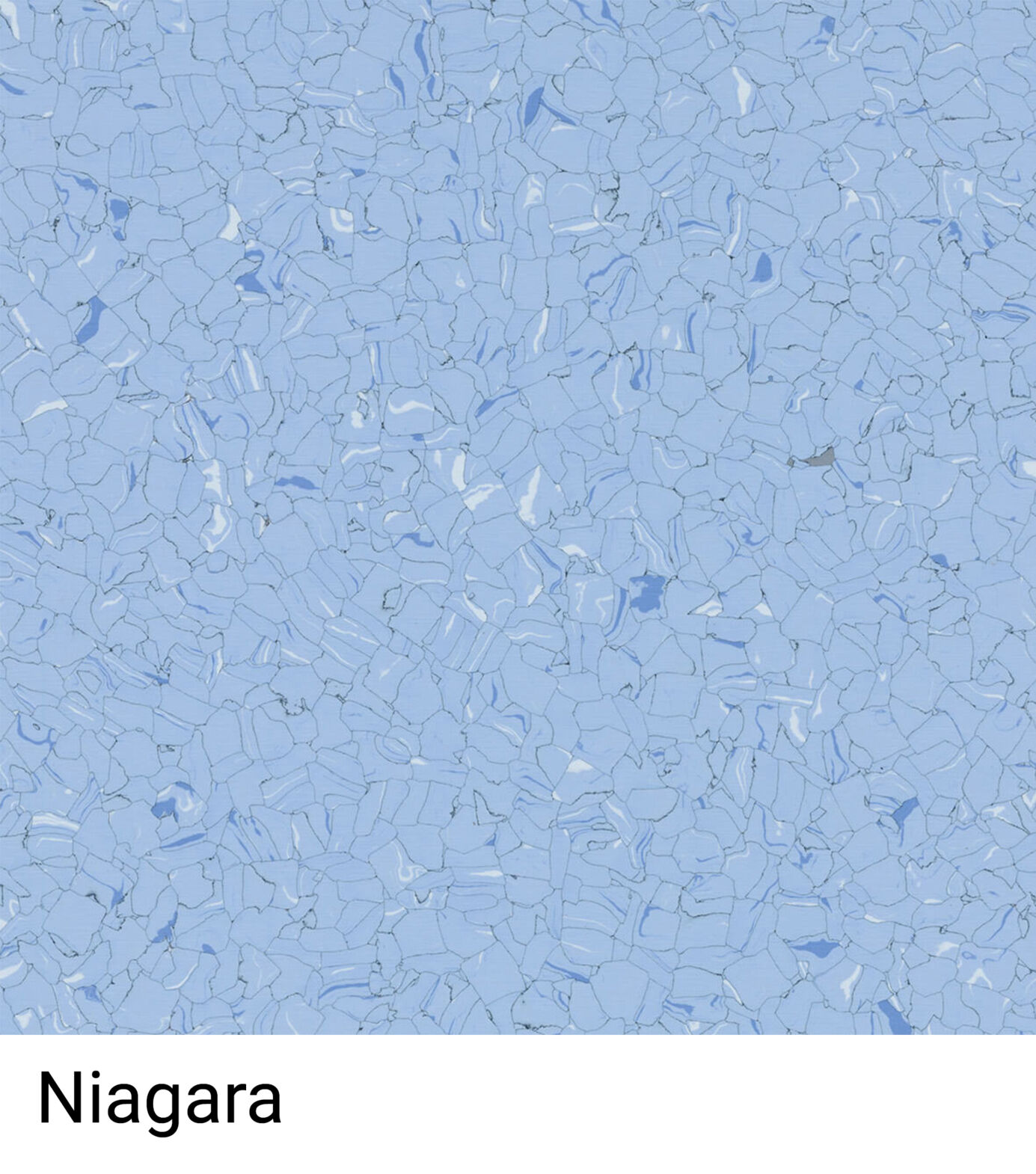

The image displays a homogeneous surface in various shades of blue with fine, irregular patterns. The colors are reminiscent of water or the sky. Below is the inscription "Niagara".
Mobile Preview: The image shows a floor covering made of light, marbled tiles. One tile is slightly shifted and placed over a crack in the substrate. The substrate is gray.
Mobile Preview: The image shows a modern factory hall with high ceilings, blue steel beams, and a bright floor. On the left side are machines and shelves, while a forklift is on the move.
Mobile Preview: The image shows a rectangular, black rubber mat with a textured, honeycomb-like pattern. The edges have connectors to join multiple mats together.
Mobile Preview: Image
Mobile Preview: The image shows a bright, textured surface with many small, irregular shapes and lines that appear to be randomly arranged. Below is the inscription "Everest".
Mobile Preview: The image shows a bright, almost white surface with fine, irregular gray and black speckles that resemble marble or a mineral coating. Below it is the word "Montblanc".
Mobile Preview: The image shows a bright, gray surface made up of many small, irregular, and shiny particles. These are arranged in various shades of gray. Below it reads "Adula".
Mobile Preview: The image shows a structured, gray surface with small, irregular, lighter speckles. Below is the word "Quartz". The colors are subtle and harmonious.
Mobile Preview: The image displays a homogeneous surface in various shades of blue with fine, irregular patterns. The colors are reminiscent of water or the sky. Below is the inscription "Niagara".
Notice / Inquire

Colorex Plus EC interlocking system

dpvlink:
13999
Width :
607 mm
Length :
607 mm
Thickness :
10.3 mm
Properties:
forbo ESD flooring solutions
Further product information

Minimum order:
9,21 MTK
chevron-down
Unknown delivery time:
108,90 EUR

excl. 19% tax

9.21 MTK
Compare Compare
Notice / Inquire
Product Info

Colorex Plus EC interlocking system

The Colorex Plus EC by Forbo, a high-quality flooring solution, is ideally suited for floor renovations in industrial environments without disrupting operations. This flooring can be laid loose without adhesives, is immediately walkable, and can be used on problematic substrates thanks to its honeycomb structure. The combination of a conductive, compact, and pore-free surface with the flexible dovetail connection system allows for quick and efficient installation.
Technically, the flooring is characterized by a smooth surface and a total thickness of 10.3 mm. It is suitable for both commercial (Class 34) and industrial applications (Class 43). Each tile measures 607 x 607 mm and covers an area of 0.3684 m², with a surface weight of 12 kg/m². The fire class Bfl - s1 indicates low flammability material. Slip resistance is rated R9 for dry surfaces and GS1 for wet surfaces.
Additionally, the product offers high chemical resistance and is suitable for use in cleanrooms up to class ISO 2, highlighted by low emissions and particle emissions. The electrical resistance and system resistance with ESD shoes are in the safe range for electrostatically sensitive environments. With a recycling content of up to 95% in the backing construction, Colorex Plus EC also contributes to sustainable construction projects.
Width
Width
607 mm
Length
Length
607 mm
Thickness
Thickness
10.3 mm
Fire behavior
Fire behavior
hardly inflammable
Fire class
Fire class
Bfl – s1
ISO according to 14644-1
ISO according to 14644-1
2
Bleeder resistance
Bleeder resistance
2.5 x 104 - 1 x 106 Ω
ESD
ESD
yes
PU
PU
5 piece
forbo ESD flooring solutions
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a spool with white, thin wire or cord. The spool has a black edge and an opening in the center from which the cord is being unwound.
Welding wire for ColoRex SD + EC
Welding wire for ColoRex SD + EC coverings
Reel with 100 lfm
Color: matching the flooring
dpvlink
14131

82,90 EUR
Show product
The image shows a roll of tape in a copper-colored shine. The roll has an inner diameter made of cardboard and is smooth. On the inside, various geometric patterns are depicted.
Copper tape, self-adhesive
Copper tape, 19 mm x 50 m,
self-adhesive (++adhesive conductive++)
dpvlink
3213

44,50 EUR
Show product
The image shows a yellow device on a wall. It features a warning symbol and is connected to a green cable. Below it, a copper strip runs along the ground.
Grounding connection set for floor coverings...
Grounding connection set for floor coverings
with test point / 4 mm socket, cable length
approx. 3m (wall mounting)
dpvlink
8024

20,10 EUR
Show product
The image shows a roll of tape. The roll has a round core and is gray on the outside, with a smooth, visible surface.
Aluminium tape, self-adhesive
Aluminium tape, 50 mm x 50 m,
self-adhesive
dpvlink
3213

22,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Colorex PLUS EC interlocking system

Systematic floor renovation

To avoid costly production stoppages due to floor renovation, Colorex Plus EC interlocking system tiles are laid loose during operation and can be walked on immediately. They offer outstanding material properties - from permanent high conductivity to the compact, extremely resilient and non-porous Colorex surface.

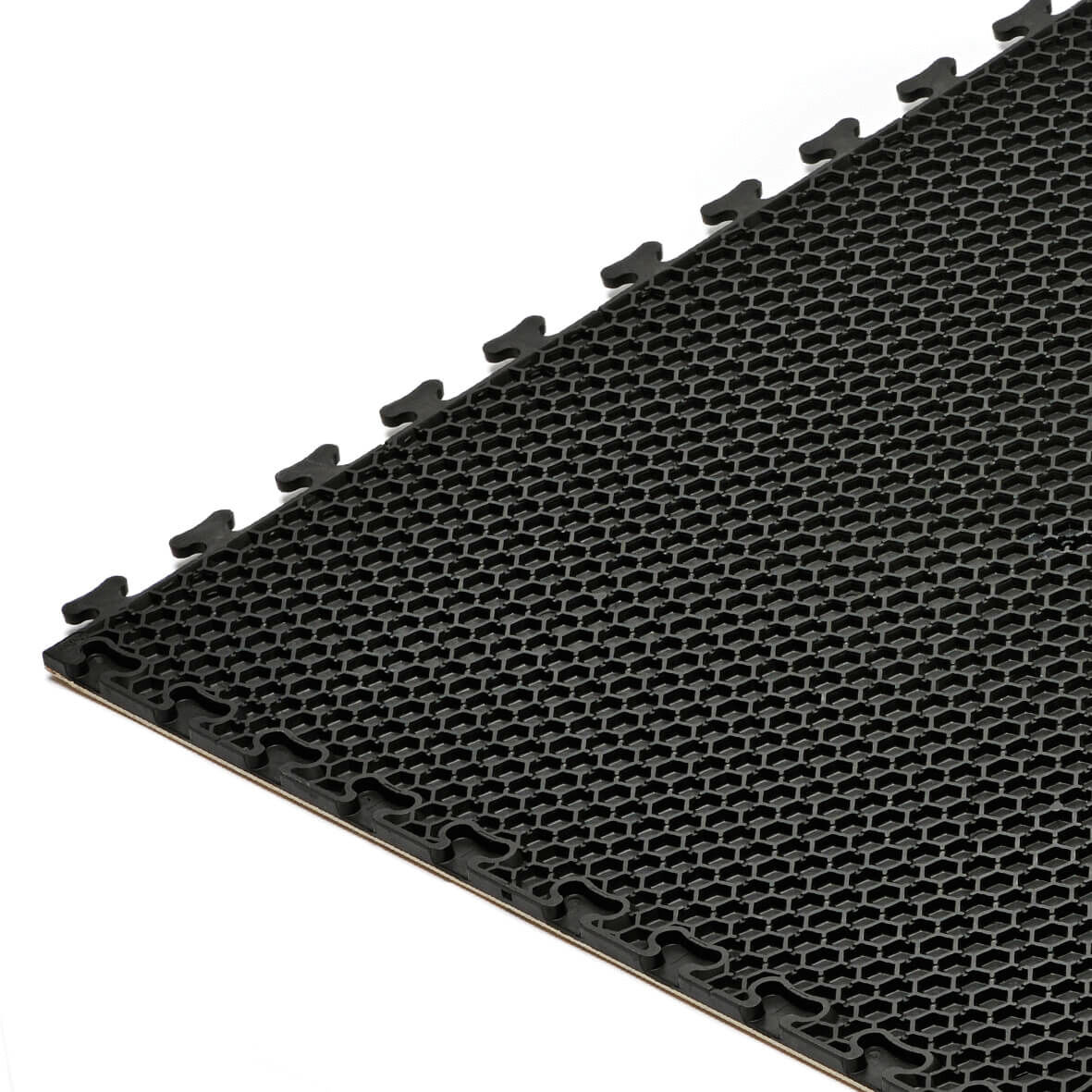

Thanks to the innovative honeycomb structure on the back, the flooring can be laid on problematic surfaces. The individual components are joined together by a concealed interlocking system and combine all Colorex properties, including a bleeder resistance of 5 x 104 - 1x 106 Ω. It is suitable for installation on floors with residual moisture. Discover now.

Advantages of Colorex PLUS EC

  • Loose installation - The interlocking system enables loose installation and saves time-consuming preparation measures
  • Suitable for ESD and cleanrooms - The material construction ensures constant conductivity and is emission-free
  • 100% restorable - Any type of damage can be removed without leaving a trace and without affecting the original properties
  • Resilient - Excellent resistance to dynamic and mechanical stresses
  • Chemical resistant - Excellent resistance thanks to high uniform compaction

Highly conductive and flexible flooring system

Colorex Plus EC is the highly conductive solution for maximum safety in preventing electrostatic charges and meets the latest international standards. The flooring has an earth bleeder resistance of 5 x 10 4 -1 x 10 6 Ω and is suitable for grounding people via the man-shoe-floor system (IEC 61340-4-5) to protect electronic components and equipment from personal discharges. The conductive vinyl puzzle tiles of the Colorex Plus EC ESD flooring system are particularly suitable for ESD areas, operating theaters/intensive care units, cleanrooms, explosion-proof rooms and for use in the electrical and pharmaceutical industries.

Properties of the floor covering

Constant conductivity over the entire service life

The unique material construction of Colorex SD ensures constant conductivity over the entire service life of the flooring, regardless of humidity and temperature. In combination with suitable footwear, Colorex EC conducts charges safely through the vein network. Colorex SD not only safely dissipates the charge generated by people, but also reduces the charge at the interface between the sole of the shoe and the floor. This floor meets all ESD standards

Cleanroom suitability

In microelectronics cleanroom environments, even the finest air particles can cause contamination. The consequences are pre-damage and loss of input. As a highly compressed material with a non-porous surface, Colorex SD meets the highest requirements for particle emission behavior and helps to reduce contamination by molecular airborne particles.

Germ and particle-free surface

Meets the highest hygiene requirements thanks to the antimicrobial, compact and non-porous surface. The floor is also characterized by very good resistance to disinfectants.

Resilient

The high-pressure pressed construction is extremely hard-wearing, resistant to high point loads and resistant to static and dynamic loads. It also has excellent chemical resistance.

100% restorable and repairable

Deep and long scratches, holes and burns can be removed effectively and without a trace, without impairing the original properties of the flooring. Visible damage can be repaired by thermal material-in-material welding. To do this, a strip of the same flooring material is heated and worked directly into the damage. After grinding and polishing the repaired area, a homogeneous appearance is restored. Dangerous impurities caused by radionuclides can be removed without leaving any residue.

Care and value retention

Loose dirt can be removed by vacuuming or damp mopping with impregnated disposable cloths. Alternatively, the floor can be spray-cleaned using a single-disc machine with a red pad and spray device with a neutral and wax-free cleaning solution. Clean large areas with a suitable scrubbing machine. Clean the edges manually.



Colorex starts where others stop

Colorex is manufactured using a special production technique. This process gives the material an extremely high and uniform density.

Step 1: Shredding and conductive coating

The sheet material is cut into individual, small “chips”. These are then coated with a conductive substance.

Advantage

  • Constant conductivity over the entire service life
  • The individual coated chips work as “conductor tracks” and guarantee constant conductivity over the entire service life of the flooring, regardless of the humidity and temperature.

Step 2: High-pressure pressing process

The conductive chips are pressed into thick blocks of material under extremely high pressure and temperature.

Advantage

  • High load capacity
  • The chips pressed under high pressure form a perfect, homogeneous material composition that can easily withstand high mechanical and dynamic loads over the long term.

Step 3: Splitting and mechanical surface treatment

The homogeneous, pressed blocks are then cut into individual 2.0 mm thick plates.

Advantage

  • Can be repaired/rehabilitated, resistant to chemicals
  • Cutting the homogeneous slabs enables complete repairability without visual and functional impairment of the floor and - thanks to the highly compacted surface - excellent chemical resistance

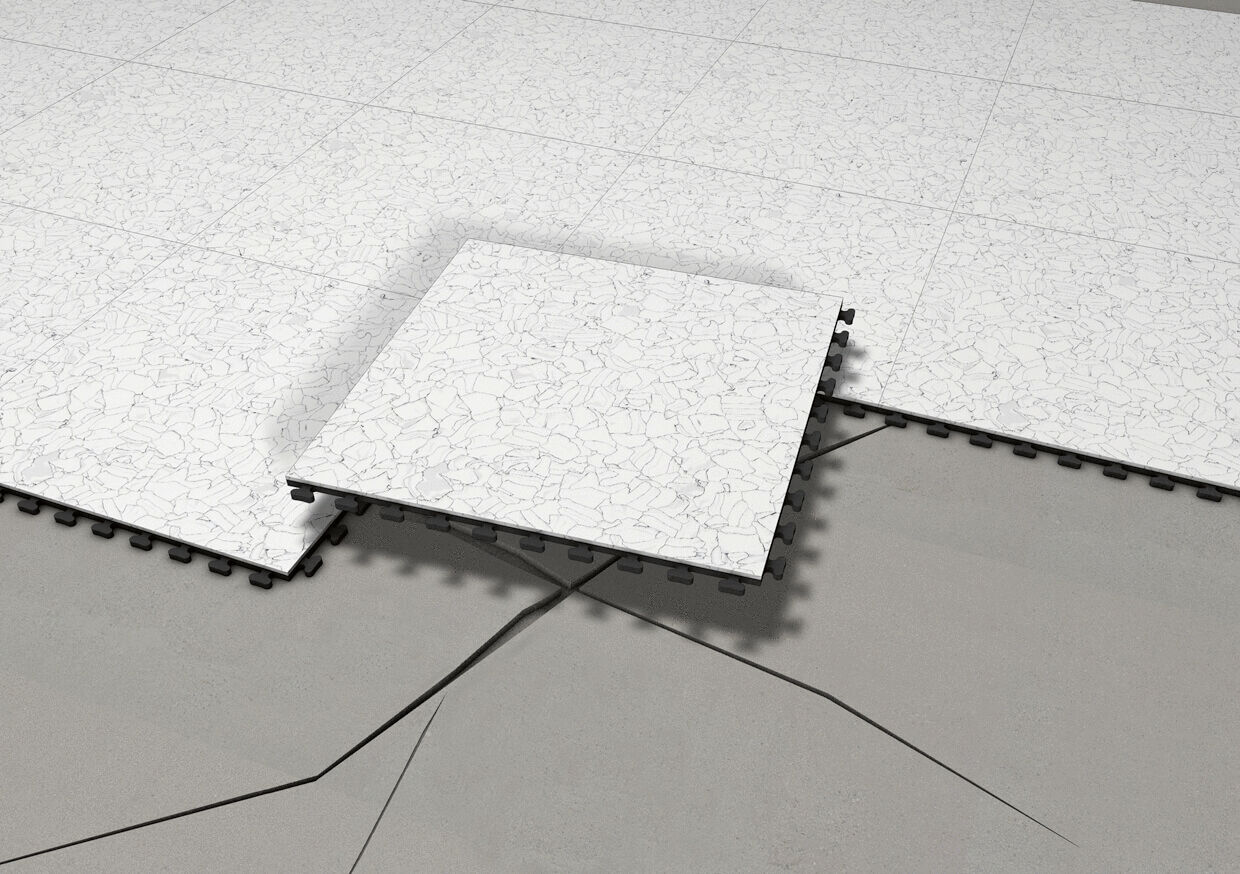

The system for loose laying

Colorex Plus was developed to optimize time-consuming and cost-intensive floor renovations in industrial companies. This is because Colorex Plus is laid loose during operation and can be walked and rolled on immediately. Thanks to the innovative honeycomb structure on the back, Colorex Plus can be laid on problematic substrates. The individual components are firmly bonded together using a concealed dovetail system and combine all Colorex properties, including permanent conductivity. In addition to this advantage, the floor covering also scores points with its extremely resilient, non-porous and easy-to-clean surface.

The special interlocking system ensures a uniform appearance when laid. Its patented structure ensures electrical conductivity even when laid loose. In combination with the Colorex EC surface, the result is a continuously conductive system with the unique advantages of a compact, resistant surface that also offers a high degree of flexibility. This is because the interlocking joint enables loose laying on any floor surface. Thanks to the honeycomb structure with rear ventilation effect, Colorex Plus EC is also suitable for laying on subfloors with residual moisture.

Technical data

CE sign

EN 14014

conform

Surface



smooth

Total thickness

EN ISO 24346

2.0 mm

Trade class

EN ISO 10874

34 very strong

Industrial class

EN ISO 10874

43 strong

Size (without dovetails)

EN ISO 24342

615 x 615 mm

Surface weight

EN ISO 23997

3.2 kg/m²

Plate weight



4.6 kg

Fire behavior

EN 13501-1

Bfl -S1, G, CS

Thermal conductivity

EN 12524

0.25 W/(m·k)

Slip resistance

DIN 51130
(dry surfaces)

R9



bfu/bpa/upi R 9729
(humid surfaces)

GS1

Resistance to castor wheels

ISO 4918

suitable type W

Thermal dilation coefficient



0.07 mm/m°C

Electrical bleeder resistance

IEC 61340-4-1

1 x 106 ≤ R ≤ 108 Ω



ESD STM7.1



Insulation resistance

DIN VDE 0100

≥ 50 kΩ

Electrical system resistance with ESD shoes

IEC 61340-4-5

R ≤ 1 x 109 Ω



ESD STM97.1



Walk-on charge with ESD shoes (typical value)

IEC 61340-4-5

< 100 V ~ 40 V



ESD STM97.2



Dimension stability

EN ISO 23999

≤ 0,05%

Residual indentation behavior (typical value)

EN ISO 24343-1

≤ 0.10 mm ~ 0.02 mm

Impact sound improvement

EN ISO 140-8

2 dB

Light fastness

EN ISO 105-B02

≤ 6

Resistance to load
(deviations possible, depending on local conditions)

Lift trucks and forklift trucks: Total weight up to 2.5 t and with pneumatic tires 5 t; Static: 50 kg/cm³ - Dynamic 90 kg/cm³

Chemical effects

EN ISO 26987

very good

Cleanroom emissions

IDEMA M11-99

total < 1 μg/cm2

Cleanroom particle emissions

IDEMA 14644-1

ISO 4

Recycling part

up to 95% recycled content in the back construction
